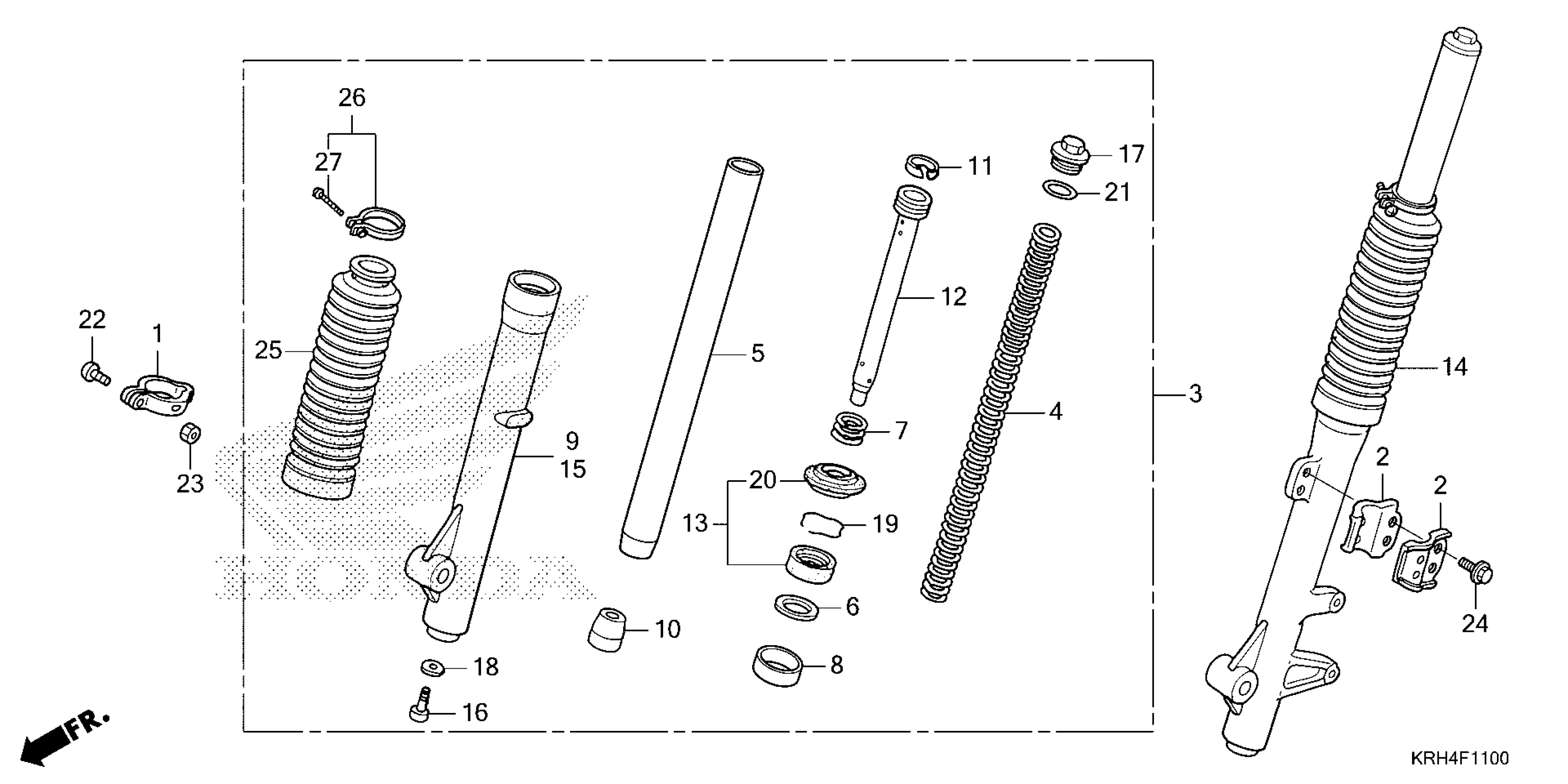

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-KRH-900

$4.61

2

CLAMP A, BRAKE HOSE

45461-KRH-900

$7.02

3

FORK ASSY., R. FR.

51400-K79-E01

$497.61

4

SPRING, FR. FORK

51401-K79-E01

$57.69

5

PIPE, FR. FORK

51410-KRH-781

$89.49

6

WASHER, OIL SEAL (CHUANNAN ABSORBER)

51412-GGC-901

$5.72

7

SPRING, REBOUND

51413-KRH-901

$10.02

8

GUIDE, FR. FORK (CHUANNAN ABSORBER)

51414-GFM-J11

$9.82

9

CASE, R. (LOWER)

51420-K79-E01

$186.85

10

PIECE, OIL LOCK

51432-KRH-901

$10.93

11

RING, PISTON

51437-KRH-901

$6.31

12

PIPE, SEAT

51440-K79-E00

$25.03

13

SEAL SET, FR. FORK

51490-KRH-901

$19.87

14

FORK ASSY., L. FR.

51500-K79-E01

$497.61

15

CASE, L. (LOWER)

51520-K79-E01

$186.85

16

BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)

90116-KRF-H71

$3.78

17

BOLT, FR. FORK

90123-KRF-H71

$16.92

18

WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)

90544-KRF-H71

$2.02

19

RING, OIL SEAL STOP

90651-KRH-781

$4.74

20

DUST SEAL

91254-KRH-901

$10.04

21

O-RING (22X2.8) (CHUANNAN ABSORBER)

91351-KRF-H71

$2.92

22

SCREW, PAN (5X18)

93500-05018-0G

$1.49

23

NUT, HEX. (5MM)

94001-05070-0S

$1.49

24

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

25

BOOT, FR. FORK

51611-KRH-781

$36.84

26

BAND, FR. FORK BOOT (CHUANNAN ABSORBER)

51612-KTJ-C00

$10.97

27

SCREW, PAN (3X20)

93500-03020-0G

$1.49
