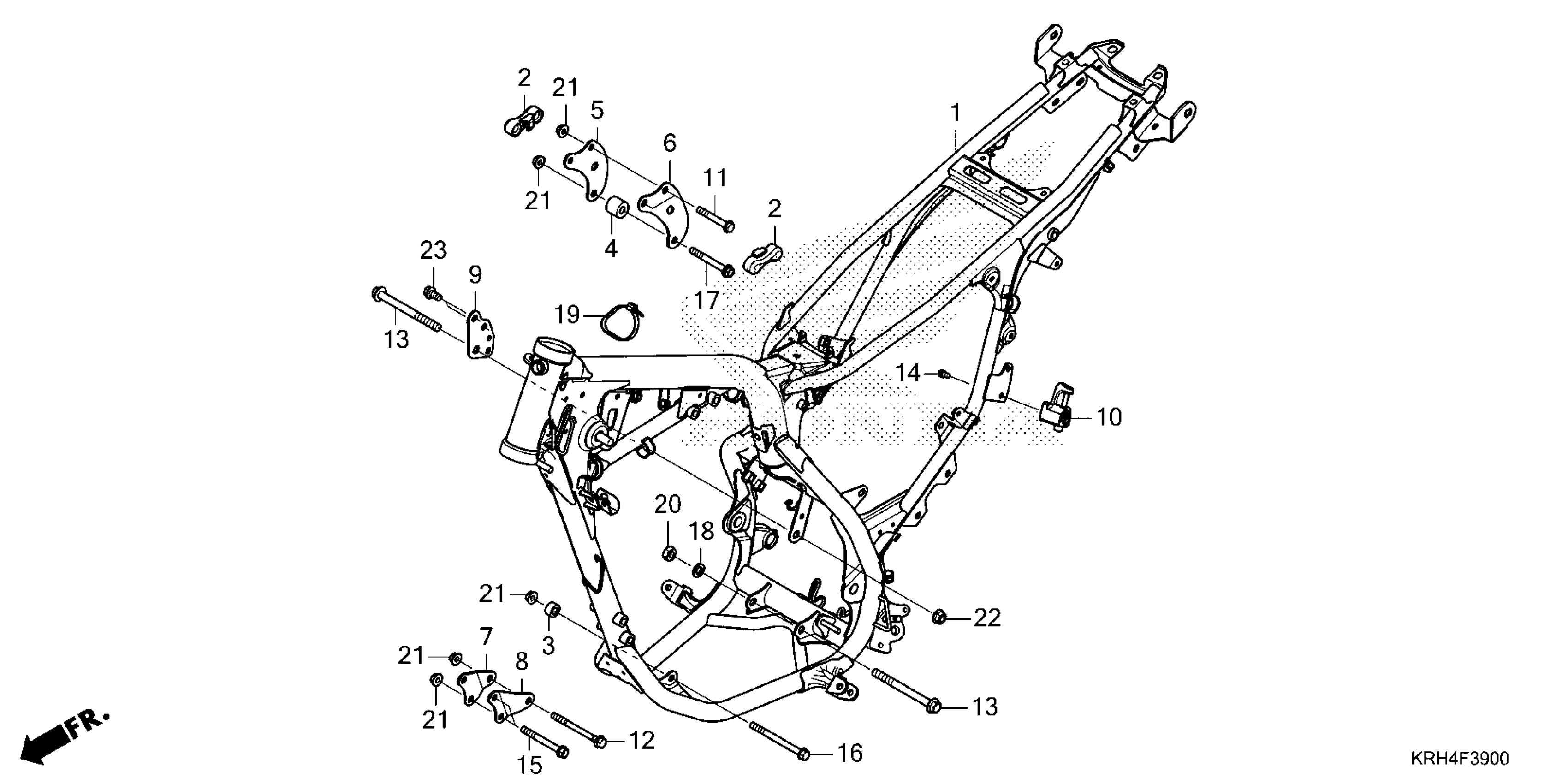

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 FRAME Diagram

FRAME COMP, P *NH1* This part replaces 50100-KRH-J00ZA.

50100-KRH-J01ZA

$1.00

FRAME COMP, P *NH1*

50100-KRH-J01ZA

$1.00

RUBBER, TANK GUARD

50212-KRH-900

$3.97

COLLAR, ENGINE MOUNT

50318-KRH-780

$3.20

COLLAR, ENG HGR MT

50320-KRH-780

$8.23

PLATE, R. ENGINE HANGER (UPPER)

50522-KRH-780

$17.13

PLATE, L. ENGINE HANGER (UPPER)

50532-KRH-780

$17.13

PLATE, R. FR. ENGINE HANGER

50533-KRH-900

$9.21

PLATE, L. FR. ENGINE HANGER

50534-KRH-900

$8.67

PLATE, R. RR. ENGINE HANGER (UPPER)

50537-KRH-J00

$8.82

HOLDER ASSY., HELMET

50710-KWV-003

$34.08

BOLT, FLANGE (8X56)

90102-KRH-900

$3.15

BOLT, FLANGE (8X88)

90103-KRH-900

$4.39

BOLT, FLANGE (10X110)

90105-KRH-900

$5.46

BOLT, BREAK OFF

90114-KRH-900

$2.59

BOLT, FLANGE (8X73)

90154-KB7-700

$20.75

BOLT, FLANGE (8X96)

90156-KK6-000

$9.98

BOLT, FLANGE (8X72)

90156-KRH-780

$3.92

WASHER (10MM)

90510-KRH-900

$2.36

BAND, WIRE

90651-KRH-900

$1.49

NUT, HEX. (10MM)

94030-10200

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
