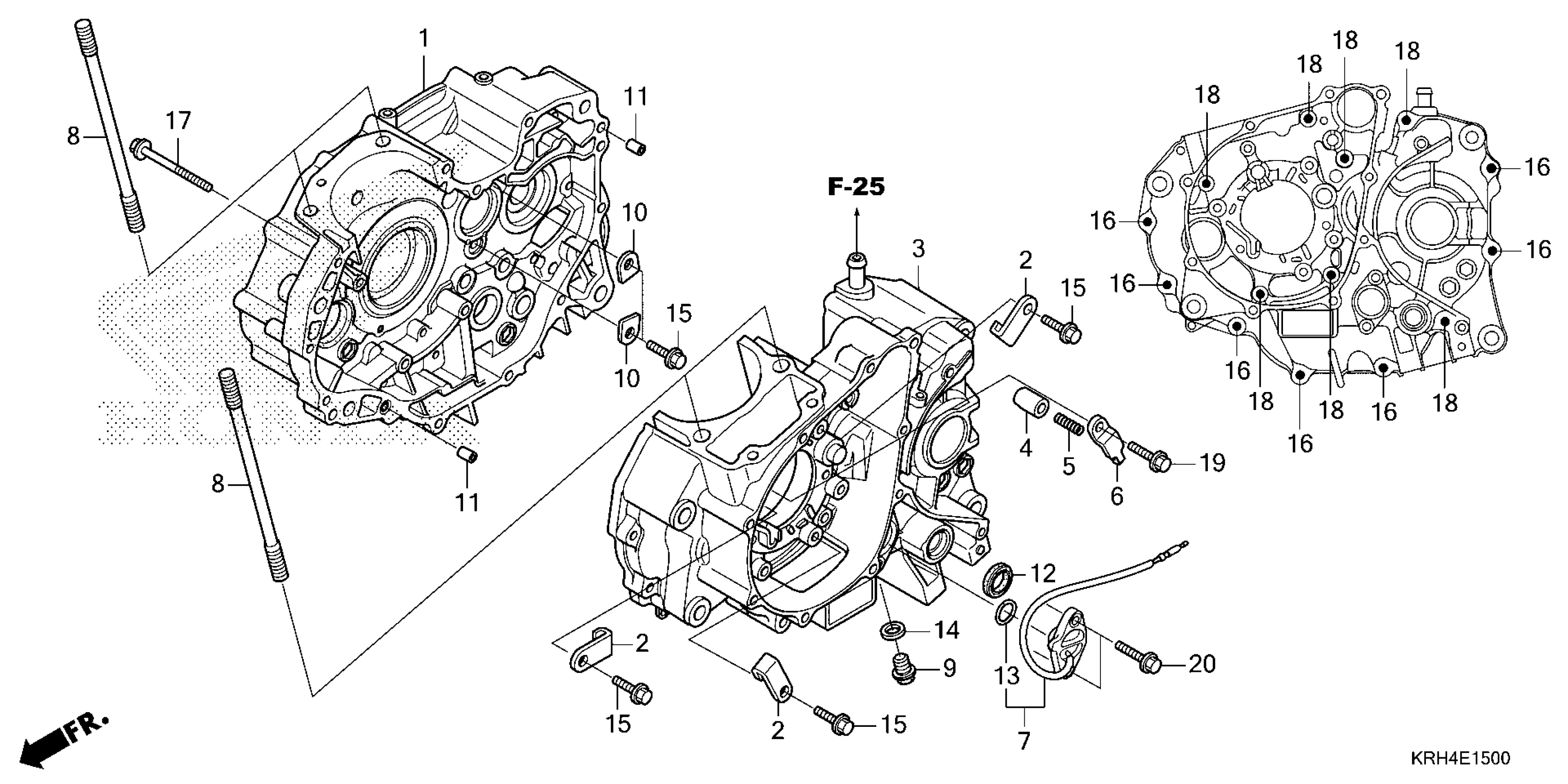

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 CRANKCASE Diagram

CRANKCASE, R.

11100-KRH-650

$264.84

PLATE, L. BEARING SETTING

11108-KTT-900

$18.18

CRANKCASE, L.

11200-KRH-650

$299.97

PLUG, BEARING PUSH

11215-KRM-840

$2.38

SPRING, BEARING PUSH

11216-KRM-840

$1.49

PLATE, BEARING PUSH

11217-KRM-840

$11.84

SWITCH SET, NEUTRAL

35750-KYE-900

$17.15

BOLT, CYLINDER STUD (8X140)

90031-KTT-900

$3.14

BOLT, DRAIN PLUG (12MM)

90131-KRM-840

$1.75

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

OIL SEAL (14X22X5) (ARAI) This part replaces 91203-KSP-910.

91203-KSP-911

$1.98

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

OIL SEAL (14X22X5)

91203-KSP-913

$5.98

O-RING (19.4X2.3)

91305-KPH-900

$1.49

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
