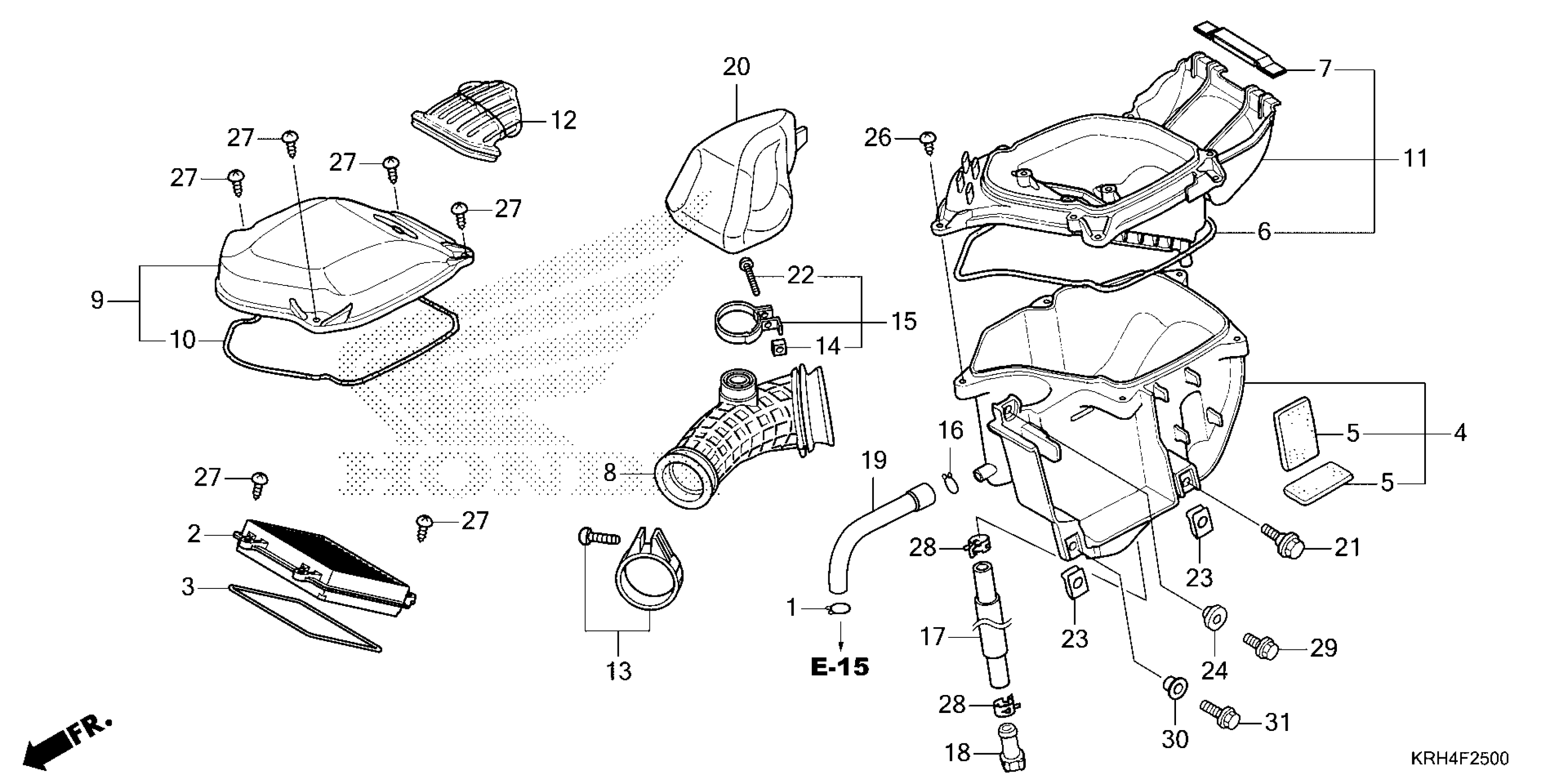

Honda XR150LEAC (23) MOTORCYCLE, MEX, VIN# 3H1KD131-PD000001 TO 3H1KD131-PD099999 AIR CLEANER Diagram

CLIP, TUBE

15772-KVC-900

$3.23

ELEMENT COMP, AIR/C This part replaces 17211-KRH-780.

17211-KRH-781

$22.13

SEAL, SEPARATOR

17214-KRH-780

$5.03

CASE SUB-ASSY., AIR CLEANER

17215-KRH-J00

$92.05

SPACER B, BATTERY

17217-KRH-900

$3.33

SEAL, AIR CLEANER

17219-KRE-900

$6.02

RUBBER, AIR CLEANER

17221-KRH-J00

$8.02

TUBE, AIR CLEANER CONNECTING

17222-KRH-650

$35.64

COVER SUB-ASSY., AIR CLEANER

17225-KRH-A00

$26.25

SEAL, AIR CLEANER (DIRTY)

17229-KRE-900

$4.07

SEPARATOR SUB-ASSY., AIR CLEANER

17235-KRH-J00

$75.23

DUCT, INLET

17240-KRE-900

$26.92

BAND (44)

17256-K01-900

$7.80

NUT, SQUARE (5MM)

17255-KRM-860

$1.49

BAND, AIR CLEANER CONNECTING TUBE (28.5MM)

17256-KRH-650

$4.43

CLIP, BREATHER TUBE

17316-KRH-900

$2.64

TUBE, BREATHER DRAIN

17363-KRH-650

$5.11

PLUG, BREATHER TUBE

17370-419-700

$3.74

TUBE, BREATHER

17373-KRE-850

$8.10

RESONATOR

17410-KRE-B00

$9.48

BOLT, FLANGE (6MM)

90115-KRH-900

$2.87

SCREW, PAN (5X22)

93500-05022-0A

$1.49

NUT, CLIP (6MM)

90311-KRH-900

$1.97

WASHER, CHAIN CASE

90522-KRH-900

$2.02

SCREW, TAPPING (5X16)

93903-25380

$1.49

SCREW, TAPPING (5X25)

93903-25510

$1.49

CLAMP, TUBE (D10.5)

95002-41050-00

$1.85

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

COLLAR, FR.

61101-KRH-900

$2.10

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
