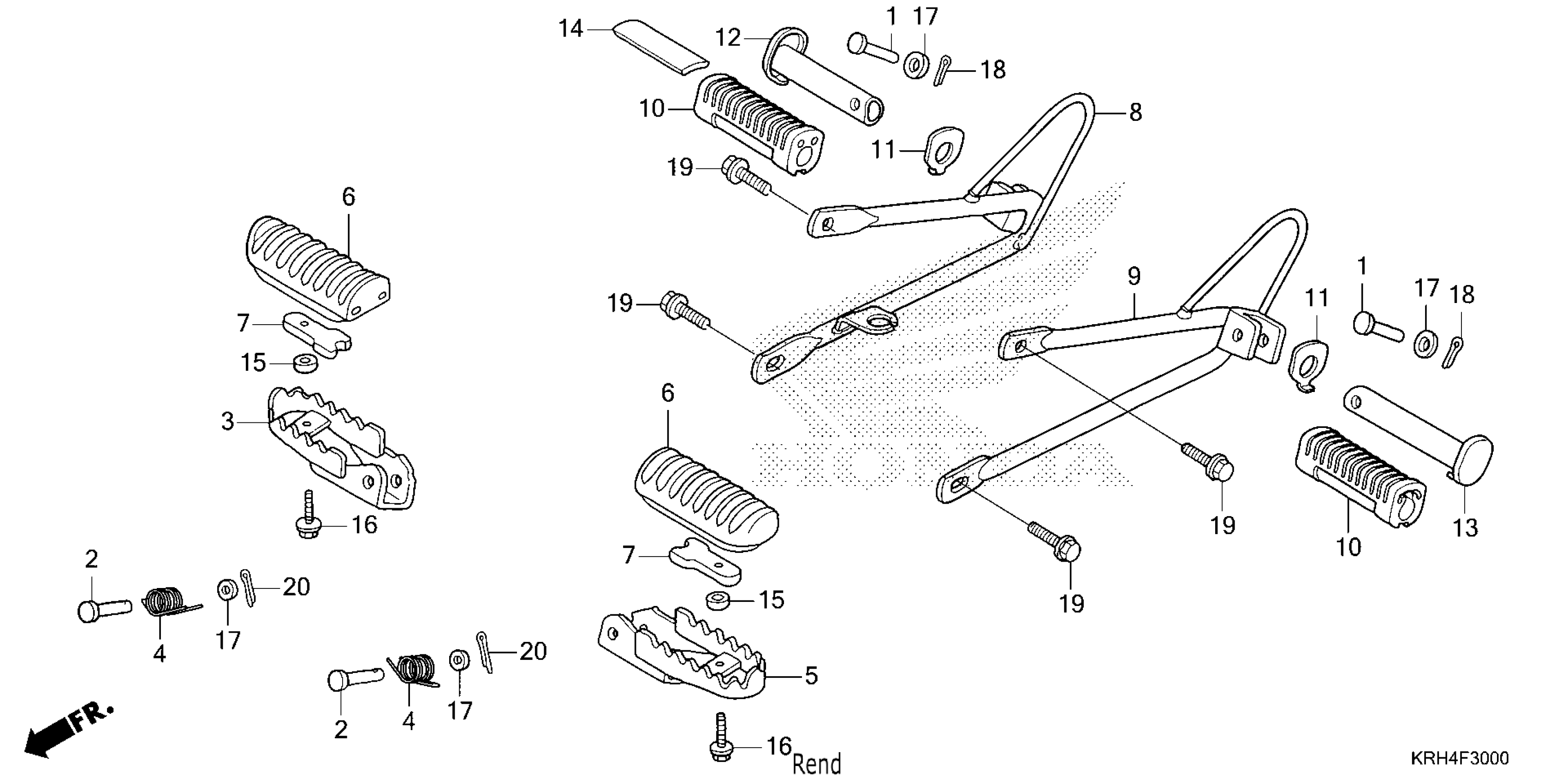

Honda XR150LE2AC (24) MOTORCYCLE, MEX, VIN# 3H1KD131-RD100001 TO 3H1KD131-RD199999 STEP Diagram

Description

Price

50603-KEJ-900

$3.68

PIN, STEP BAR JOINT

50603-KRH-900

$3.36

STEP, R.

50612-KRH-900

$2.70

SPRING, STEP RETURN

50617-KRH-900

$4.66

STEP, L.

50642-KRH-900

$14.59

RUBBER, STEP

50661-KRH-900

$8.03

PLATE

50662-KRH-900

$4.14

BRACKET, R. PILLION STEP

50701-KRH-900

$57.42

BRACKET, L. PILLION STEP

50706-KRH-900

$57.42

RUBBER, PILLION STEP

50710-KGA-940

$24.28

PLATE, PILLION STEP

50712-KRH-900

$2.88

BAR, R. PILLION STEP

50713-KRH-900

$22.93

BAR, L. PILLION STEP

50714-KRH-900

$22.91

WEIGHT, PILLION STEP

50715-KRH-900

$3.38

COLLAR (6.5X4)

52156-KRH-900

$1.91

BOLT, FLANGE (6X14)

90112-GW3-000

$1.84

WASHER, PLAIN (8MM)

94101-08000

$0.75

PIN, SPLIT (2.0X15)

50716-KRH-GD0

$0.39

PIN, COTTER (2.0X15)

94201-20150

$0.94

BOLT, FLANGE (8X18)

95701-08018-00

$1.64

PIN, COTTER (2.0X15)

94201-20150

$0.94
