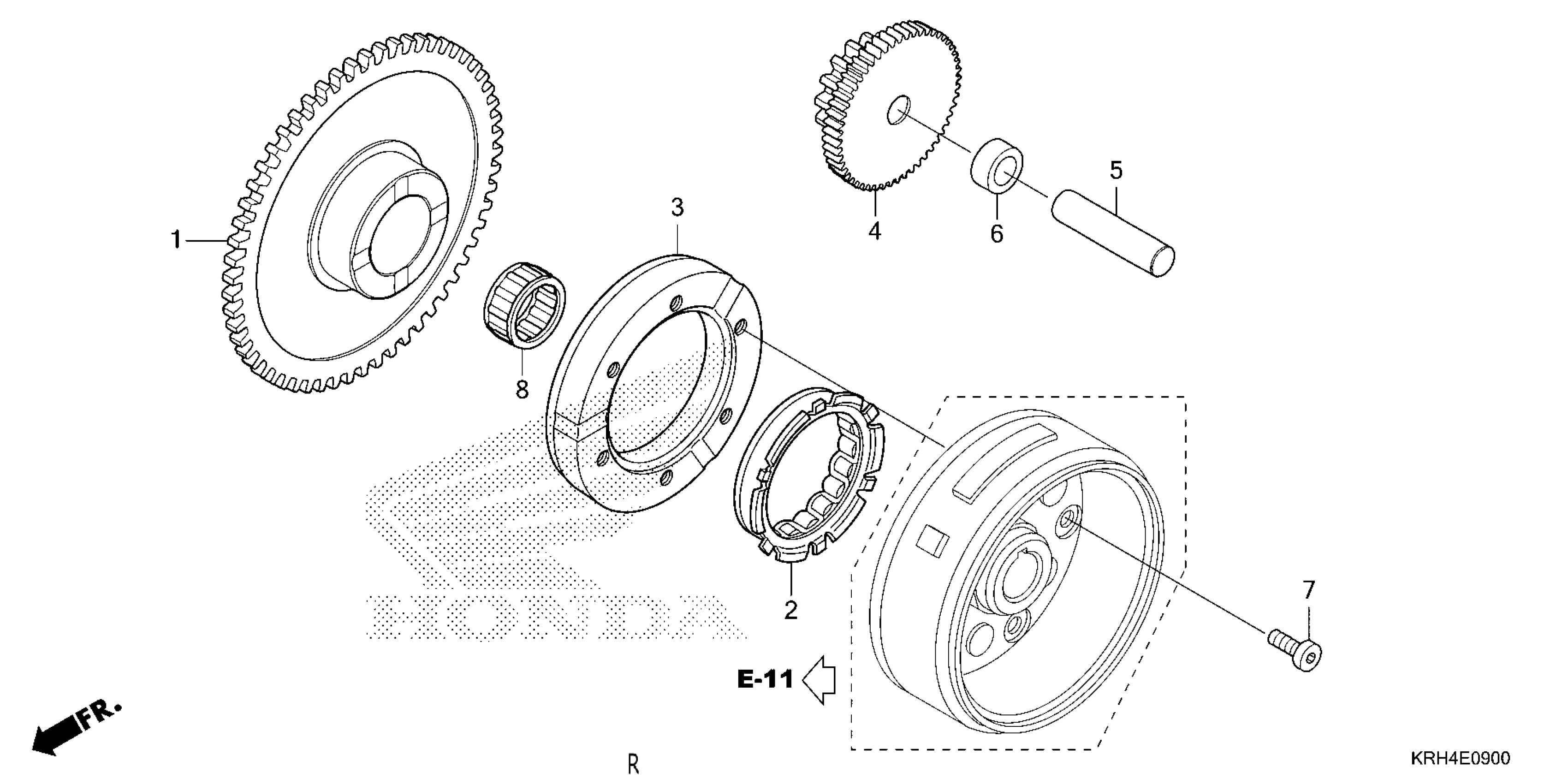

Honda XR150LE2AC (24) MOTORCYCLE, MEX, VIN# 3H1KD131-RD100001 TO 3H1KD131-RD199999 STARTING CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER DRIVEN (58T)

28110-KTT-901

$84.19

2

CLUTCH, ONE-WAY

28120-K09-C01

$51.59

3

CLUTCH OUTER

28128-K79-E00

$70.90

4

GEAR, STARTER REDUCTION (15T/53T)

28131-KTT-900

$47.84

5

SHAFT, REDUCTION GEAR

28132-KN6-930

$10.09

6

COLLAR, STARTER REDUCTION

28133-KRM-850

$0.97

7

BOLT, SOCKET (6MM)

90085-KTT-900

$2.76

8

BEARING, NEEDLE (22X29X16.8) (INA)

91104-KTT-901

$10.10
