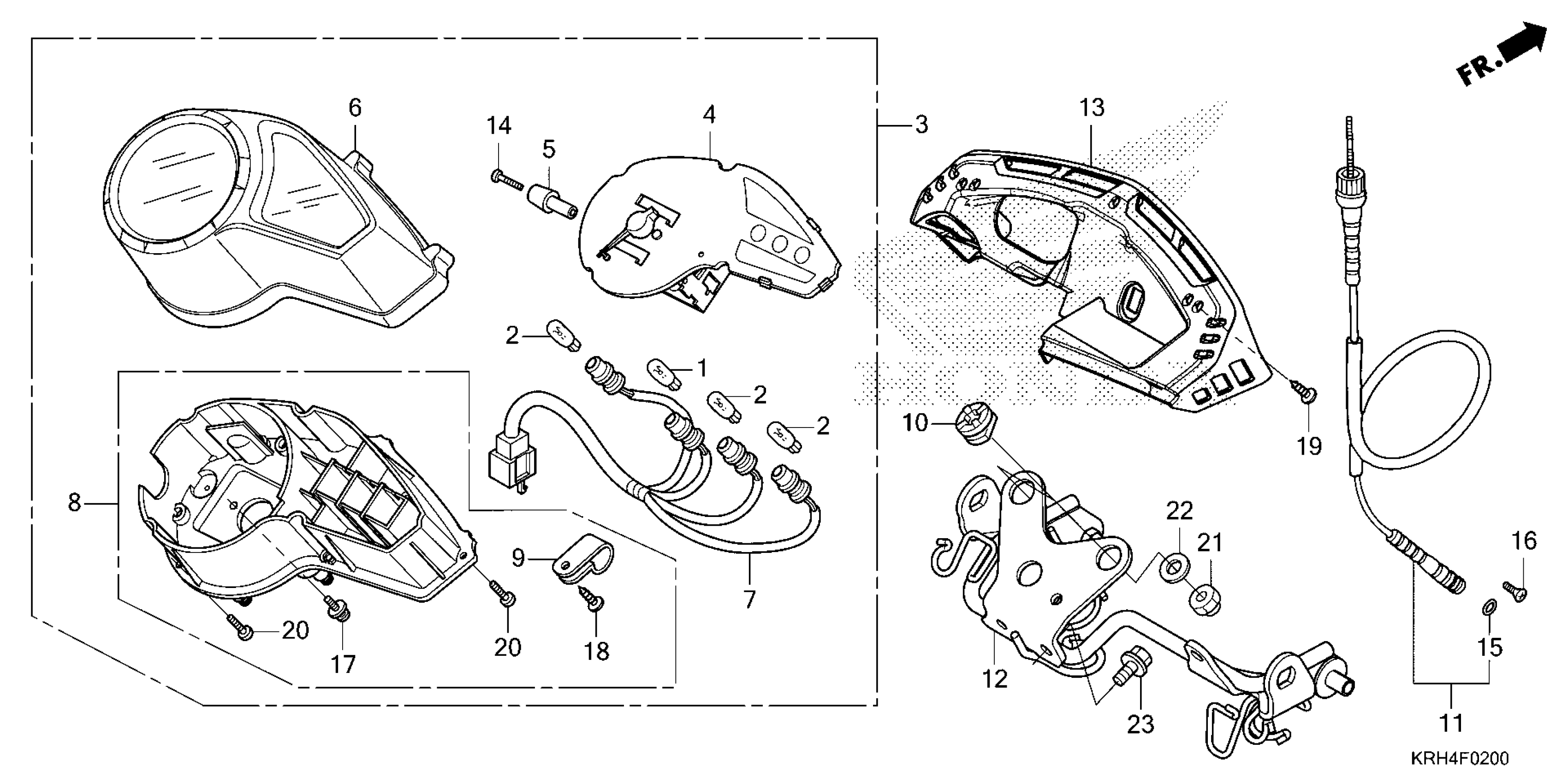

Honda XR150LE2AC (24) MOTORCYCLE, MEX, VIN# 3H1KD131-RD100001 TO 3H1KD131-RD199999 SPEEDOMETER Diagram

#

Description
Price

1

BULB, WEDGE BASE (T10) (12V 3.4W)

34908-KVJ-911

$1.43

2

BULB, WEDGE BASE (T10) (12V 1.7W)

34910-GFM-901

$1.62

3

SPEEDOMETER ASSY. (MPH/KPH)

37200-KRH-J01

$254.26

4

SPEEDOMETER (MPH/KPH)

37210-KRH-J01

$136.69

5

KNOB, TRIP

37213-KRH-901

$7.81

6

CASE ASSY. (UPPER)

37220-KRH-601

$41.31

7

SOCKET

37224-KRH-J01

$60.31

8

CASE ASSY. (LOWER)

37230-KRH-601

$42.94

9

CLAMP

37233-KRH-901

$1.81

10

RUBBER, SPEEDOMETER MOUNTING

37243-MG2-000

$4.02

11

CABLE ASSY., SPEEDOMETER

44830-K79-E01

$16.06

12

STAY, FR. (UPPER)

61311-KRH-J00

$27.69

13

BASE, METER

61318-KRH-J00

$8.97

14

SCREW, PAN (2X6)

90158-KCJ-710

Unavailable

15

O-RING (10X1.5)

91256-KK3-840

$1.68

16

SCREW, OVAL (5X18)

93700-05018-0A

$0.43

16

SCREW, OVAL (5X18) This part replaces 93700-05018-1A.

93700-05018-0A

$0.43

17

SCREW-WASHER (4X10)

93893-04010-08

$1.24

18

SCREW, TAPPING (4X12)

93913-24220

$0.84

19

SCREW, TAPPING (4X12)

93913-24320

$0.81

20

SCREW, TAPPING (4X16) (PO)

93913-24420

$0.84

21

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$2.07

21

NUT, CAP (6MM)

94021-06020

$2.07

21

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.07

21

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.07

22

WASHER, PLAIN (6MM)

94103-06000

$0.91

23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84
