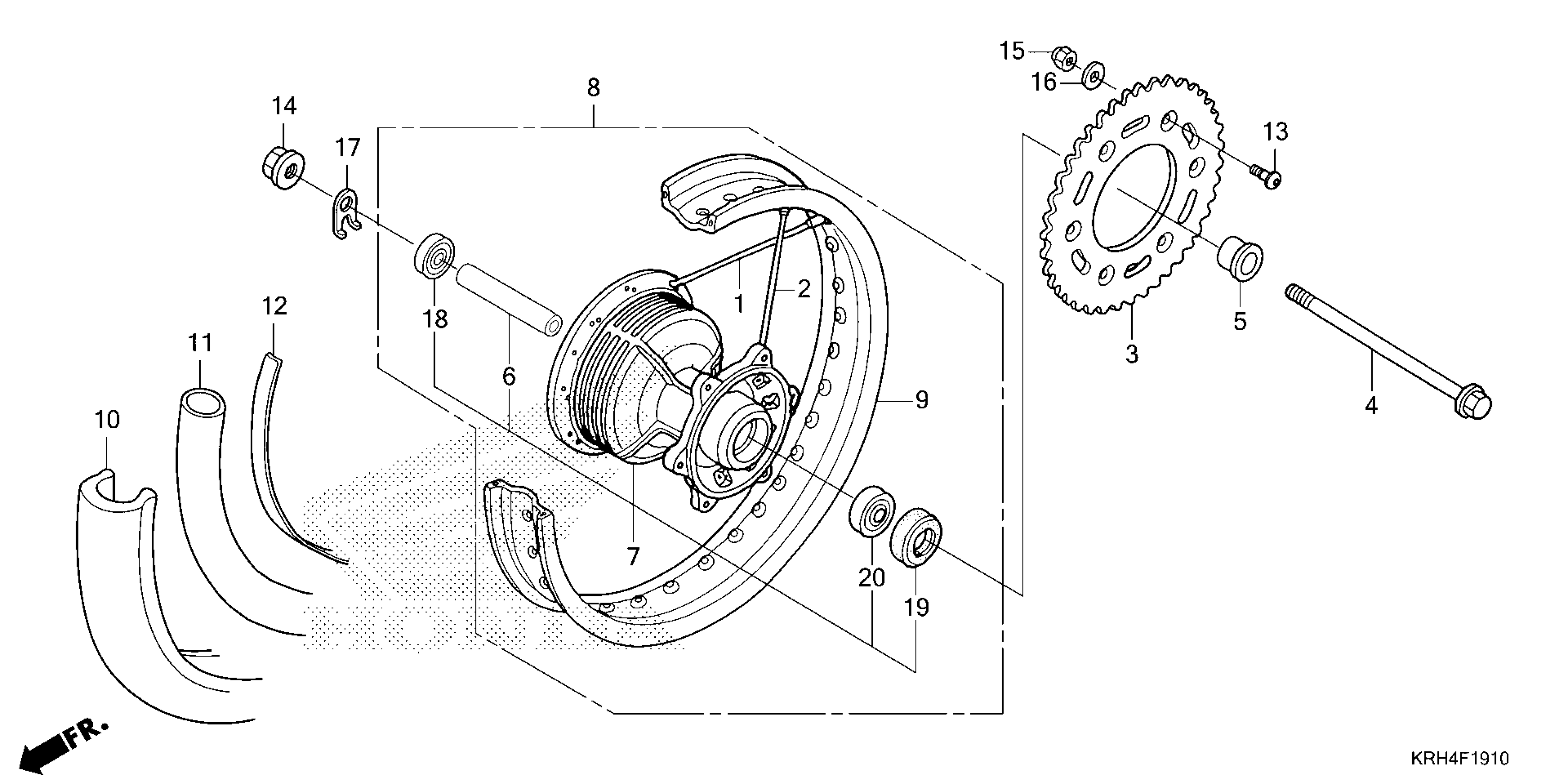

Honda XR150LE2AC (24) MOTORCYCLE, MEX, VIN# 3H1KD131-RD100001 TO 3H1KD131-RD199999 REAR WHEEL Diagram

SPOKE SET A, RR.

06420-KRH-900

$3.57

SPOKE SET B, RR.

06421-KRH-900

$3.26

SPROCKET (49T)

41201-KRH-650

$43.90

AXLE, RR. WHEEL

42301-KRH-900

$23.21

COLLAR, RR. WHEEL

42312-KRH-900

$12.57

COLLAR, RR.

42620-KRH-900

$10.87

HUB SUB *NH364M*

42635-K79-E20ZA

$345.36

WHEEL SUB *NH364M*

42650-KRH-650ZA

$478.30

RIM, RR. (2.15X17)

42701-KRH-900

$82.43

TIRE, RR. (110/90-17 M/C 60P) (CHENG SHIN)

42711-KRH-902

$96.61

TUBE, TIRE

42712-KRH-901

$27.35

FLAP, TIRE

42713-KRH-901

$4.21

BOLT, SPROCKET FIXING

90125-KZJ-900

$1.49

NUT, FLANGE (16MM)

90307-KRH-901

$5.92

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, U (8MM)

90309-KRH-901

$2.26

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

WASHER (8MM)

90511-KRH-780

$1.49

WASHER, RR. AXLE

90559-K79-E00

$7.79

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-KVK-901

$9.60

BEARING,BALL RADI

91053-MAY-003

$29.36

OIL SEAL (25X47X6.5)

91253-033-003

$5.94

BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)

91051-MGZ-J01

$20.43

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$38.32
