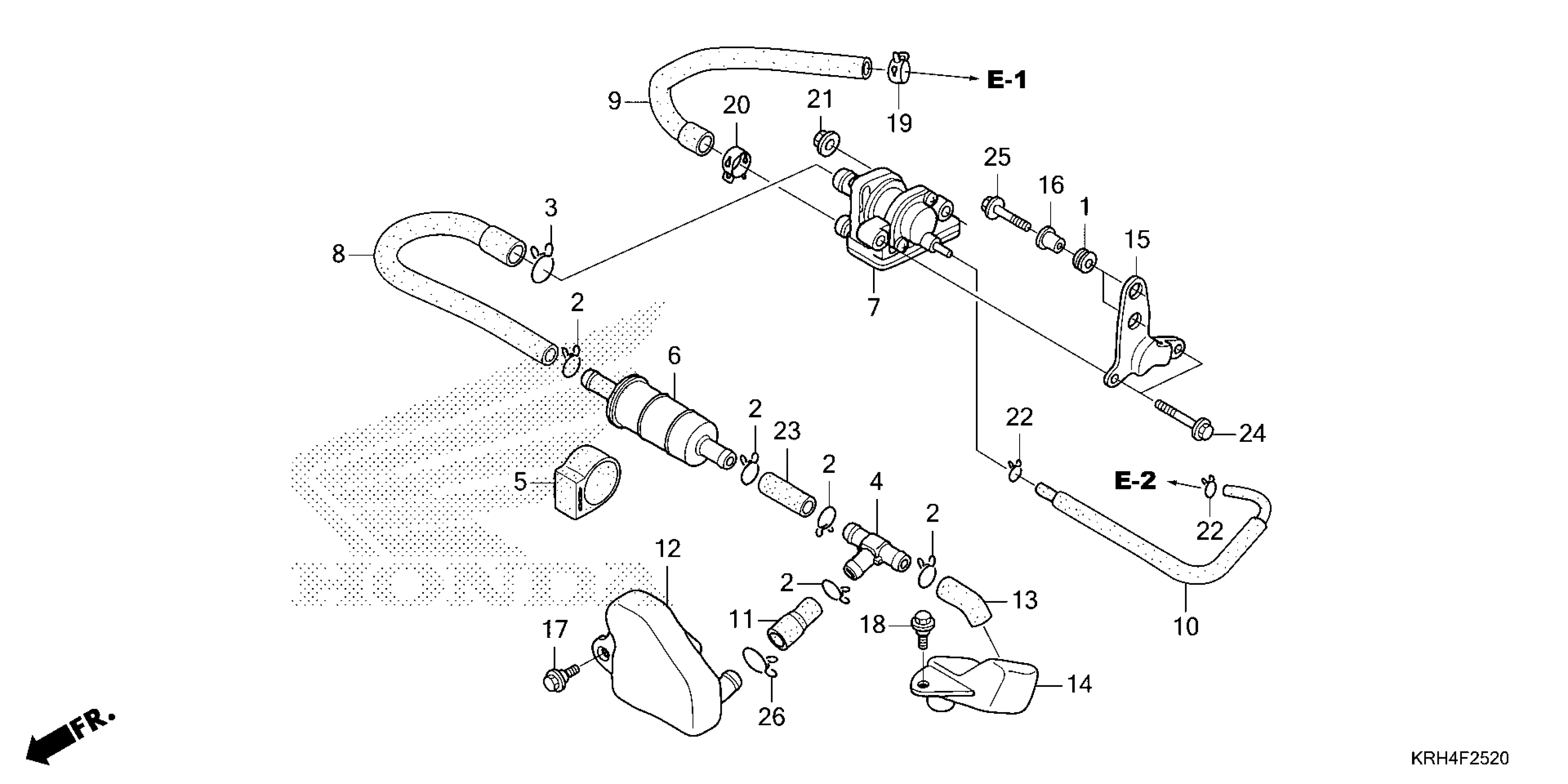

Honda XR150LE2AC (24) MOTORCYCLE, MEX, VIN# 3H1KD131-RD100001 TO 3H1KD131-RD199999 AIR SUCTION VALVE Diagram

GROMMET A, RR. COVER

11344-KRH-900

$1.92

CLIP, TUBE

15772-KRH-G01

$3.23

CLIP, BREATHER TUBE

15772-GW3-980

$2.84

T-JOINT

16180-KRH-901

$7.28

CUSHION, FUEL STRAINER

16905-KRH-900

$4.13

FILTER, AIR

17260-KRH-900

$10.98

VALVE ASSY., AIR SUCTION

18600-KRH-651

$113.18

TUBE, SUCTION

18601-KRH-D20

$4.11

TUBE, REED VALVE

18602-KRH-A00

$5.98

TUBE, AIR SUCTION VALVE CONTROL

18604-KRH-A00

$6.28

TUBE, EXCHANGE

18605-KRH-D20

$1.95

SUB-TANK, RESONATOR

18610-KRH-D20

$19.48

TUBE A, INNLET

18656-KRH-900

$3.57

CASE, WATER INLET

18657-KRH-D20

$17.82

BRACKET, AIR SUCTION VALVE

50543-KRH-A00

$5.33

COLLAR, LOCK SETTING

83119-KRH-900

$2.00

BOLT, FLANGE (6MM)

90101-KRH-900

$2.30

BOLT, FLANGE (6MM)

90110-KRH-900

$2.10

CLIP, HOSE

90678-KRH-900

$1.95

CLAMP, TUBE (D17)

91405-KRH-900

$2.02

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.55

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.72
