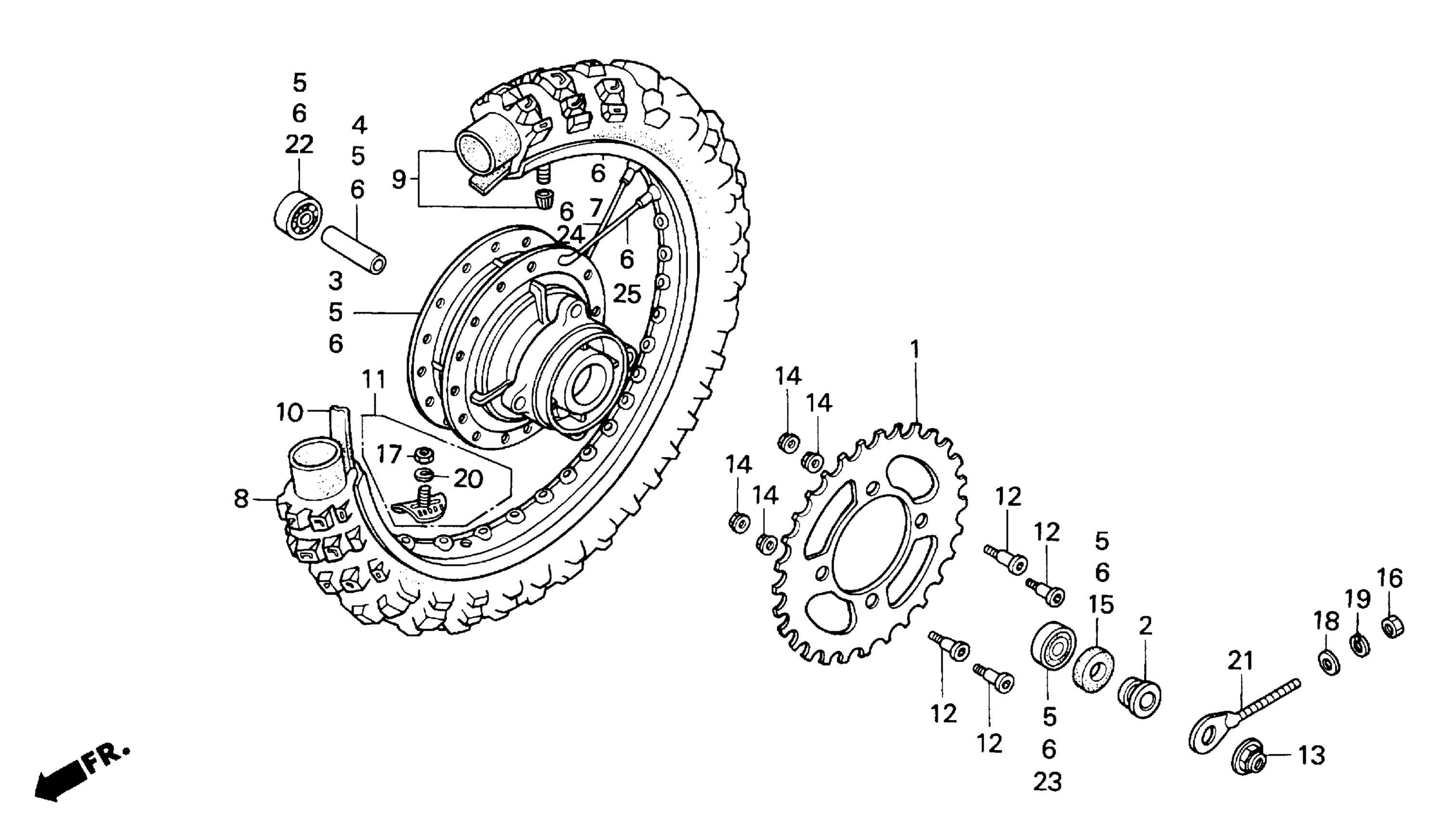

Honda XR100RAC (99) MOTORCYCLE, JPN, VIN# JH2HE031-XK100001 REAR WHEEL Diagram

SPROCKET, FINAL DRIVEN (50T)

41201-KN4-000

$51.15

COLLAR, RR. WHEEL SIDE

42311-GC4-000

$14.79

COLLAR, RR. AXLE DISTANCE

42620-GC4-000

$14.76

HUB SUB-ASSY., RR. WHEEL *NH105* (MAT BLACK)

42635-GN1-A10ZA

Unavailable

WHEEL SET, RR. *NH105* (MAT BLACK)

42650-KN4-305ZA

Unavailable

RIM, RR. WHEEL This part replaces 42701-KN4-003.

42701-KN4-023

$55.84

RIM, RR. WHEEL This part replaces 42701-KN4-013.

42701-KN4-023

$55.84

TIRE, RR. (3.00-16) (4PR/43P M22) (BS)

42711-KA9-671

$101.92

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 42712-167-003.

42712-167-005

Unavailable

TUBE, WHEEL (2.75/3.00-16) (IRC)

42712-167-005

Unavailable

FLAP, TIRE (1.85 X16) (BS)

44713-118-003

$7.20

STOPPER, BEAD (1.60)

44715-MA0-770

$36.80

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

DUST SEAL (21X37X5.5) (ARAI)

90755-GC4-003

$5.05

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49

ADJUSTER S, R. CHAIN (LEFT SIDE)

95014-10010

$4.53

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

SPOKE SET (10X149)

97228-42138-K0

$2.92

SPOKE SET (10X148.5)

97658-42137-K0

$2.92
