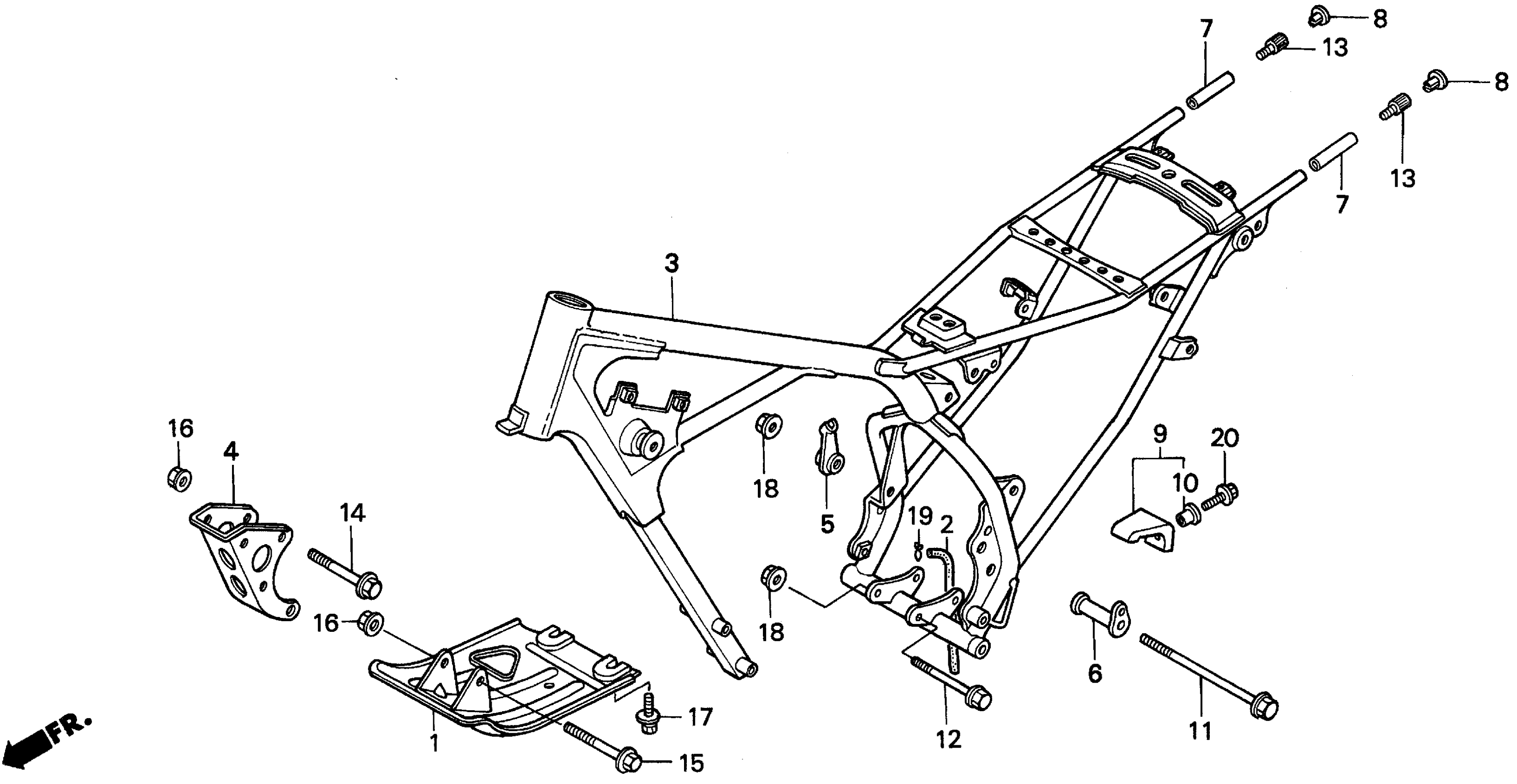

Honda XR100RAC (99) MOTORCYCLE, JPN, VIN# JH2HE031-XK100001 FRAME Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE

11911-GN1-680

$61.88

3

FRAME *NH138* (SHASTA WHITE) FRAME *NH146M*

50100-KN4-L10ZA

$444.85

4

STAY, FR. *NH138* This part replaces 50127-GN1-000ZB.

50127-GN1-010ZB

Unavailable

5

COLLAR, R. RR. ENGINE HANGER

50135-GN1-000

$9.32

6

COLLAR, L. RR. ENGINE HANGER

50136-GN1-760

$12.16

7

PIPE, BOLT ON (UPPER) *NH138* (SHASTA WHITE) (NOT AVAILABLE) PIPE, BOLT ON (UPPER) *NH146M*

50370-KN4-000ZB

Unavailable

8

PLUG, HOLE

50372-KN4-000

$5.96

9

SLIDER ASSY., CHAIN (LOWER)

52185-GN1-000

$19.54

10

WASHER (6MM)

61107-KK6-000

$3.06

11

BOLT, FLANGE (8X158)

90101-GN1-760

$8.83

12

BOLT, FLANGE (8X102)

90108-GN1-000

$6.84

13

BOLT, SOCKET (8X16)

90116-413-000

Unavailable

14

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

15

BOLT, FLANGE (8X65)

90156-MA0-770

$7.31

16

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

16

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

17

BOLT-WASHER (8X20)

93405-08020-08

$1.97

18

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

20

BOLT, FLANGE (6X10) (NOT AVAILABLE)

96300-06010-07

Unavailable
