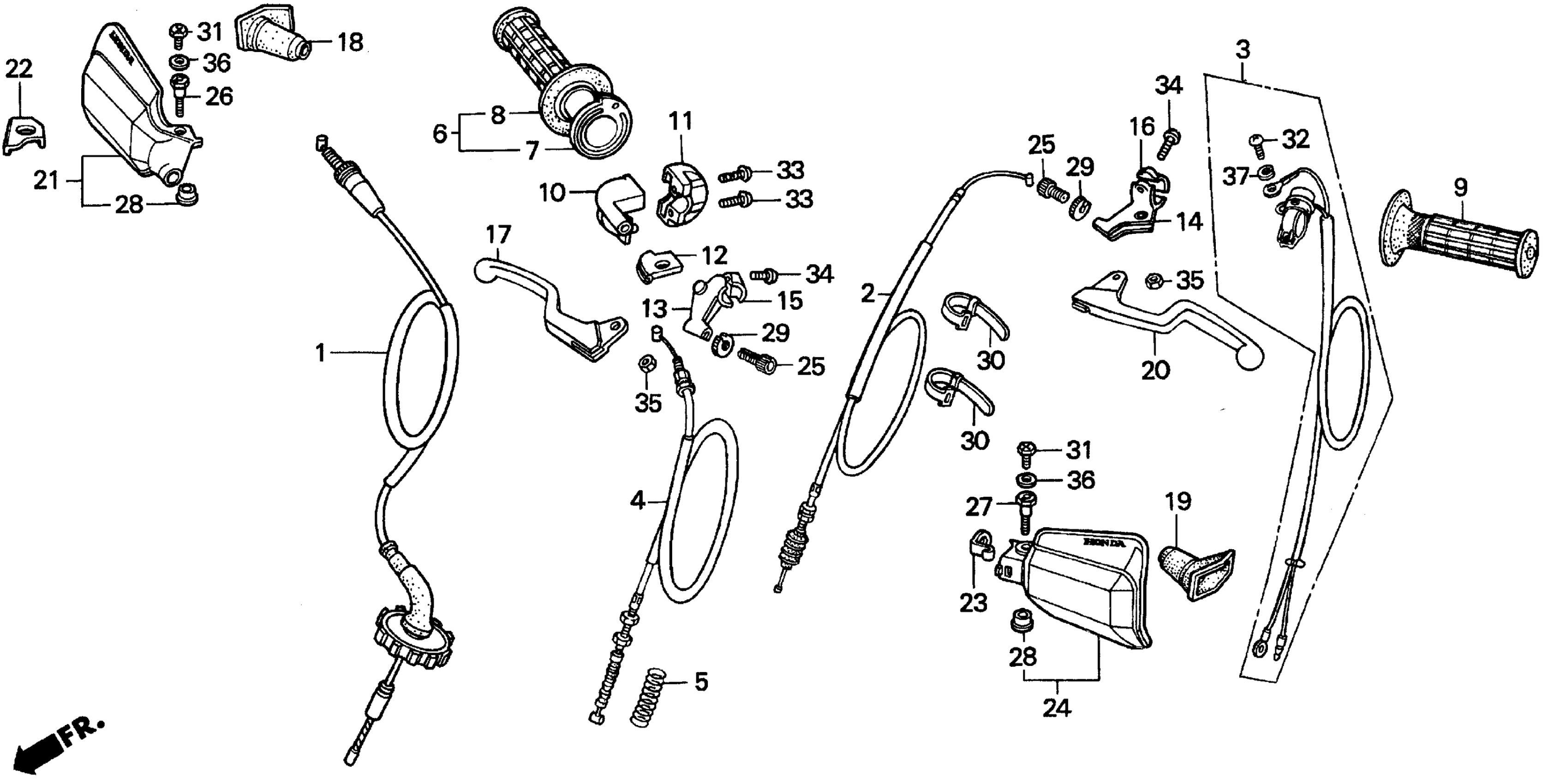

Honda XR100RA (94) MOTORCYCLE, JPN, VIN# JH2HE030-RK300001 TO JH2HE030-RK307531 HANDLE SWITCH@CABLES Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-KN4-306

$45.79

2

CABLE, CLUTCH

22870-KN4-A60

$26.55

2

CABLE, CLUTCH This part replaces 22870-KN4-000.

22870-KN4-A60

$26.55

3

SWITCH ASSY., ENGINE STOP This part replaces 35130-KN4-851.

35130-KN4-852

$32.17

3

SWITCH ASSY., ENGINE STOP

35130-KN4-852

$32.17

4

CABLE, FR. BRAKE

45450-KN4-000

Unavailable

5

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

6

GRIP, THROTTLE (COO)

53140-GFW-305

$30.25

6

GRIP, THROTTLE (COO) This part replaces 53140-446-000.

53140-GFW-305

$30.25

6

GRIP, THROTTLE (COO) This part replaces 53140-446-010.

53140-GFW-305

$30.25

8

GRIP, R. HANDLE This part replaces 53165-430-000.

53165-GFW-305

$12.63

9

GRIP, L. HANDLEBAR This part replaces 53166-GFW-305.

53166-459-910

$9.44

9

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

10

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$20.89

10

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$20.89

11

HOUSING, THROTTLE (LOWER) This part replaces 53168-KA2-000.

53168-KA2-010

$19.52

11

HOUSING, THROTTLE (LOWER)

53168-KA2-010

$19.52

12

SLIDER, THROTTLE

53169-KA2-000

$4.85

13

BRACKET, R. HANDLEBAR (NOT AVAILABLE)

53171-KA3-710

Unavailable

14

BRACKET, L. HANDLEBAR

53172-429-770

$33.14

15

HOLDER, LEVER BRACKET (NOT AVAILABLE)

53173-KA3-710

Unavailable

16

HOLDER, LEVER BRACKET

53173-376-000

$10.95

17

LEVER, R. HANDLEBAR (NOT AVAILABLE)

53175-KF0-000

Unavailable

18

COVER, R. HANDLEBAR

53176-KK0-000

Unavailable

19

COVER, L. HANDLE LEVER

53177-KN5-670

$9.41

20

LEVER, L. HANDLEBAR (NOT AVAILABLE)

53178-GM2-010

Unavailable

21

GUARD, R. KNUCKLE *NH138* (SHASTA WHITE) (NOT AVAILABLE) GUARD, R. KNUCKLE *R134*

53180-KK0-000ZB

Unavailable

22

PLATE, GUARD SETTING *NH138* (SHASTA WHITE) PLATE, GUARD SETTING *R134*

53181-KK0-000ZB

Unavailable

23

PLATE, GUARD SETTING

53181-KN5-670

$6.58

24

GUARD, L. KNUCKLE *NH138* (SHASTA WHITE) GUARD, L. KNUCKLE *R134*

53185-KN5-670ZB

$36.03

25

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

26

BOLT, HANDLEBAR PIVOT

90114-KF0-770

Unavailable

27

BOLT, LEVER PIVOT

90114-KN5-670

$8.98

28

COLLAR (6X4)

90127-KF0-770

$3.42

29

NUT, FIXING

90321-315-670

$7.31

30

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

31

BOLT, RECESSED (5X8)

92301-05008-0A

$1.49

32

SCREW, PAN (4X12)

93500-04012-0A

$1.49

32

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$1.49

33

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

34

SCREW, PAN (5X18)

93500-05018-0G

$1.49

35

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

35

NUT, HEX. (6MM)

94001-06200-0S

$1.49

36

WASHER, PLAIN (5MM)

94103-05000

$1.49

37

WASHER, SPRING (4MM)

94111-04000

$1.49
