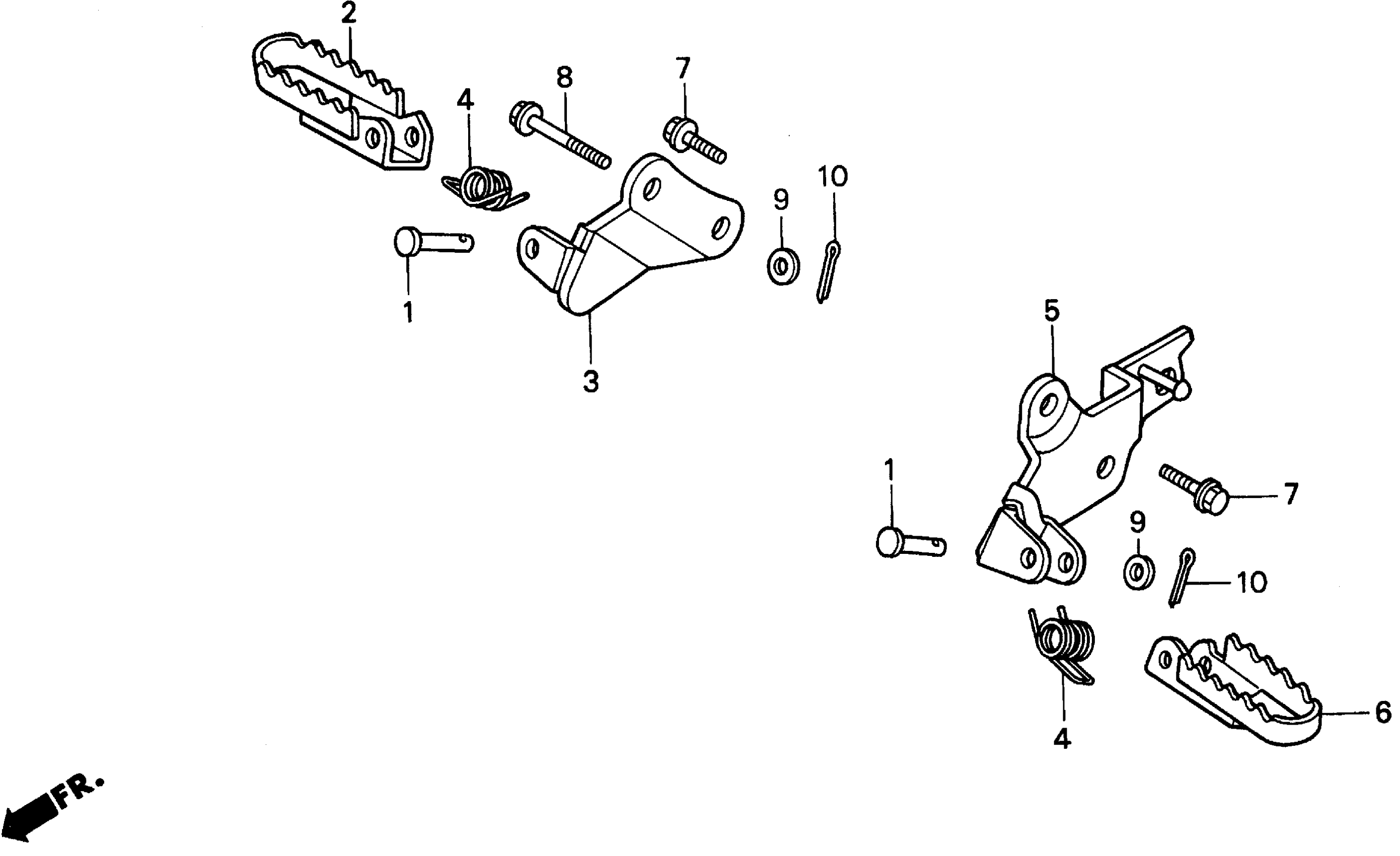

Honda XR100RA (93) MOTORCYCLE, JPN, VIN# JH2HE030-PK200001 TO JH2HE030-PK205436 STEP Diagram

PIN, STEP BAR JOINT This part replaces 50603-GN1-761.

50603-033-010

$2.98

PIN, STEP BAR JOINT

50603-033-010

$2.98

STEP, R.

50612-GN1-000

Unavailable

BRACKET, R. STEP *NH138* (SHASTA WHITE) (NOT AVAILABLE) BRACKET, R. STEP *NH146M*

50615-GN1-000ZB

Unavailable

SPRING, FOOTPEG RETURN SPRING, STEP RETURN

50617-MA0-770

$5.41

SPRING, FOOTPEG RETURN This part replaces 50617-466-000.

50617-MA0-770

$5.41

BRACKET, L. STEP *NH138* (SHASTA WHITE) BRACKET, L. STEP *NH146M*

50624-GN1-000ZB

Unavailable

STEP, L.

50642-GN1-000

Unavailable

BOLT, FLANGE (10X25)

90105-GN1-000

$5.09

BOLT, SPECIAL (10X55)

90106-GN1-000

$5.09

WASHER, PLAIN (8MM)

94101-08000

$0.75

PIN, COTTER (2.0X15)

94201-20150

$0.94
