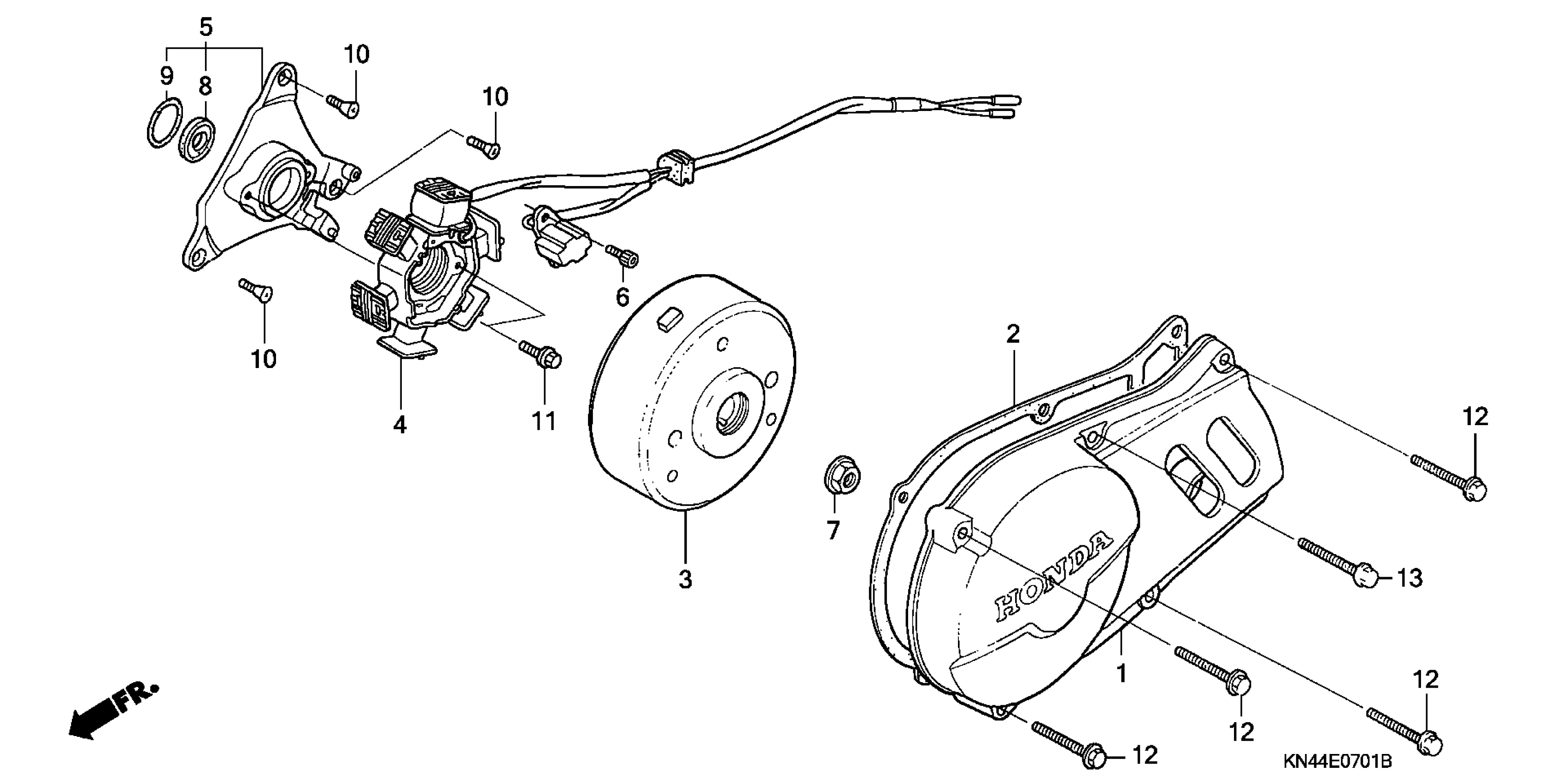

Honda XR100RA (92) MOTORCYCLE, JPN, VIN# JH2HE030-NK000001 TO JH2HE030-NK103585 LEFT CRANKCASE COVER ('92) Diagram

COVER, L. CRANKCASE | Use up to Engine SN 6103929. This part replaces 11341-GN1-870.

11341-GN1-872

$62.02

COVER, L. CRANKCASE This part replaces 11341-GN1-871.

11341-GN1-872

$62.02

COVER, L. CRANKCASE

11341-GN1-872

$62.02

GASKET, L. This part replaces 11394-KN4-750.

11394-KN4-752

$10.66

GASKET, L. This part replaces 11394-KN4-751.

11394-KN4-752

$10.66

FLYWHEEL (MITSUBA)

31110-KN4-751

$220.34

STATOR (MITSUBA)

31120-KN4-751

$203.50

BASE, STATOR

31130-KN4-750

$128.66

SET (SOCKET5X10) This part replaces 90089-GT9-000.

90089-GT9-305

$2.93

NUT, FLANGE (12MM)

90309-375-003

$7.93

OIL SEAL (21X36X7) This part replaces 91202-436-003.

91202-436-004

$7.36

OIL SEAL (21X36X7)

91202-436-004

$7.36

O-RING (43X2.5) (ARAI)

91303-436-003

$6.73

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$0.97

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

BOLT, FLANGE (6X35)

96001-06035-07

$2.75

BOLT, FLANGE (6X35) | Use up to Engine SN 6103929.

96001-06035-07

$2.75

BOLT, FLANGE (6X50)

96001-06050-07

$1.41

BOLT, FLANGE (6X50) | Use from Engine SN 6103930.

96001-06050-07

$1.41
