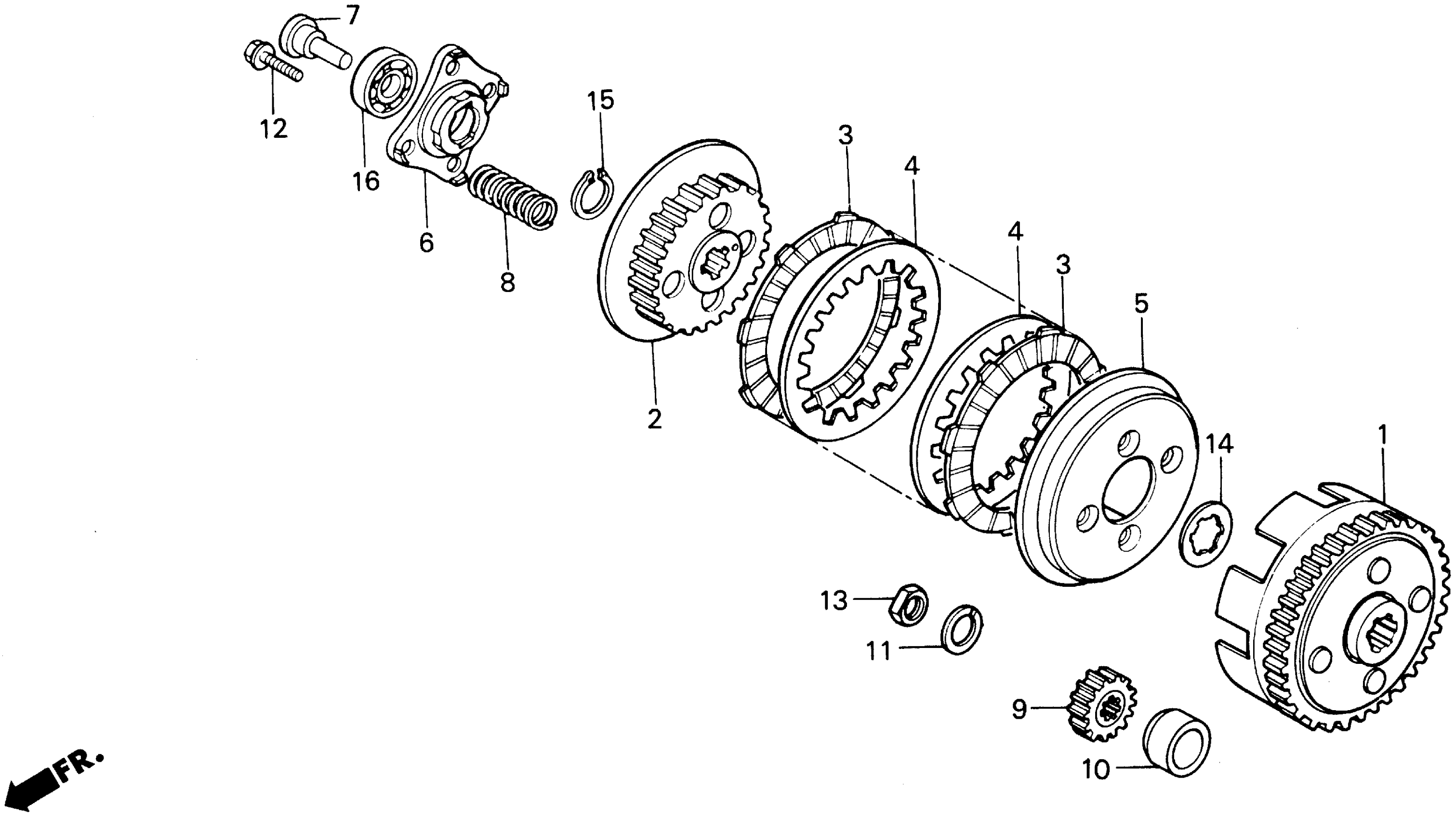

Honda XR100RA (90) MOTORCYCLE, JPN, VIN# JH2HE030-LK900001 TO JH2HE030-LK903942 CLUTCH Diagram

CLUTCH OUTER (71T)

22100-436-000

Unavailable

CENTER, CLUTCH

22121-436-000

Unavailable

DISK, CLUTCH FRICTION This part replaces 22201-GC4-701.

22201-MR8-000

$14.79

DISK, CLUTCH FRICTION This part replaces 22201-GS2-000.

22201-MR8-000

$14.79

DISK, CLUTCH FRICTION

22201-MR8-000

$14.79

PLATE, CLUTCH

22311-KN4-680

$6.31

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$31.49

SPRING, CLUTCH

22401-KN4-680

$2.92

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

COLLAR, PRIMARY DRIVE GEAR

23122-436-000

Unavailable

WASHER, LOCK

90033-115-000

Unavailable

BOLT, SPECIAL FLANGE (6X22) BOLT, FLANGE (6X18)

90050-357-000

$3.35

NUT, SPECIAL (14MM)

90201-836-000

Unavailable

WASHER B, SPLINE (17MM)

90462-115-010

$5.33

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
