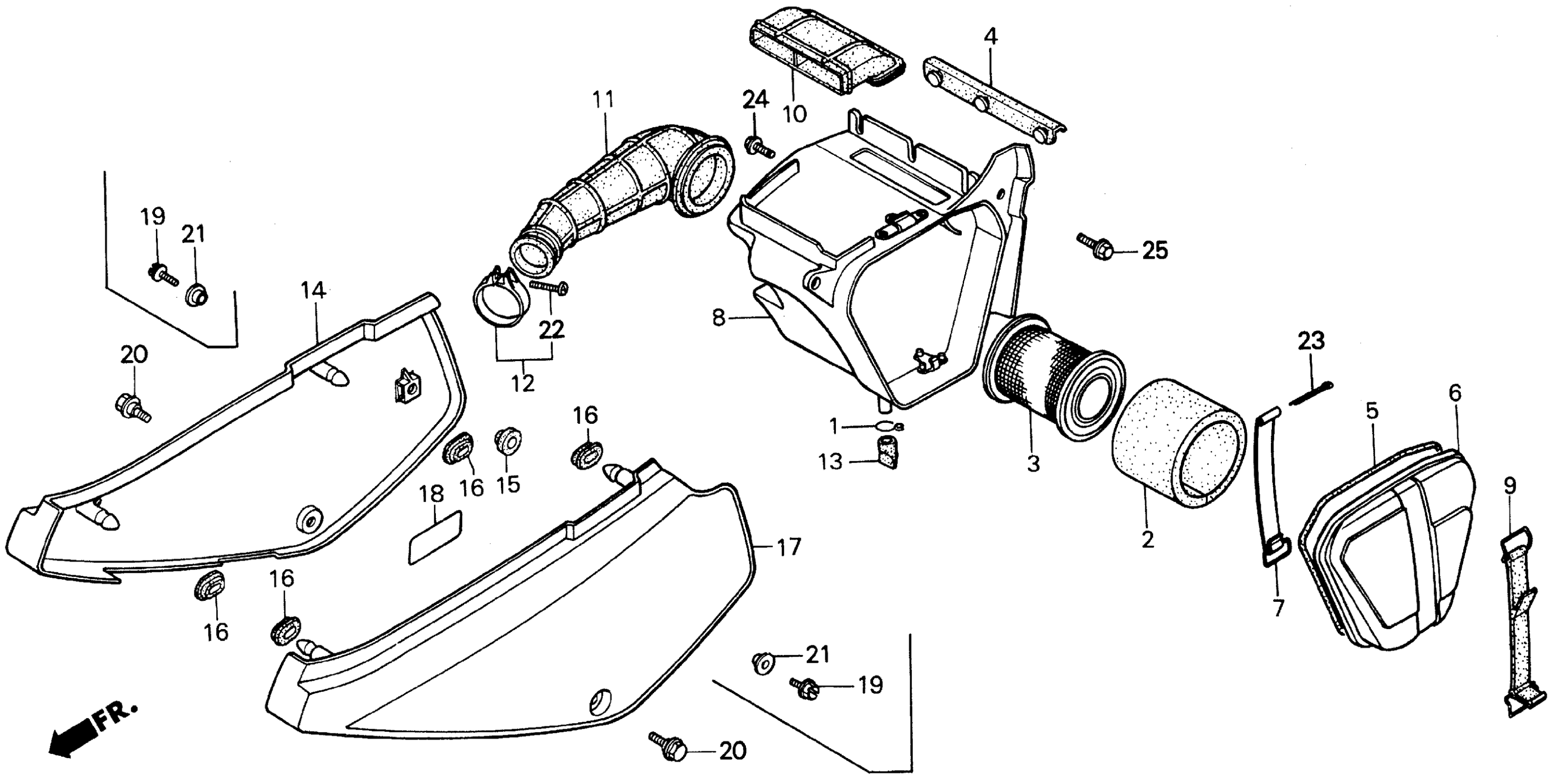

Honda XR100RA (90) MOTORCYCLE, JPN, VIN# JH2HE030-LK900001 TO JH2HE030-LK903942 AIR CLEANER Diagram

CLIP, BREATHER TUBE CLIP, TUBE

15772-292-010

$2.92

AIR CLEANER This part replaces 17211-GN1-760.

17254-HF7-000

$9.81

ELEMENT, AIR CLEANER

17254-HF7-000

$9.81

HOLDER, AIR CLEANER ELEMENT

17212-KJ2-003

$50.37

SPLASH GUARD, AIR CLEANER

17215-GN1-000

$11.38

SEAL, AIR CLEANER COVER This part replaces 17219-GN1-000.

17222-MN4-405

$7.31

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

COVER, AIR CLEANER HOUSING

17220-GN1-760

$27.29

SPRING

17225-GN1-000

$8.92

HOUSING, AIR CLEANER

17230-GN1-760

Unavailable

BAND, AIR CLEANER COVER

17235-GN1-680

$12.02

DUCT, AIR IN.

17240-KB7-000

$36.26

TUBE, AIR CLEANER CONNECTING

17253-KN4-000

Unavailable

BAND A, AIR CLEANER CONNECTING TUBE

17255-303-010

$6.81

TUBE, DRAIN

17358-170-000

$3.74

COVER SET, R. SIDE *NH138* (SHASTA WHITE) This part replaces 83501-GN1-870ZA.

83501-GN1-870ZD

Unavailable

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER SET, L. SIDE *NH138* (SHASTA WHITE) This part replaces 83601-GN1-870ZA.

83601-GN1-870ZD

Unavailable

BOLT, FLANGE (6MM)

90111-KM1-000

$4.24

SCREW, PAN (5X20)

93500-05020-0G

$1.49

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
