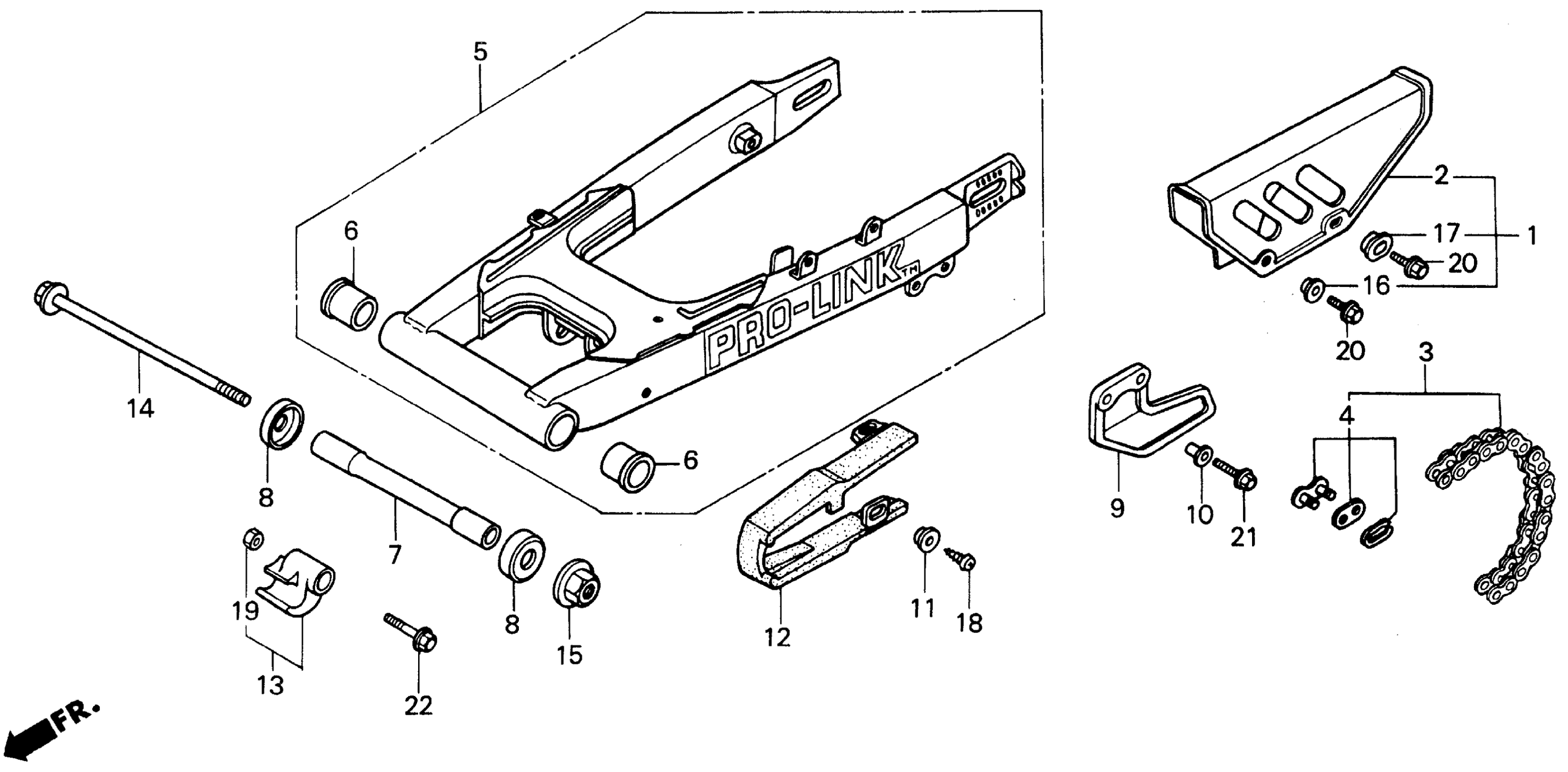

Honda XR100RA (89) MOTORCYCLE, JPN, VIN# JH2HE030-KK800001 TO JH2HE030-KK803025 SWINGARM Diagram

#

Description
Price

2

CASE, DRIVE CHAIN

40510-GN1-760

$29.64

3

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 405W3-427-505.

40530-KC2-961

$52.38

3

CHAIN, DRIVE (DID428HGI-120RJ)

40530-KC2-961

$52.38

3

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-KN4-005.

40530-KC2-961

$52.38

3

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-355-013.

40530-KC2-961

$52.38

3

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-402-731.

40530-KC2-961

$52.38

3

CHAIN, DRIVE (DID428HGI-120RJ) This part replaces 40530-437-603.

40530-KC2-961

$52.38

4

MASTER LINK (DAIDO)

40531-355-013

$3.95

4

MASTER LINK (TAKASAGO)

40531-437-602

Unavailable

5

SWINGARM ASSY., RR. *NH35M* (WL) (CLOUD SILVER METALLIC)

52100-KN4-780ZA

Unavailable

6

BUSH, PIVOT THRUST

52109-GJ1-003

$16.93

7

COLLAR, SWINGARM

52141-GN1-000

$42.78

8

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-000.

52144-360-005

$10.83

8

CAP, SWINGARM DUST SEAL (NOK) This part replaces 52144-360-003.

52144-360-005

$10.83

8

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$10.83

9

GUARD, CHAIN

52156-GN1-000

$23.93

10

COLLAR, CHAIN GUARD

52157-GC5-000

$4.28

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

12

SLIDER, CHAIN

52175-GN1-000

$25.10

13

SLIDER, CHAIN (UPPER)

52180-GN1-000

$13.92

14

BOLT, SWINGARM PIVOT

90121-GN1-000

$28.60

15

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

18

SCREW, TAPPING (5X8)

93901-25080

$0.84

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

19

NUT, HEX. (6MM)

94001-06200-0S

$1.21

20

BOLT, FLANGE (6MM)

90111-187-000

$6.94

21

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable

22

BOLT, FLANGE (6X28)

96300-06028-00

$1.37
