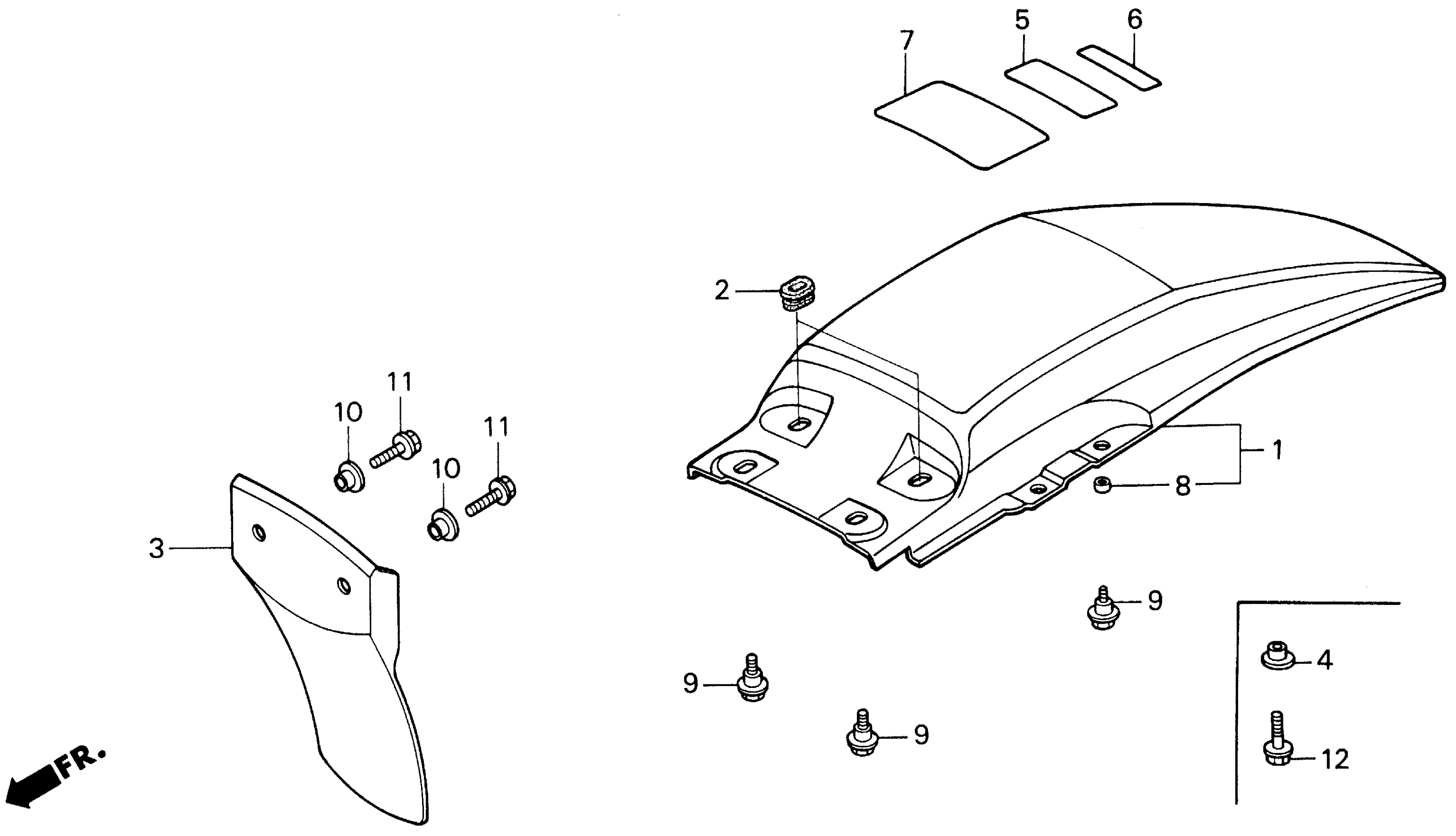

Honda XR100RA (89) MOTORCYCLE, JPN, VIN# JH2HE030-KK800001 TO JH2HE030-KK803025 REAR FENDER Diagram

FENDER, RR. *R119* (FLASH RED)

80100-GN1-760ZA

Unavailable

PLUG, RR. FENDER

80101-GN1-000

$2.92

SPLASH GUARD, RR. FENDER (NOT AVAILABLE)

80106-GN1-000

Unavailable

LABEL, USE CAUTION (NOT AVAILABLE)

87504-KN4-780

Unavailable

LABEL, DRIVE (NOT AVAILABLE)

87560-KN4-780

Unavailable

COLLAR, RR. FENDER

90107-VM4-000

Unavailable

BOLT, FLANGE (6MM)

90111-162-000

$2.89

WASHER, RR. COVER

90506-425-000

$2.89

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49
