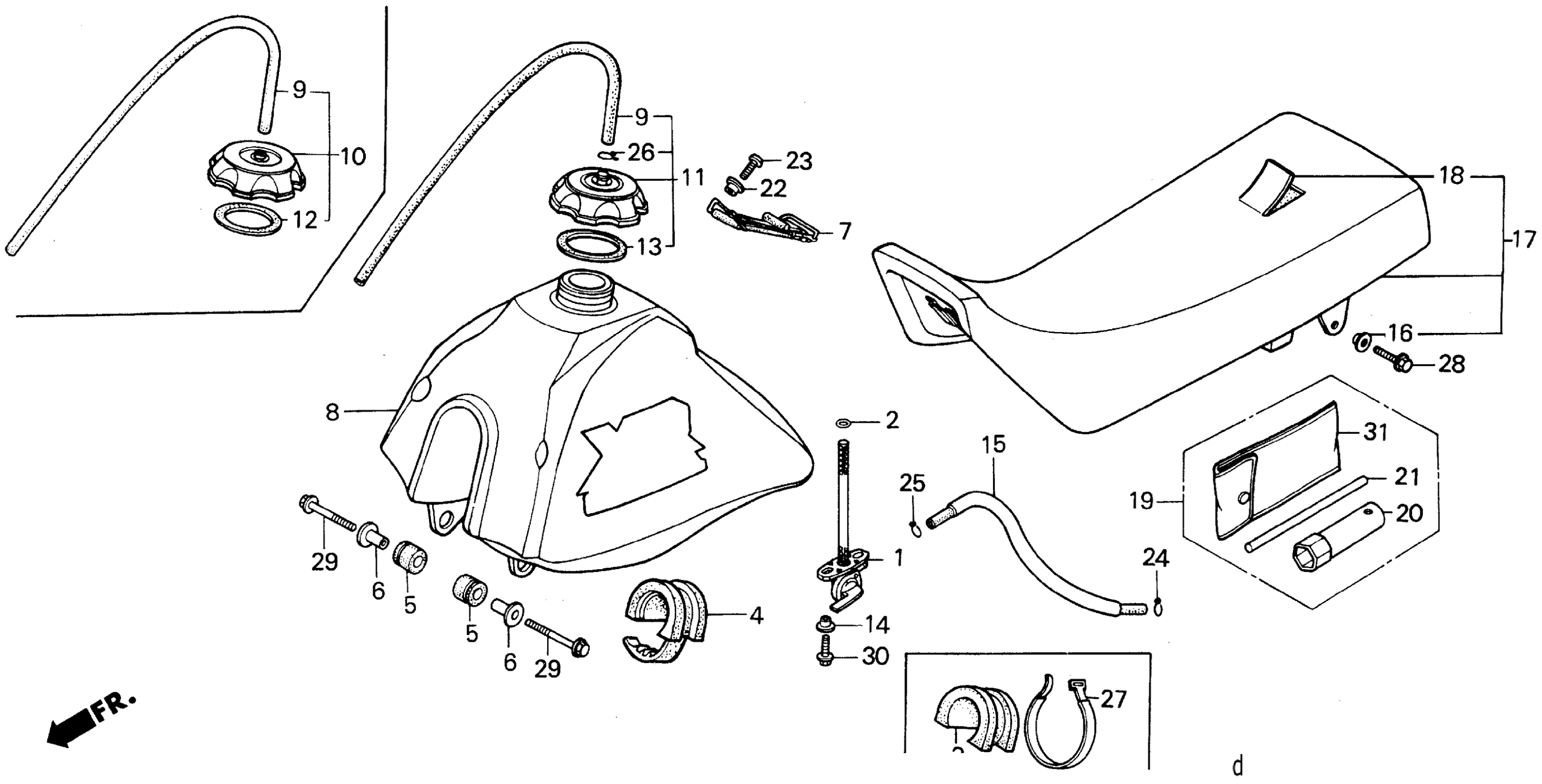

Honda XR100RA (89) MOTORCYCLE, JPN, VIN# JH2HE030-KK800001 TO JH2HE030-KK803025 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-GN1-005.

16950-GN1-871

$96.27

1

PETCOCK ASSY. This part replaces 16950-GN1-015.

16950-GN1-871

$96.27

1

PETCOCK ASSY.

16950-GN1-871

$96.27

2

O-RING (11.8X3.55)

16997-467-000

$2.11

4

RUBBER, TANK SETTING

17504-GN1-770

$15.40

5

RUBBER, FUEL TANK MOUNTING

17508-KA3-710

$8.75

6

COLLAR, FUEL TANK SETTING

17509-KA3-710

$11.54

7

BAND, RR. TANK

17516-GF5-000

$37.83

8

TANK SUB-ASSY., FUEL *R119* (WL) (FLASH RED)

17520-KN4-780ZA

Unavailable

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.98

11

CAP ASSY., FUEL TANK

17620-KT1-780

$31.82

13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

14

COLLAR, FUEL TANK SETTING

17626-467-000

$4.76

15

TUBE, FUEL

17681-GN1-000

$9.82

16

COLLAR, FR. FENDER SETTING

61107-KB5-000

$3.47

17

SEAT (NA USE ALT:77100-KN4-830) This part replaces 77100-KN4-780.

77100-KN4-950

Unavailable

18

LEATHER, SEAT (TYPE1) (NO LETTERS PRINTED) This part replaces 77101-KN4-306.

77101-GN1-A40ZA

Unavailable

19

TOOL SET (NOT AVAILABLE)

89010-153-000

Unavailable

20

WRENCH, SPARK PLUG This part replaces 89216-045-000.

89216-045-010

$6.26

20

WRENCH, SPARK PLUG

89216-045-010

$6.26

20

WRENCH, SPARK PLUG This part replaces 89216-045-670.

89216-045-010

$6.26

21

BAR, HANDLE

89217-045-670

$4.94

22

COLLAR, REFLECTOR SETTING

90129-463-770

$3.15

23

SCREW, PAN (6X16)

93500-06016-0H

$1.49

24

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

25

CLIP, TUBE (B10)

95002-02100

$1.90

26

CLIP, TUBE (C9)

95002-50000

$1.49

28

BOLT, FLANGE (6X14)

96300-06014-00

$1.49

29

BOLT, FLANGE (6X40)

96300-06040-00

$2.00

30

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

31

BAG, TOOL (160MM)

99008-01600

$2.22
