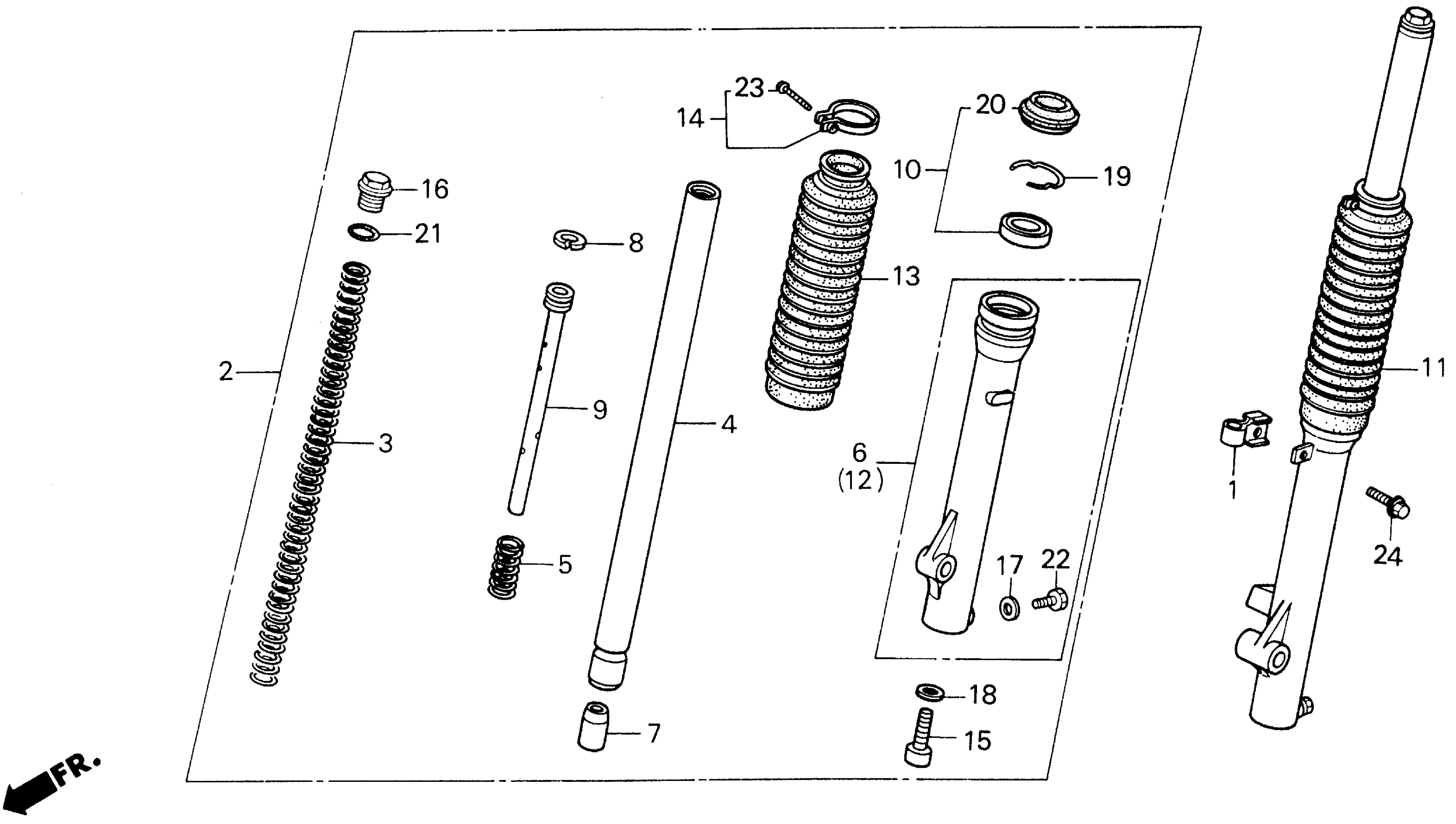

Honda XR100RA (89) MOTORCYCLE, JPN, VIN# JH2HE030-KK800001 TO JH2HE030-KK803025 FRONT FORK Diagram

#

Description
Price

1

CLAMP, BRAKE CABLE

45461-GN1-000

$5.22

2

FORK ASSY., R. FR. *R119* (FLASH RED)

51400-KN4-763ZA

Unavailable

3

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-KN4-003

Unavailable

4

PIPE, FR. FORK (SHOWA)

51410-KN4-003

Unavailable

5

SPRING, REBOUND (SHOWA)

51412-KA8-711

$7.74

6

CASE, R. (LOWER) This part replaces 51420-GN1-762.

51420-GN1-763

Unavailable

7

PIECE, OIL LOCK (SHOWA)

51432-GN1-003

$20.48

8

RING, PISTON

51437-GM0-003

$5.07

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

9

PIPE, SEAT (SHOWA)

51470-GN1-003

Unavailable

10

SEAL SET, FR. FORK

51490-GN1-013

$29.00

11

FORK ASSY., L. FR. *R119* (FLASH RED)

51500-KN4-762ZA

Unavailable

12

CASE, L. (LOWER) (NOT AVAILABLE)

51520-GN1-761

Unavailable

13

BOOT, FR. FORK *R119* (FLASH RED) (NOT AVAILABLE)

51611-GN1-762ZA

Unavailable

14

BAND, FR. FORK BOOT

51612-KF9-900

$10.78

15

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

16

BOLT, FORK (SHOWA)

90123-KA8-771

$25.54

17

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

18

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

19

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

20

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

21

O-RING (17.8X2.4) (SHOWA) (Honda Code 0750950)

91256-383-721

$2.30

22

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

22

BOLT, HEX. (6X8) BOLT, HEX. (6X10)

92101-06008-0A

$1.49

23

SCREW, PAN (3X20)

93500-03020-0G

$1.49

24

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

24

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
