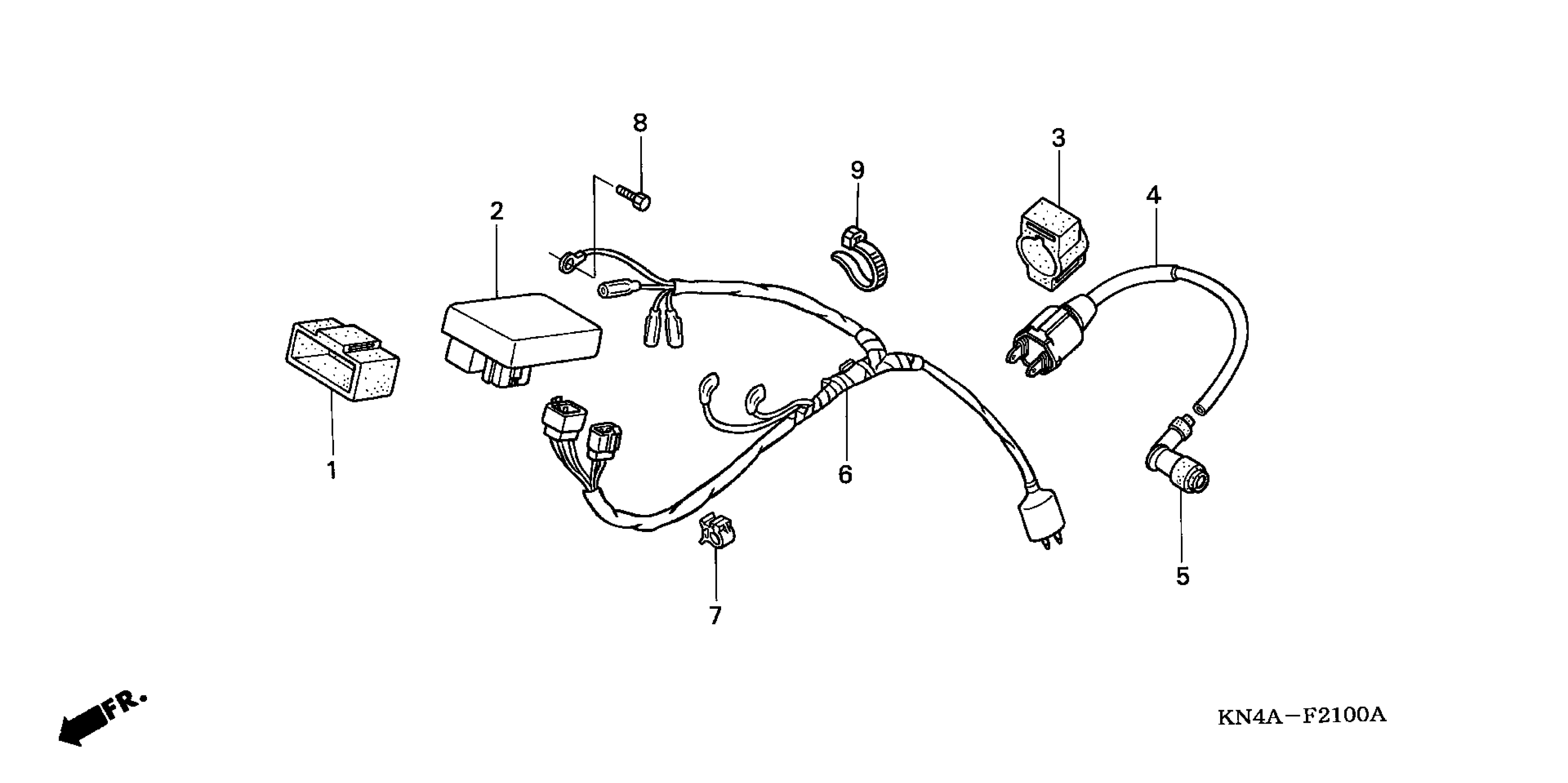

Honda XR100RA (02) MOTORCYCLE, JPN, VIN# JH2HE030-2K100001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-KK0-770.

30401-KT1-670

$5.04

2

MODULE, IGNITION CONTROL (CDI)

30410-GT9-000

$204.31

3

SUSPENSION, IGNITION COIL

30506-KV3-771

$10.91

4

COIL, IGNITION This part replaces 30510-KN4-850.

30510-KT0-405

$70.98

4

COIL, IGNITION

30510-KT0-405

$70.98

5

CAP ASSY. This part replaces 30700-KN4-A60.

30700-KN4-A61

$23.93

6

WIRE HARNESS

32100-KN4-A60

$63.49

7

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

8

BOLT, HEX. (5X8)

92101-05008-0A

$1.00

9

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$4.65
