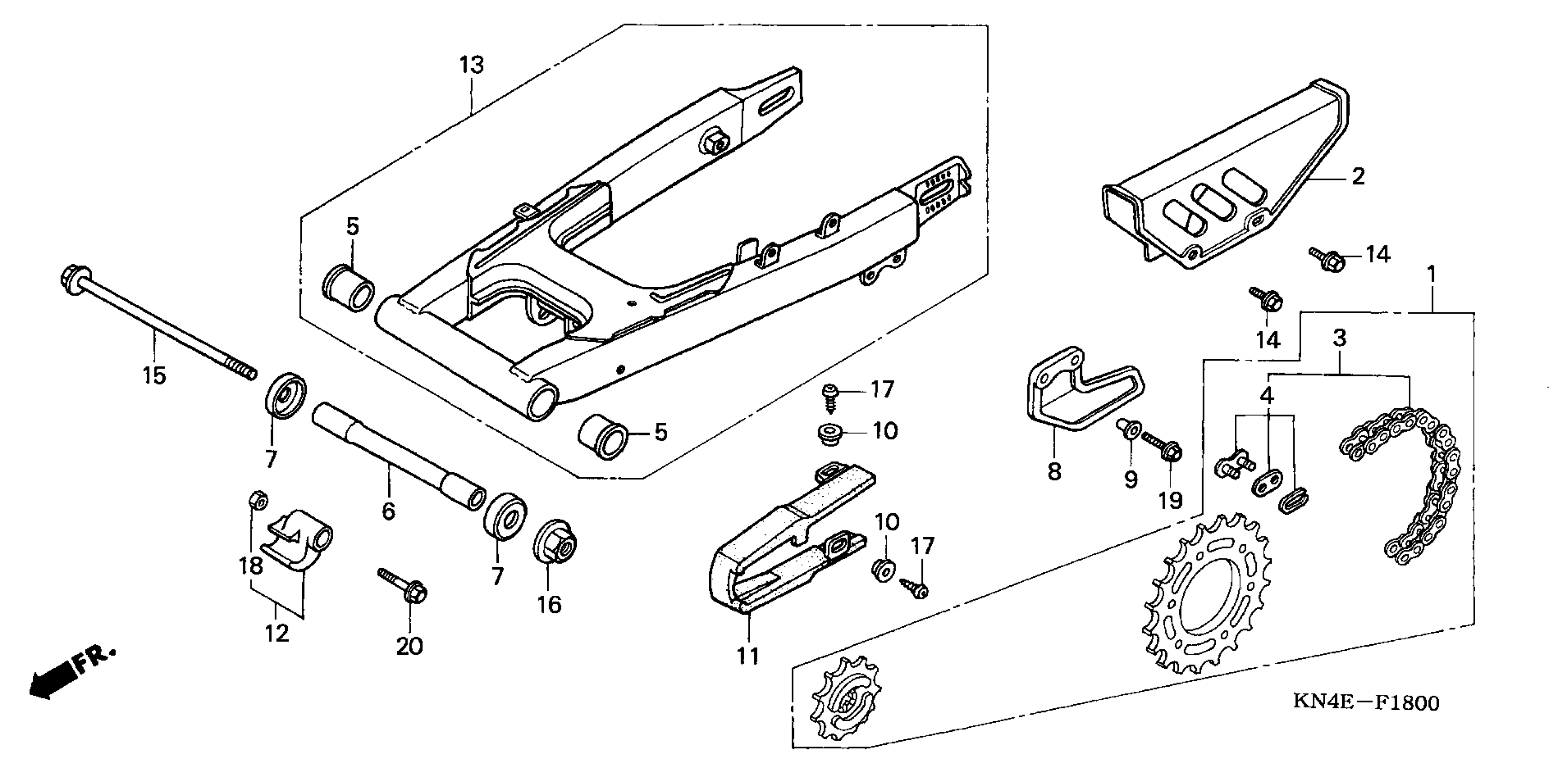

Honda XR100RA (02) MOTORCYCLE, JPN, VIN# JH2HE030-2K100001 SWINGARM Diagram

#

Description
Price

1

CHAIN KIT, DRIVE (428-118L) (RK/DAIDO)

06406-KN4-J00

Unavailable

2

CASE, DRIVE CHAIN

40510-GN1-760

$29.64

3

CHAIN, DRIVE (DID428HGI-118RJ) (DAIDO)

40530-KCP-003

Unavailable

3

CHAIN, DRIVE (DID428HD-118RB) (DAIDO) This part replaces 40530-KN4-A12.

40530-KSJ-003

$57.03

3

CHAIN, DRIVE (DID428HD-118RB) (DAIDO)

40530-KSJ-003

$57.03

3

CHAIN, DRIVE (DID428HD-118RB) (DAIDO) This part replaces 40530-KSJ-005.

40530-KSJ-003

$57.03

4

MASTER LINK (RK EXCEL)

40531-KFC-902

$4.90

4

MASTER LINK (DAIDO)

40531-355-013

$3.95

5

BUSH, PIVOT THRUST

52109-GJ1-003

$16.93

6

COLLAR, SWINGARM

52141-GN1-000

$42.78

7

CAP, SWINGARM DUST SEAL (NOK)

52144-360-005

$10.83

8

GUARD, CHAIN

52156-GN1-000

$23.93

9

COLLAR, CHAIN GUARD

52157-GC5-000

$4.28

10

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

11

SLIDER, CHAIN

52175-GN1-000

$25.10

12

SLIDER, CHAIN (UPPER)

52180-GN1-000

$13.92

13

SWINGARM SUB-ASSY., RR. *NH146M* (ACCURATE SILVER METALLIC)

52200-KN4-A60ZA

Unavailable

14

BOLT, FLANGE (6MM)

90111-187-000

$6.94

15

BOLT, SWINGARM PIVOT

90121-GN1-000

$28.60

16

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

17

SCREW, TAPPING (5X8)

93901-25080

$0.84

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.21

18

NUT, HEX. (6MM)

94001-06200-0S

$1.21

19

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable

20

BOLT, FLANGE (6X28)

96300-06028-00

$1.37
