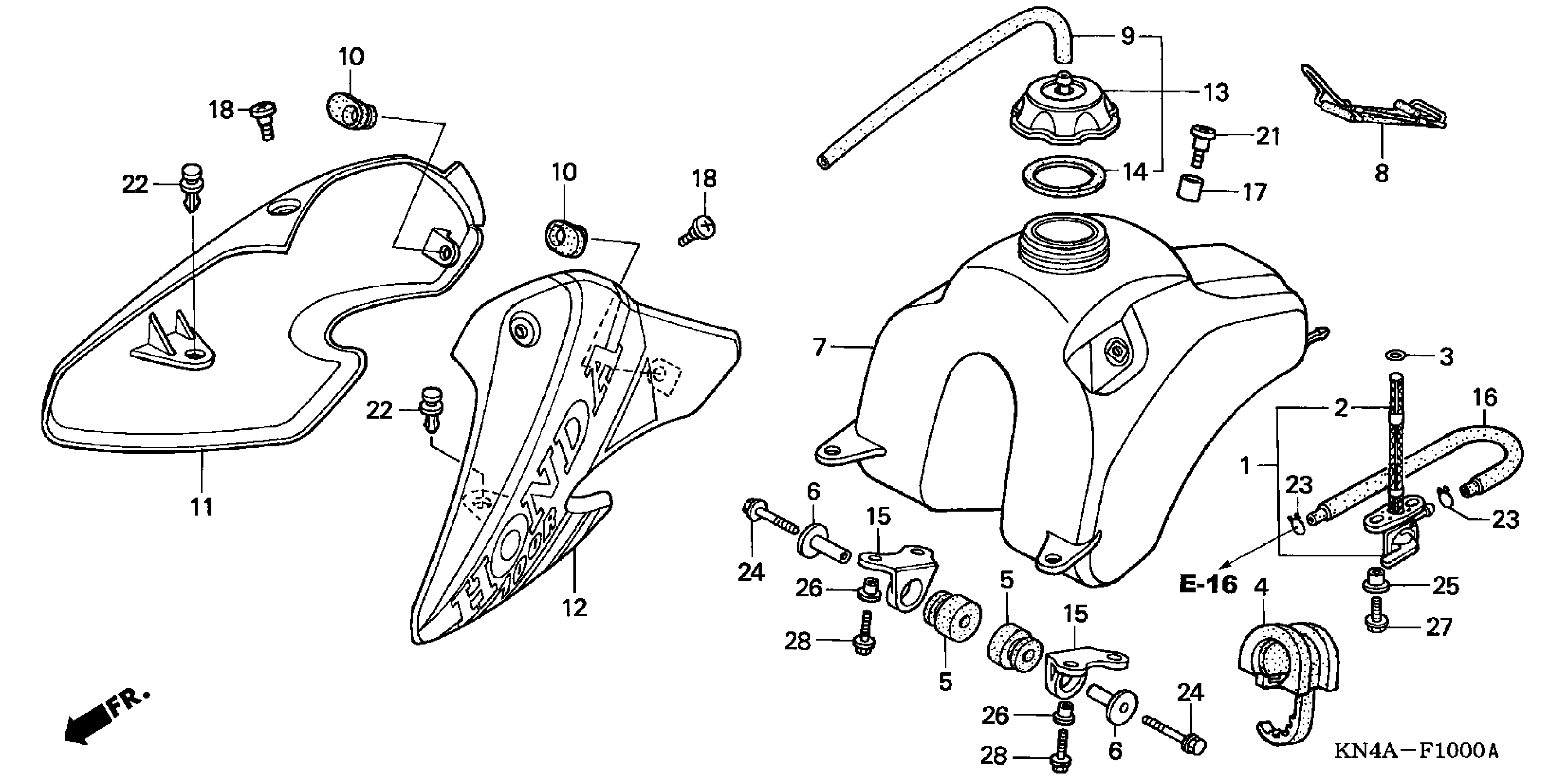

Honda XR100RA (02) MOTORCYCLE, JPN, VIN# JH2HE030-2K100001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-GEL-701

$56.17

2

SCREEN SET, FUEL STRAINER

16952-GEL-701

$19.10

3

O-RING (11.8X3.55)

16997-467-000

$2.04

4

RUBBER, TANK SETTING

17504-GN1-770

$14.15

5

RUBBER, TANK MOUNTING RUBBER, FUEL TANK SETTING

17508-GBF-830

$5.64

6

COLLAR, TANK SETTING

17509-KN4-A60

$5.68

7

TANK, FUEL

17510-KN4-A60

Unavailable

8

BAND, RR. TANK This part replaces 17516-KN4-A60.

17516-KSJ-670

$13.49

8

BAND, RR. TANK

17516-KSJ-670

$13.49

9

TUBE, FUEL CAP BREATHER

17521-429-000

$6.66

10

GROMMET, SHROUD

17541-KN4-A60

$2.63

11

SHROUD SET, R. TANK (TYPE1) (WL)

17545-KN4-A70ZA

Unavailable

12

SHROUD SET, L. TANK (TYPE1) (WL)

17555-KN4-A70ZA

Unavailable

13

CAP ASSY., FUEL TANK

17620-GEL-770

$28.87

14

GASKET, FUEL CAP

17624-GEL-770

$4.38

15

BRACKET, FR. FUEL TANK

17634-KZ3-860

Unavailable

16

TUBE, FUEL

17681-GN1-000

$9.03

17

COLLAR, BATTERY (LOWER)

83607-356-000

$2.75

18

SCREW A, COWL SETTING

90103-KV3-830

$2.80

21

SCREW, SPECIAL (6X17)

90381-GZ5-000

$1.85

22

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

23

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.62

24

BOLT, FLANGE (6X40)

96300-06040-00

$1.85

25

COLLAR, FUEL TANK SETTING

17626-467-000

$4.56

26

COLLAR

84706-415-000

$2.16

27

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

28

BOLT, FLANGE (6X16)

96001-06016-00

$0.97
