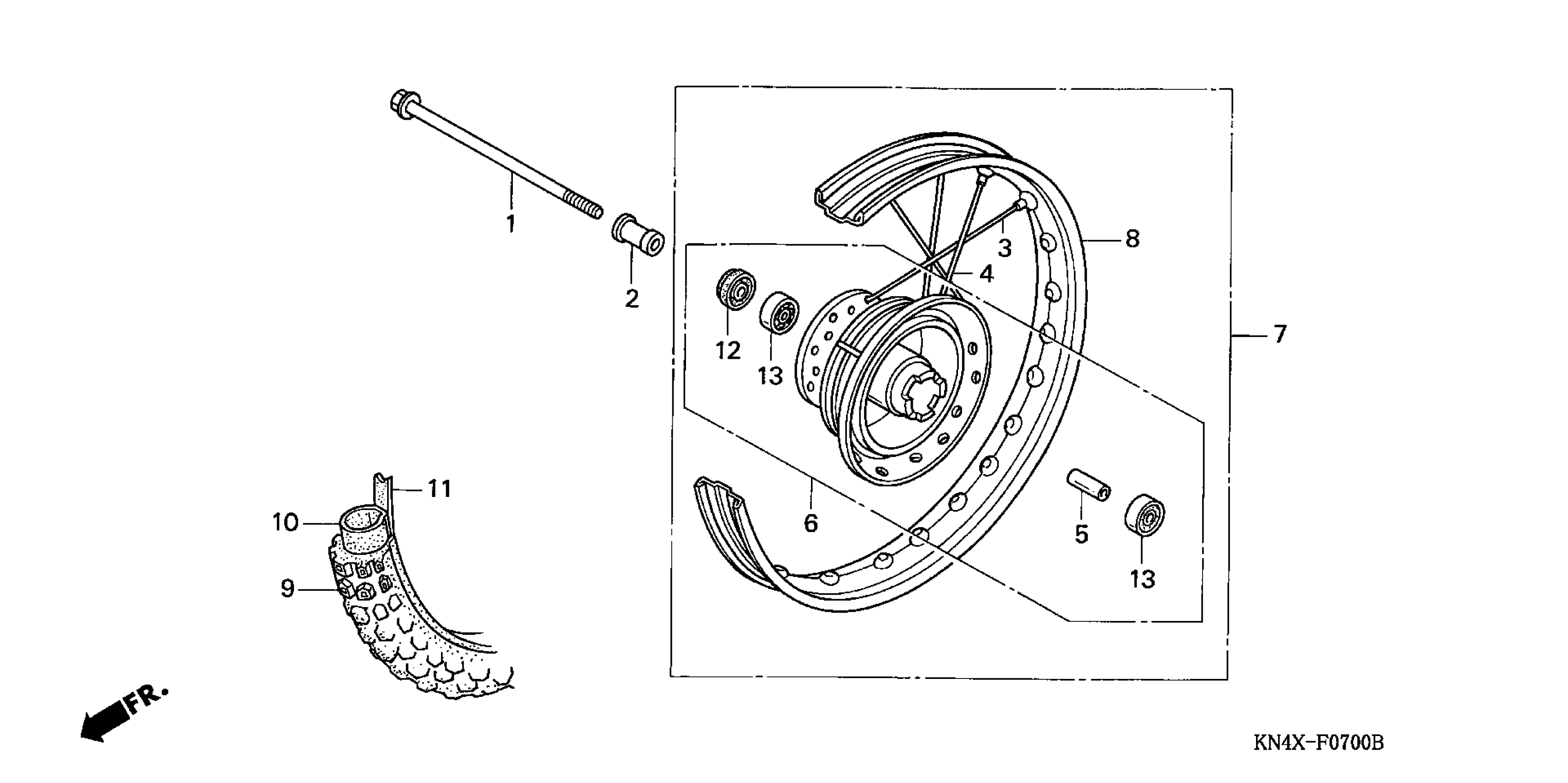

Honda XR100RA (02) MOTORCYCLE, JPN, VIN# JH2HE030-2K100001 FRONT WHEEL Diagram

#

Description
Price

1

AXLE, FR. WHEEL

44301-GCF-670

$25.82

1

AXLE, FR. WHEEL This part replaces 44301-GE2-000.

44301-GCF-670

$25.82

2

COLLAR, FR. WHEEL SIDE

44311-GN1-000

$10.91

3

SPOKE SET B (10X220) (R. SIDE)

44610-KN4-405

$5.60

4

SPOKE SET B (10X185.5) (L. SIDE)

44611-KN4-405

$5.60

5

COLLAR, FR. AXLE DISTANCE

44620-GC4-700

$13.18

6

HUB SUB-ASSY., FR.

44635-KN4-A60

$181.89

7

WHEEL SUB-ASSY., FR. This part replaces 44650-KN4-A60.

44650-KSJ-315

$480.26

7

WHEEL SUB-ASSY., FR. This part replaces 44650-KN4-A61.

44650-KSJ-315

$480.26

7

WHEEL SUB-ASSY., FR. This part replaces 44650-KSJ-305.

44650-KSJ-315

$480.26

8

RIM, FR. WHEEL This part replaces 44701-KN4-003.

44701-KN4-023

$61.41

8

RIM, FR. WHEEL This part replaces 44701-KN4-013.

44701-KN4-023

$61.41

9

TIRE, FR. (2.50-19) (4PR/41L M23) (BS)

44711-KA9-671

$121.11

10

TUBE, TIRE (2.50-19) (IRC) This part replaces 44712-167-003.

44712-167-005

Unavailable

10

TUBE, TIRE (2.50-19) (IRC)

44712-167-005

Unavailable

11

FLAP, TIRE (100/90-19) (57S) (BS)

44713-MR1-671

$7.32

11

FLAP, TIRE (BS) This part replaces 44713-110-003.

44713-MR1-671

$7.32

12

DUST SEAL (32X21X5) (NOK)

90745-GC4-701

$5.05

12

DUST SEAL (32X21X5.5) (ARAI)

90745-GC4-702

$5.05

13

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28
