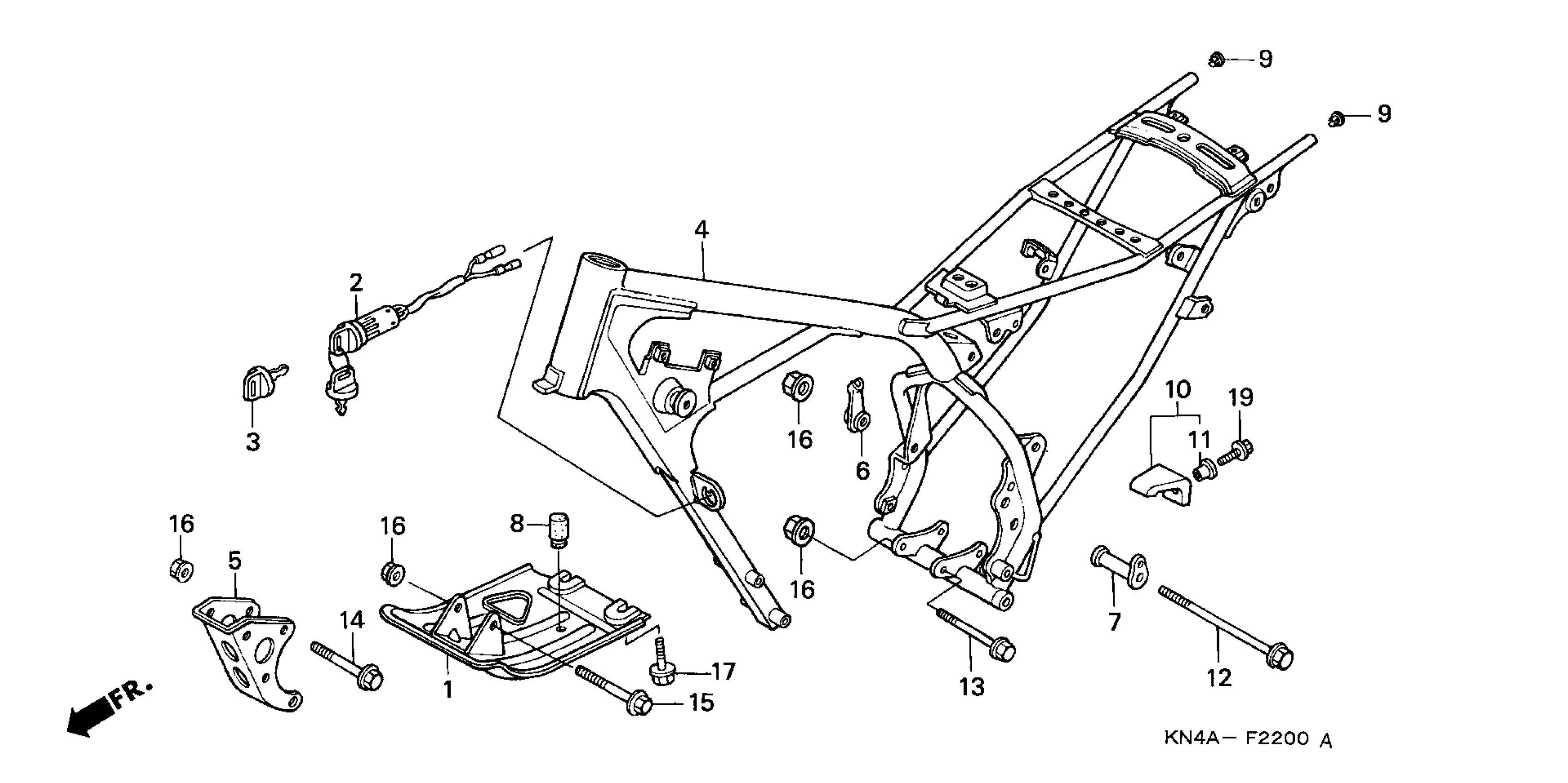

Honda XR100RA (02) MOTORCYCLE, JPN, VIN# JH2HE030-2K100001 FRAME Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE

11911-GN1-680

$60.66

2

LOCK SET

35010-KN4-A60

$39.66

3

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) KEY, BLANK (TYPE2) | (Optional).

35121-HF1-881

$8.84

3

KEY, BLANK (TYPE 2) (KEY NO. CXX / DXX) | (Optional).

35122-HF1-881

$8.84

4

FRAME *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50100-KN4-A60ZA.

50100-KN4-305ZA

Unavailable

4

FRAME *NH146M* (ACCURATE SILVER METALLIC)

50100-KN4-305ZA

Unavailable

5

STAY, FR. ENGINE HANGER *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50127-GN1-000ZC.

50127-GN1-010ZC

$19.13

5

STAY, FR. ENGINE HANGER *NH146M* (ACCURATE SILVER METALLIC)

50127-GN1-010ZC

$19.13

6

COLLAR, R. RR. ENGINE HANGER

50135-GN1-000

$8.58

7

COLLAR, L. RR. ENGINE HANGER

50136-GN1-760

$11.16

8

RUBBER B, STOPPER

50363-GN1-760

$4.28

9

PLUG, HOLE

50372-KN4-000

$5.69

10

SLIDER ASSY., CHAIN (LOWER)

52185-GN1-000

$17.95

11

WASHER (6MM)

61107-KK6-000

$2.92

12

BOLT, FLANGE (8X158)

90101-GN1-760

$8.12

13

BOLT, FLANGE (8X102)

90108-GN1-000

$6.54

14

BOLT, FLANGE (8X60)

90154-MA0-000

$6.97

15

BOLT, FLANGE (8X65)

90156-MA0-770

$6.97

16

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

16

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.19

17

BOLT-WASHER (8X20)

93405-08020-08

$2.06

19

BOLT, FLANGE (6X10) (NOT AVAILABLE)

96300-06010-07

Unavailable
