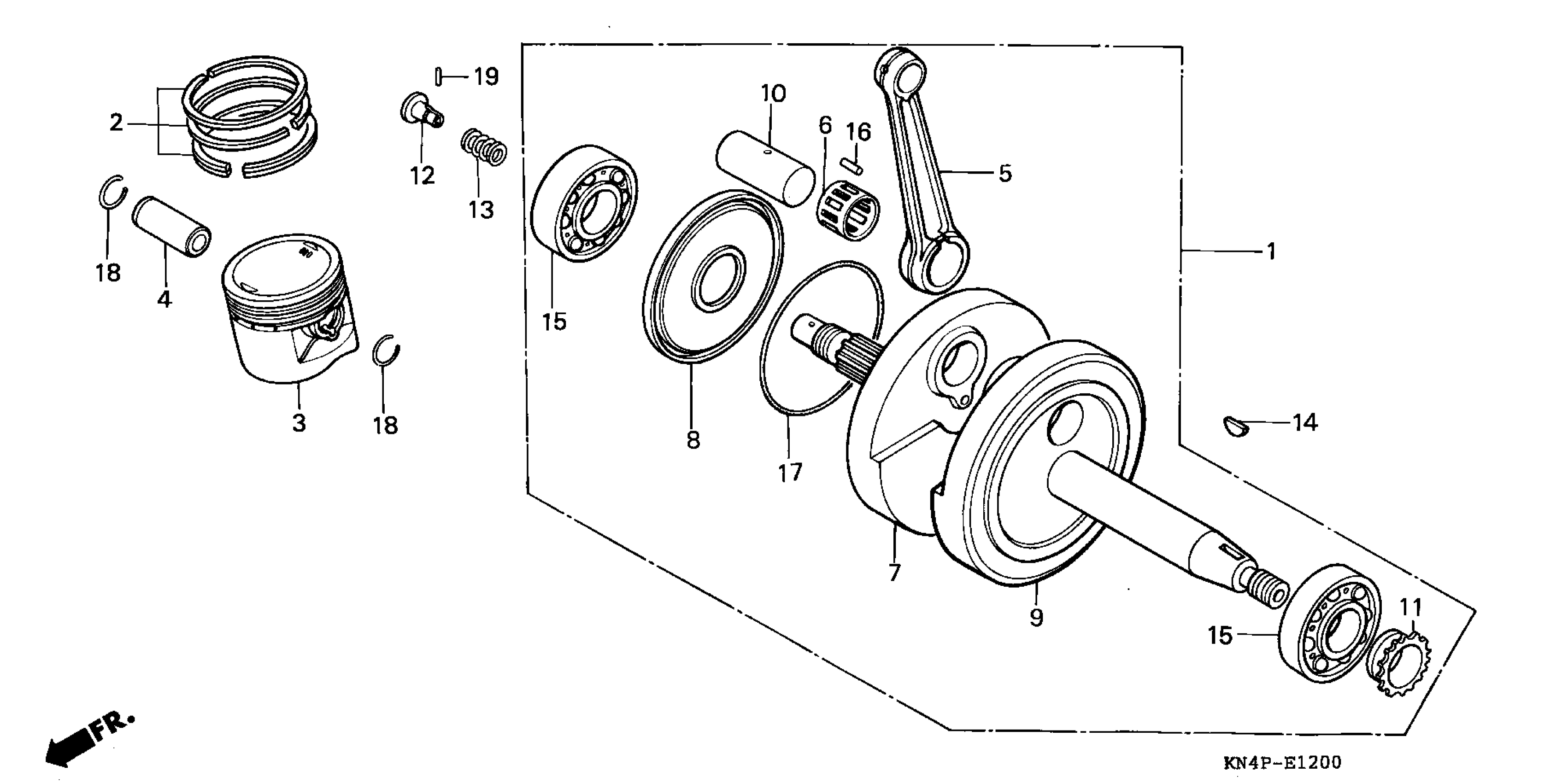

Honda XR100RA (02) MOTORCYCLE, JPN, VIN# JH2HE030-2K100001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-KN4-A60

$422.76

2

RING SET, PISTON (STD)

13011-KN4-A61

$39.18

2

RING SET, PISTON (0.25) | (Optional).

13021-KN4-A61

$39.18

2

RING SET, PISTON (0.50) | (Optional).

13031-KN4-A61

$41.56

3

PISTON (STD)

13101-KN4-A60

$59.98

3

PISTON (0.25) | (Optional).

13102-KN4-A60

$63.62

3

PISTON (0.50) | (Optional).

13103-KN4-A60

$63.62

4

PIN, PISTON

13111-028-000

$11.08

5

ROD, CONNECTING

13201-028-010

Unavailable

6

RETAINER, CONNECTING ROD ROLLER

13211-235-000

Unavailable

7

CRANKSHAFT, R.

13311-KN4-A60

Unavailable

8

PLATE, SIDE

13312-436-300

$7.51

9

CRANKSHAFT, L.

13321-KN4-750

Unavailable

10

PIN, CRANK

13381-436-300

$66.48

11

SPROCKET, TIMING (15T)

14311-436-300

$35.89

12

THROUGH, OIL

15441-149-000

$10.12

13

SPRING, OIL THROUGH

15447-149-000

$2.92

14

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

15

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

15

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

15

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-008.

91002-KY4-901

$24.38

15

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

16

ROLLER, ROD (2.5X10)

91101-001-030

$2.92

17

O-RING (75X2.5)

91301-107-000

$4.87

18

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

19

ROLLER (2X11.8)

96220-20118

$1.49
