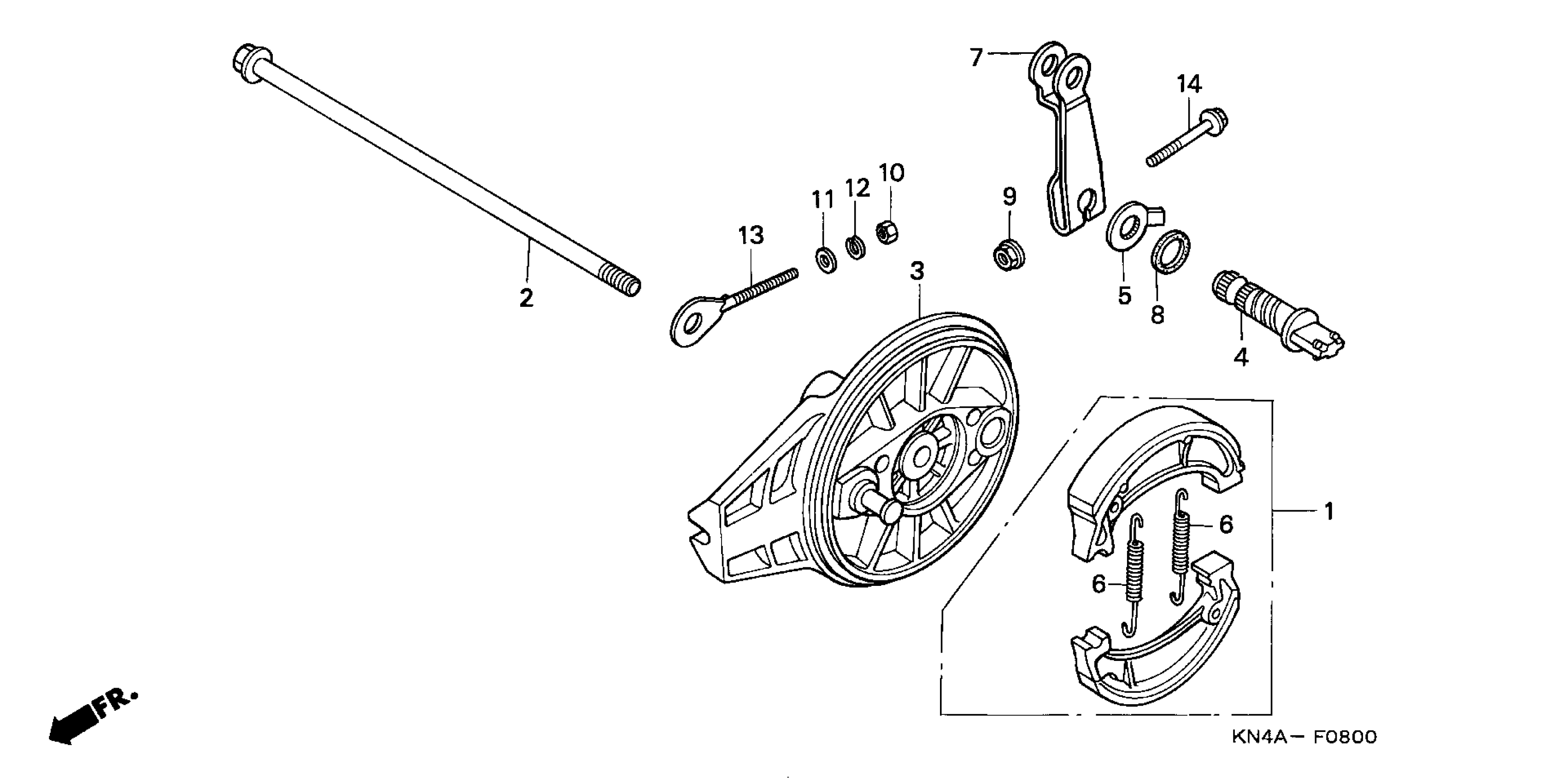

Honda XR100RA (01) MOTORCYCLE, JPN, VIN# JH2HE030-1K000001 REAR BRAKE PANEL Diagram

SHOE SET, BRAKE (ASK) SHOE SET, BRAKE (JB NH FE)

06430-GN1-730

$27.95

AXLE, RR. WHEEL

42301-GCV-J00

$25.31

AXLE, RR. WHEEL This part replaces 42301-GN1-000.

42301-GCV-J00

$25.31

PANEL, RR. BRAKE

43100-KN4-A60

$166.10

CAM, RR. BRAKE

43141-KJ2-000

Unavailable

INDICATOR, RR. BRAKE

43145-400-000

$7.75

SPRING, BRAKE SHOE

43151-GC4-000

$4.56

ARM, RR. BRAKE

43410-KN4-A60

$8.09

DUST SEAL, BRAKE CAM (NOK)

45134-KB7-005

$2.83

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

NUT, HEX. (6MM)

94001-06200-0S

$1.31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

WASHER, SPRING (6MM)

94111-06000

$0.87

ADJUSTER S, R. CHAIN (LEFT SIDE)

95014-10010

$4.03

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

Unavailable
