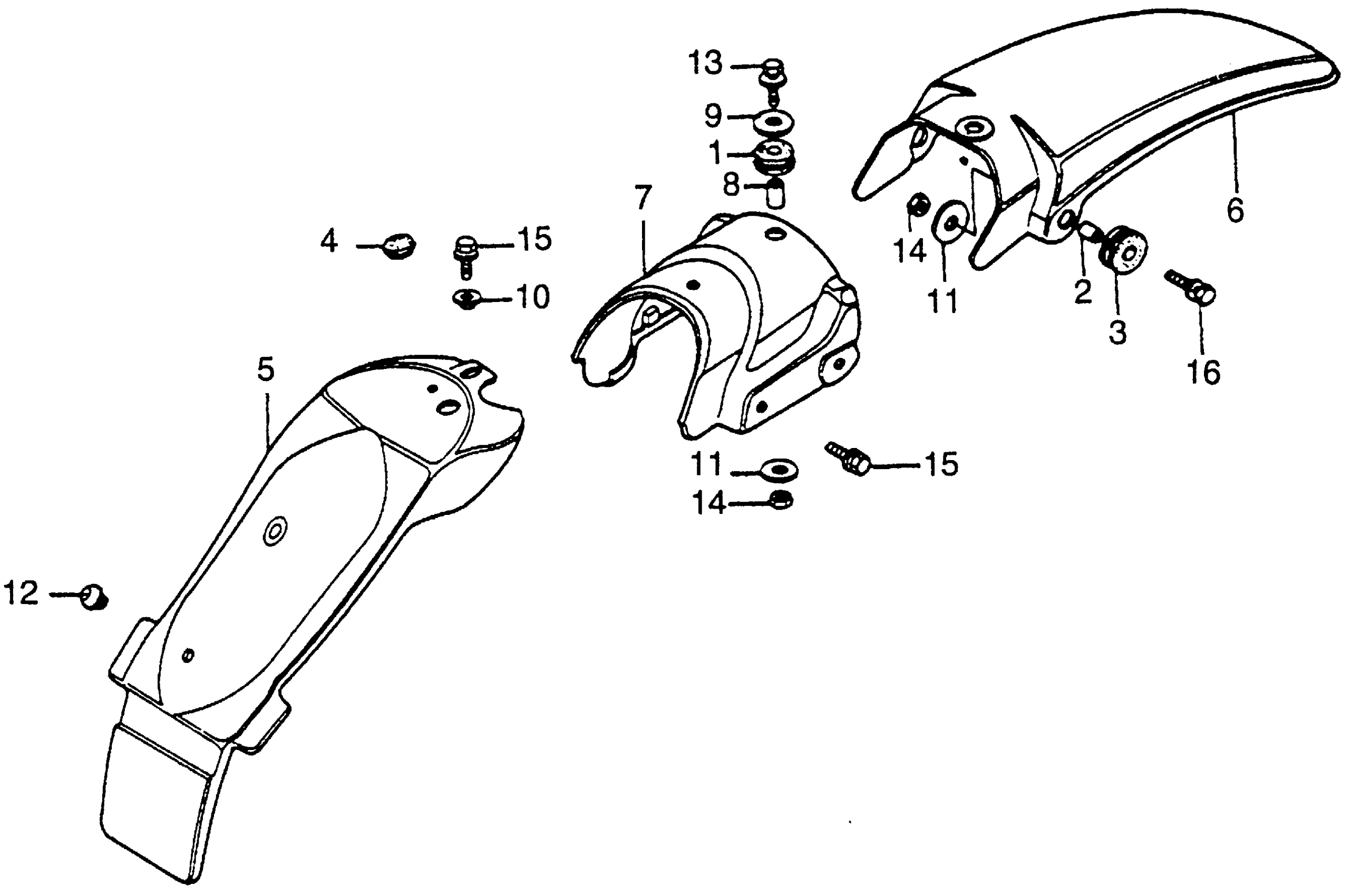

Honda XR100A (84) MOTORCYCLE, JPN, VIN# JH2HE030-EK300001 REAR FENDER Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

COLLAR, RR. TURN SIGNAL STAY

33603-053-650

$1.64

3

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

4

GROMMET A, METER CASE (NOT AVAILABLE)

66218-634-900

Unavailable

5

FENDER B, RR. *R119* (FLASH RED)

80101-152-770ZE

Unavailable

6

FENDER A, RR. *R119* (FLASH RED) (NOT AVAILABLE)

80102-KA9-680ZA

Unavailable

7

FENDER C, RR. *R119* (FLASH RED)

80103-KA9-000ZB

Unavailable

8

COLLAR, LICENSE BRACKET RUBBER

84907-459-670

Unavailable

9

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

10

WASHER B, CHAIN CASE SETTING

90554-240-000

$1.73

11

WASHER, WHEEL (6MM)

90563-355-000

$3.13

12

PLUG, CONE

90899-385-000

$3.53

13

BOLT-WASHER (6X28)

93401-06028-00

$1.49

13

BOLT-WASHER (6X28) This part replaces 93481-06028-00.

93401-06028-00

$1.49

14

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

15

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

15

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
