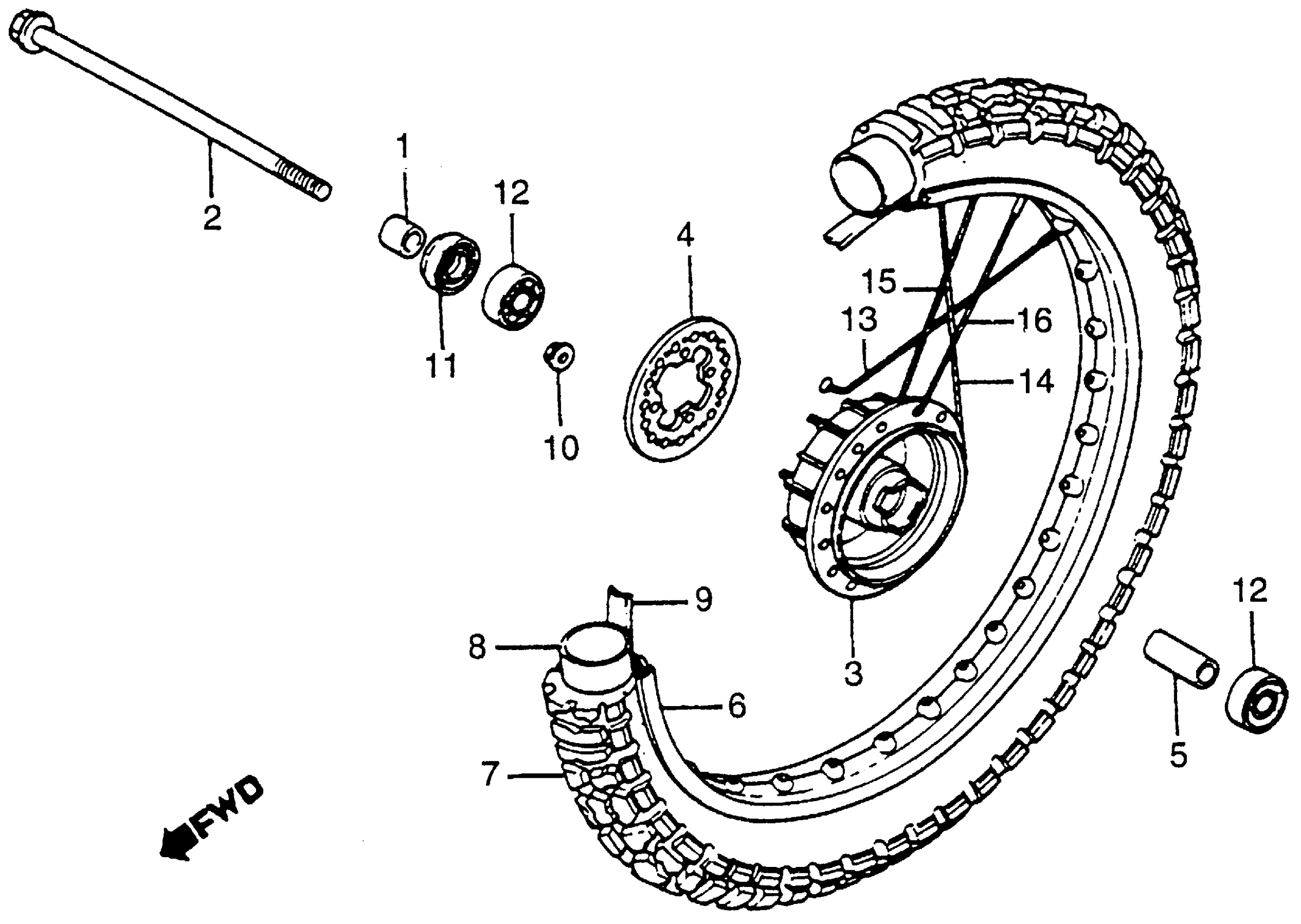

Honda XR100A (84) MOTORCYCLE, JPN, VIN# JH2HE030-EK300001 FRONT WHEEL 83-84 Diagram

#

Description
Price

1

COLLAR, RR. WHEEL SIDE

42311-166-000

Unavailable

2

AXLE, FR. WHEEL This part replaces 44301-GE2-000.

44301-GCF-670

$25.82

3

HUB SUB, FR. WHEEL *NH105* (MAT BLACK)

44602-437-000ZA

Unavailable

4

FLANGE, FR. SPOKE

44610-437-000

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-400-000

$9.33

6

RIM, FR. WHEEL (1.40X19) (DAIDO)

44701-364-711

Unavailable

7

TIRE, FR. (2.50-19) (4PR/41L M23) (BS)

44711-KA9-671

$121.11

8

TUBE, TIRE (2.50-19) (IRC) This part replaces 44712-167-003.

44712-167-005

Unavailable

8

TUBE, TIRE (2.50-19) (IRC)

44712-167-005

Unavailable

9

FLAP, TIRE (100/90-19) (57S) (BS)

44713-MR1-671

$7.32

9

FLAP, TIRE (BS) This part replaces 44713-110-003.

44713-MR1-671

$7.32

10

NUT, DRIVEN SPROCKET (TOKAI)

90352-122-003

$4.39

11

OIL SEAL (23X37X7)

91252-030-003

Unavailable

11

OIL SEAL (23X37X7) This part replaces 91252-030-005.

91252-030-003

Unavailable

12

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

13

SPOKE SET A (11X212)

97114-31264-K0

$2.52

14

SPOKE SET A (11X183.5)

97226-31207-K0

Unavailable

15

SPOKE SET A (11X211.5)

97272-31263-K0

Unavailable

16

SPOKE SET A (11X183)

97436-31206-K0

Unavailable
