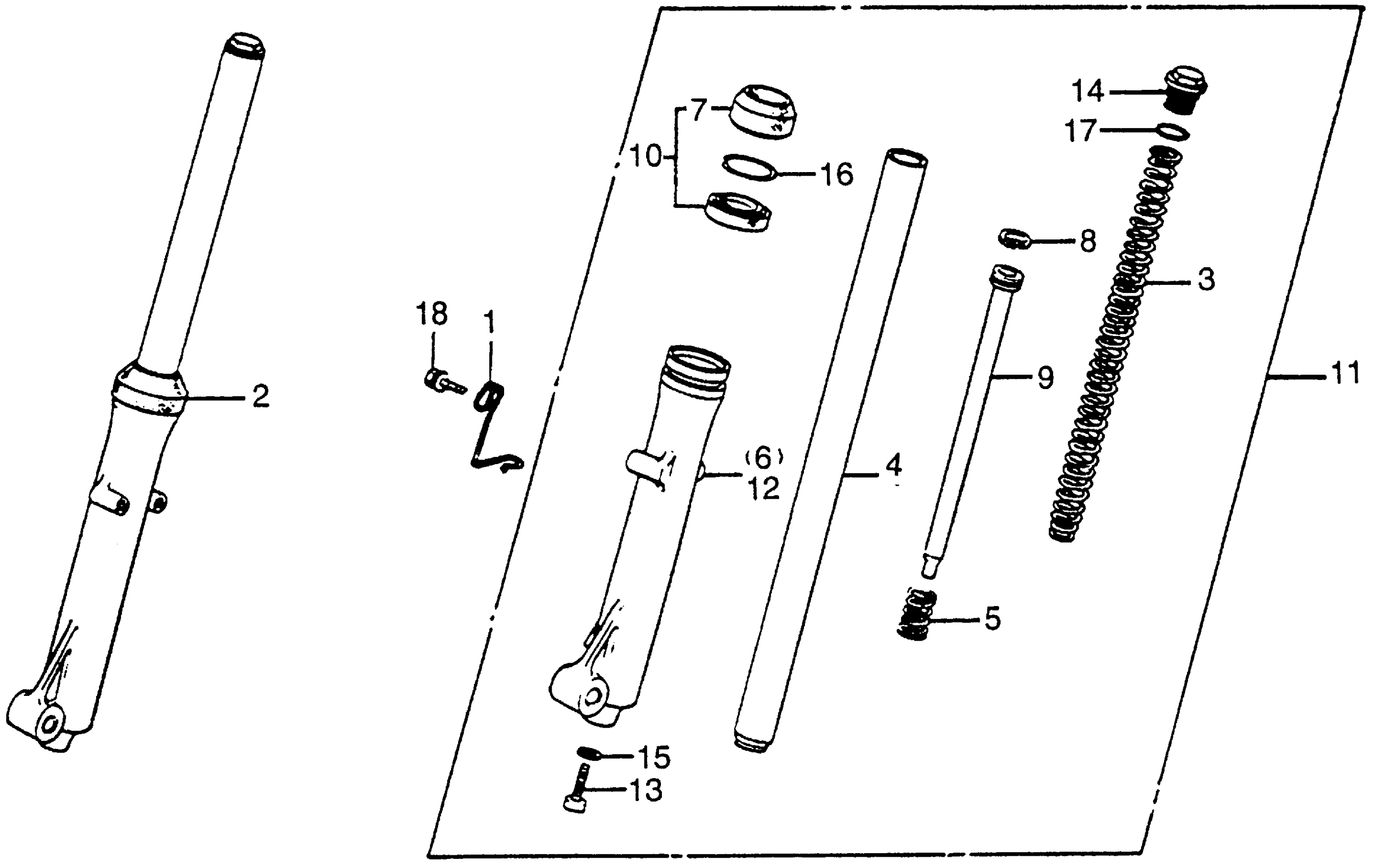

Honda XR100A (84) MOTORCYCLE, JPN, VIN# JH2HE030-EK300001 FRONT FORK 83-84 Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE

45469-KA9-680

Unavailable

2

SHOCK ABSORBER ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-KA8-711

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-KA8-711

Unavailable

4

PIPE, FR. FORK

51410-KA8-711

Unavailable

5

SPRING, REBOUND (SHOWA)

51412-KA8-711

$7.74

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51421-KA8-711

Unavailable

7

DUST SEAL, FR. FORK

51425-149-841

Unavailable

8

RING, PISTON

51437-GM0-003

$5.07

8

RING, PISTON This part replaces 51437-383-721.

51437-GM0-003

$5.07

9

PIPE, SEAT (NOT AVAILABLE)

51470-KA8-711

Unavailable

10

SEAL SET, FR. FORK

51490-149-840

$32.63

11

SHOCK ABSORBER ASSY., L. FR. (SHOWA)

51500-KA8-711

Unavailable

12

CASE, L. FR. FORK (LOWER)

51521-KA8-711

Unavailable

13

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

14

BOLT, FORK

90123-KA8-771

$25.54

15

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

16

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

17

O-RING (17.8X2.4) (SHOWA)

91256-383-721

$2.30

18

BOLT-WASHER (6X12)

93411-06012-08

$1.55

18

BOLT-WASHER (6X12) This part replaces 93481-06012-08.

93411-06012-08

$1.55
