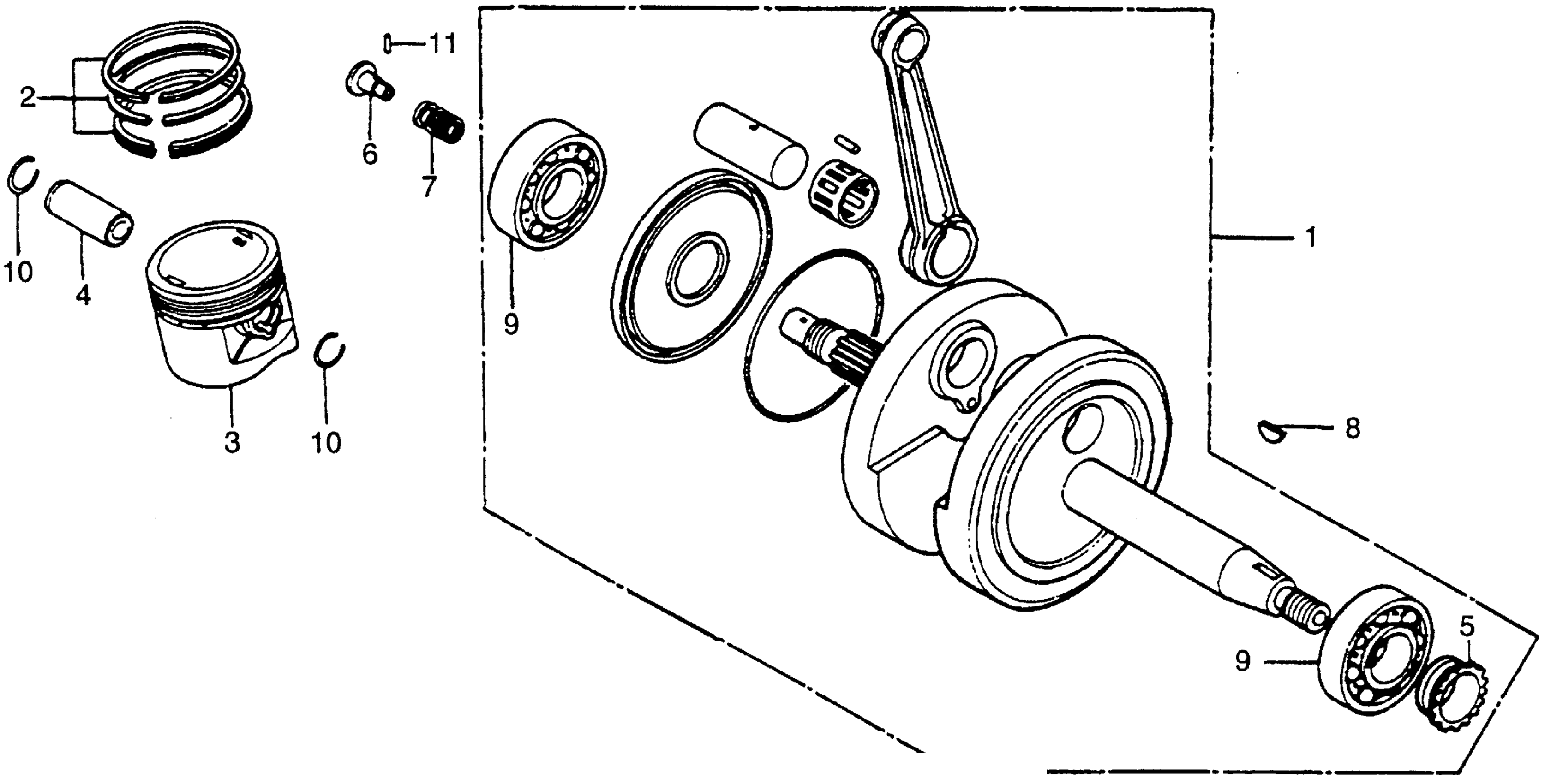

Honda XR100A (84) MOTORCYCLE, JPN, VIN# JH2HE030-EK300001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-KA9-000

Unavailable

2

RING SET, PISTON

13011-KB4-305

$40.71

2

RING SET, PISTON This part replaces 13011-436-000.

13011-KB4-305

$40.71

2

RING SET, PISTON (OS 0.25) | (Optional).

13012-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13013-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-436-000.

13012-KB4-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-436-000.

13013-KB4-305

Unavailable

3

PISTON (STD)

13101-436-000

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-436-000

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-436-000

Unavailable

4

PIN, PISTON

13111-028-000

$11.08

5

SPROCKET, TIMING (15T)

14311-436-300

$35.89

6

THROUGH, OIL

15441-149-000

$10.12

7

SPRING, OIL THROUGH

15447-149-000

$2.92

8

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

9

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$24.38

9

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-003.

91002-KY4-901

$24.38

9

BEARING, RADIAL BALL (63/22) This part replaces 91001-436-008.

91002-KY4-901

$24.38

9

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$24.38

10

CLIP, PISTON PIN (14MM)

94601-14000

$1.49

11

ROLLER (2X11.8)

96220-20118

$1.49
