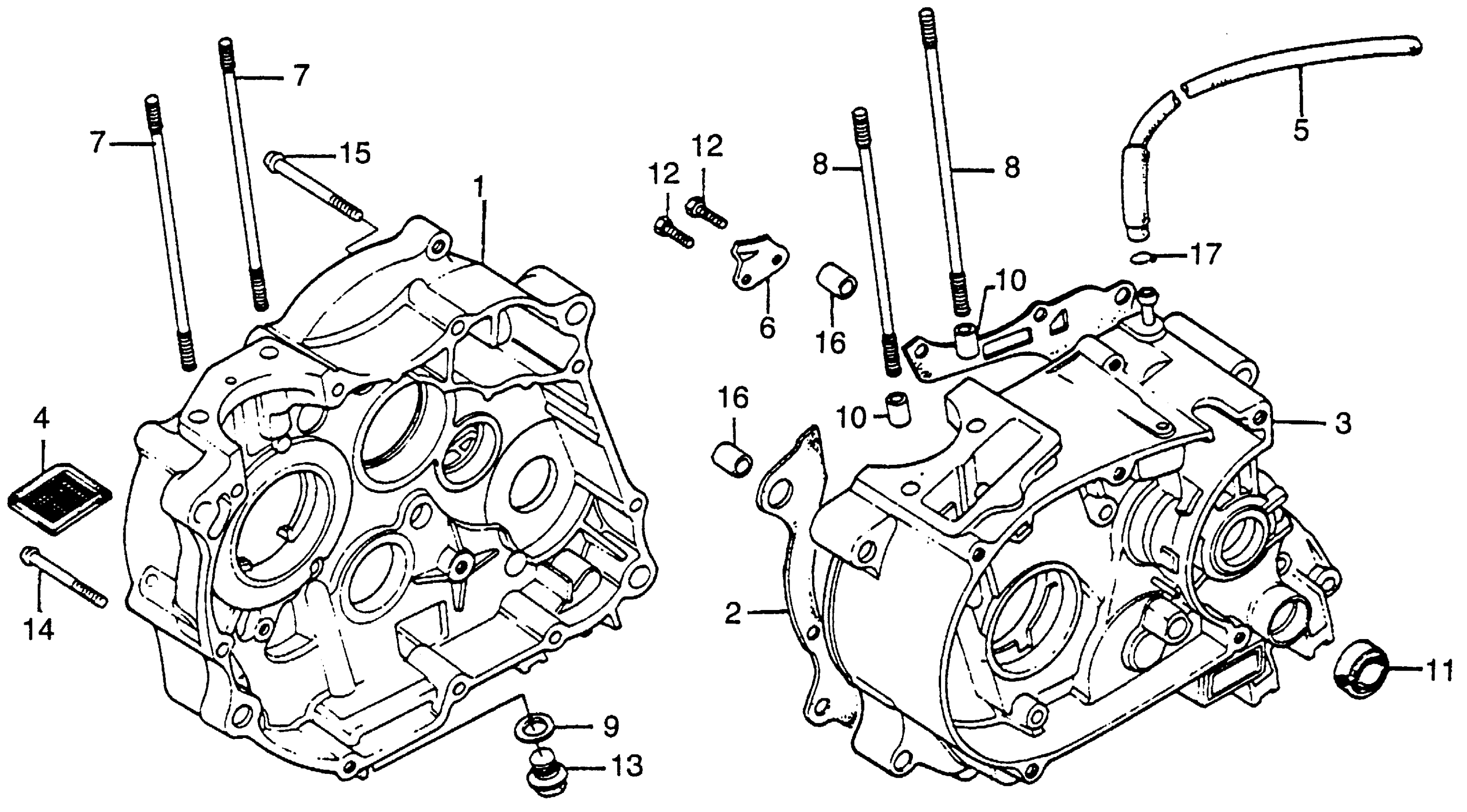

Honda XR100A (84) MOTORCYCLE, JPN, VIN# JH2HE030-EK300001 CRANKCASE Diagram

CRANKCASE, R. (NOT AVAILABLE) This part replaces 11100-KA9-680.

11100-KA9-681

Unavailable

CRANKCASE, R. (NOT AVAILABLE)

11100-KA9-681

Unavailable

GASKET, CRANKCASE This part replaces 11191-KN4-750.

11191-KN4-752

$20.77

GASKET, CRANKCASE This part replaces 11191-436-000.

11191-KN4-752

$20.77

CRANKCASE, L. (NOT AVAILABLE) This part replaces 11200-KA9-680.

11200-KA9-681

Unavailable

CRANKCASE, L. (NOT AVAILABLE)

11200-KA9-681

Unavailable

SCREEN, OIL FILTER

15421-035-010

$3.80

TUBE, BREATHER (NOT AVAILABLE)

15761-KA9-000

Unavailable

PLATE, RATCHET GUIDE

28259-149-000

Unavailable

BOLT B, CYLINDER STUD

90032-152-000

$6.72

BOLT B, CYLINDER STUD

90032-436-000

$12.50

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (10X16)

90701-KA8-000

$3.85

OIL SEAL (12X24X5) (NOK) This part replaces 91203-436-003.

91203-436-004

$6.16

OIL SEAL (12X24X5) (NOK)

91203-436-004

$6.16

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

SCREW, PAN (6X55)

93500-06055-0A

$1.49

PIN A, DOWEL (12X20)

94301-12200

$2.29

CLIP, TUBE (B12.5)

95002-02130

$1.49
