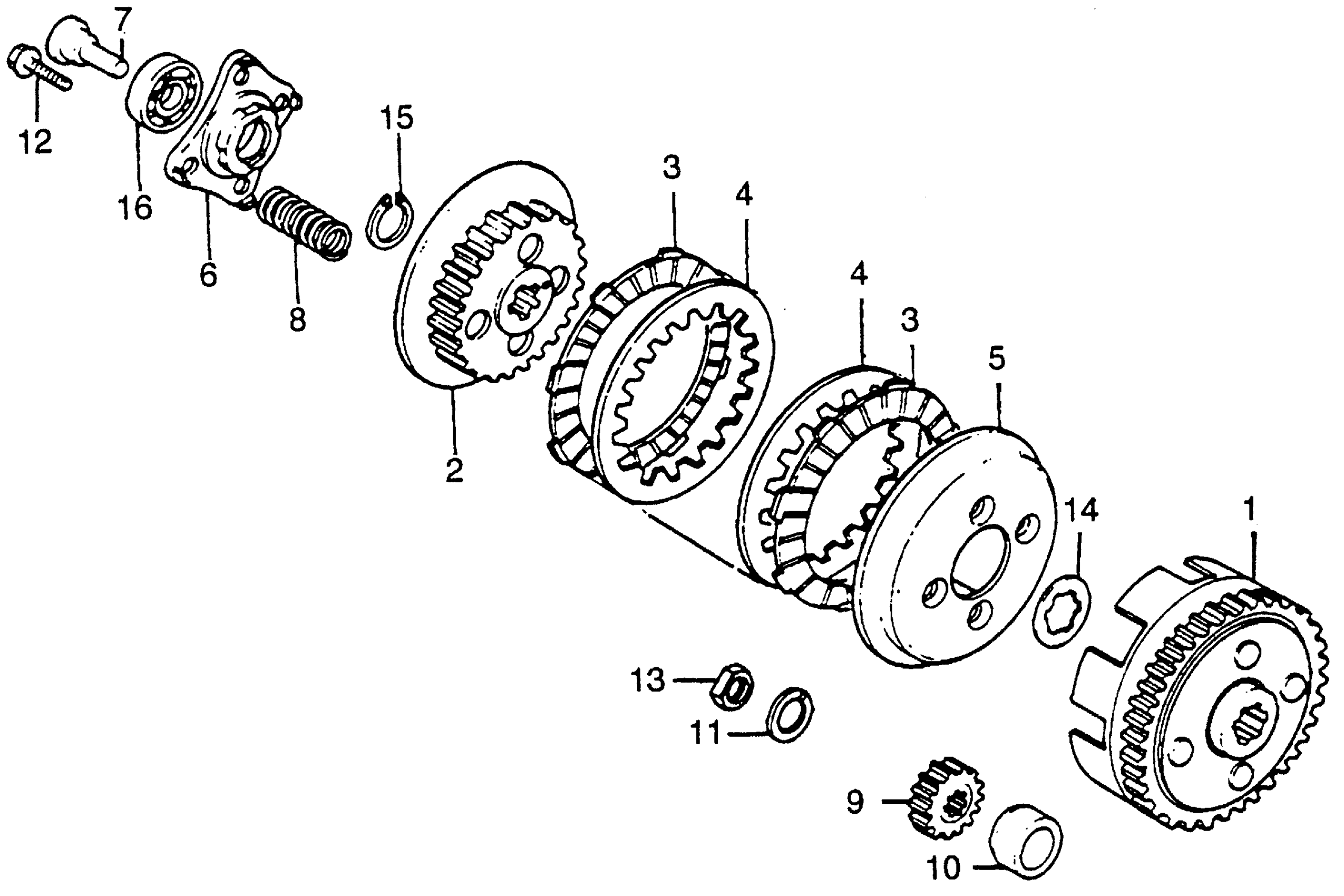

Honda XR100A (84) MOTORCYCLE, JPN, VIN# JH2HE030-EK300001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-436-000

Unavailable

2

CENTER, CLUTCH

22121-168-000

Unavailable

2

CENTER, CLUTCH

22121-436-000

Unavailable

3

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

3

DISK, CLUTCH FRICTION

22201-166-000

$17.44

4

PLATE, CLUTCH

22311-KN4-680

$6.31

4

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

5

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

6

PLATE, CLUTCH LIFTER

22361-107-000

$17.55

7

PIN, CLUTCH LIFTER GUIDE

22366-115-000

$31.49

8

SPRING, CLUTCH This part replaces 22401-153-000.

22401-198-710

Unavailable

8

SPRING, CLUTCH

22401-198-710

Unavailable

9

GEAR, PRIMARY DRIVE (16T)

23121-149-000

Unavailable

10

COLLAR, PRIMARY DRIVE GEAR

23122-436-000

Unavailable

11

WASHER, LOCK

90033-115-000

Unavailable

12

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

13

NUT, SPECIAL (14MM)

90201-836-000

Unavailable

14

WASHER B, SPLINE (17MM)

90462-115-010

$5.33

15

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

16

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
