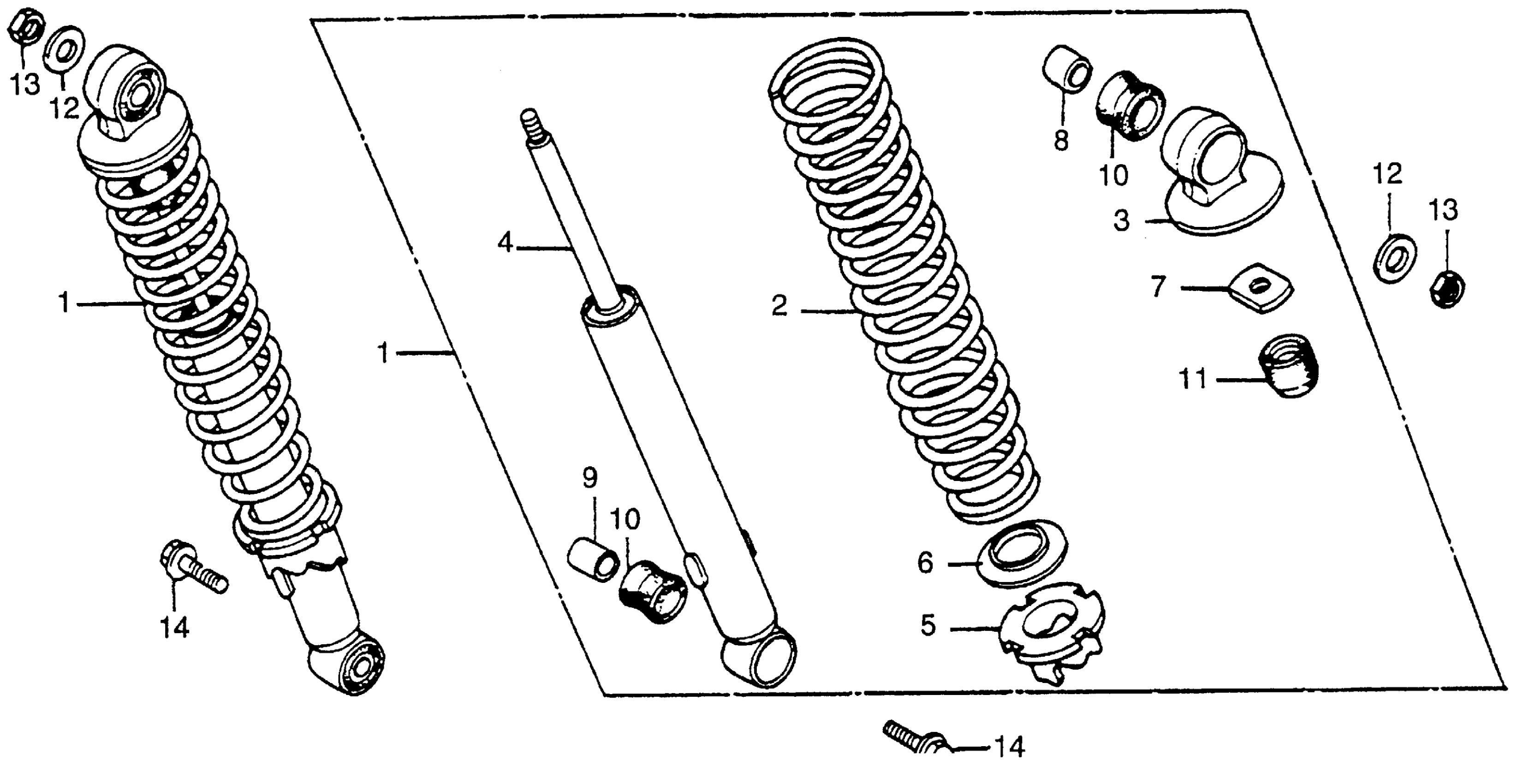

Honda XR100A (83) MOTORCYCLE, JPN, VIN# JH2HE030-DK200003 TO JH2HE030-DK205436 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-KA8-003

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-167-611

Unavailable

3

METAL, RR. SHOCK ABSORBER (UPPER)

52403-167-003

Unavailable

4

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-KA8-003

Unavailable

5

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

6

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-317-700

Unavailable

7

NUT, LOCK (9MM)

52482-175-621

Unavailable

8

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH

52486-056-000

Unavailable

9

COLLAR, RR. SHOCK ABSORBER RUBBER BUSH (UPPER) (NOT AVAILABLE)

52488-063-000

Unavailable

10

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$5.90

11

RUBBER, STOPPER (NOT AVAILABLE)

52517-175-621

Unavailable

12

WASHER, SPROCKET SETTING

90551-033-000

$1.58

13

NUT, HEX. (10MM)

94001-10000-0S

$1.32

14

BOLT, FLANGE (10X35) This part replaces 95700-10035-00.

95701-10035-00

$1.38

14

BOLT, FLANGE (10X35)

95701-10035-00

$1.38
