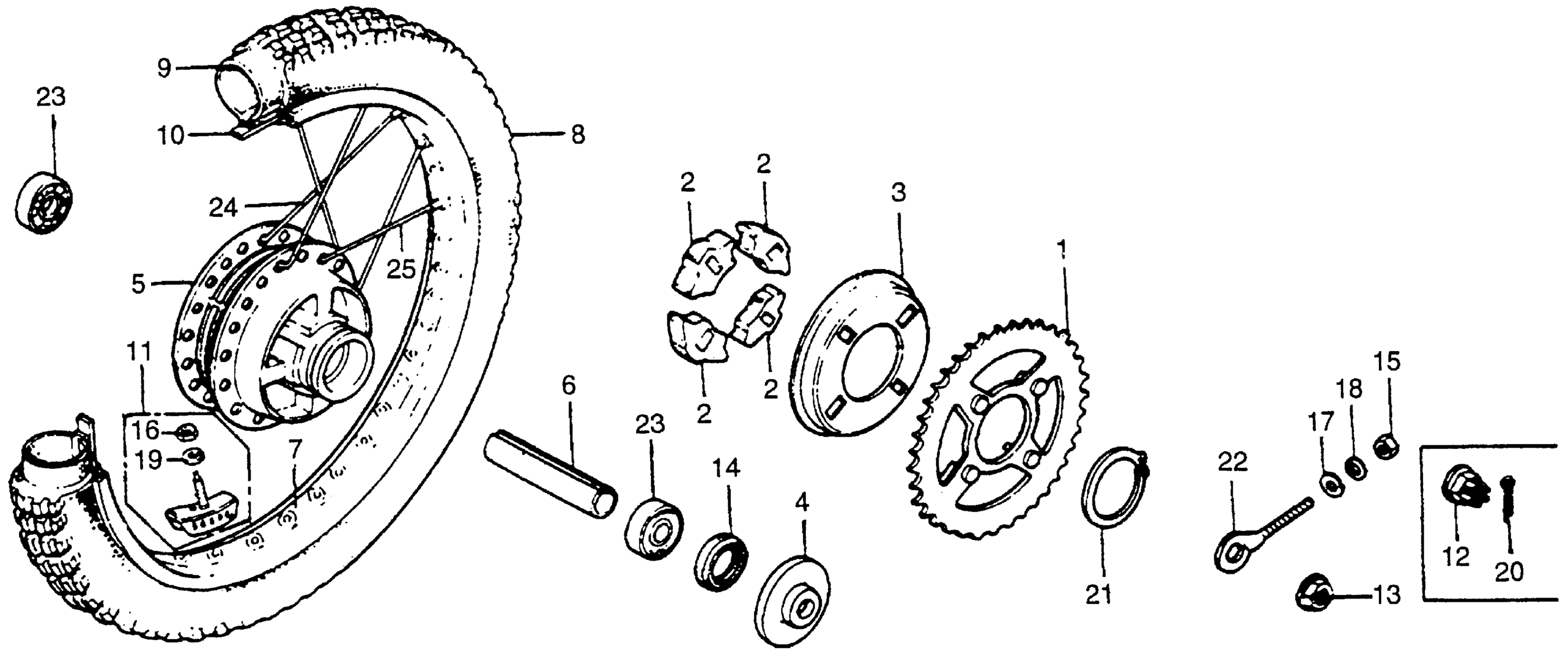

Honda XR100A (82) MOTORCYCLE, JPN, VIN# JH2HE030-CK100004 TO JH2HE030-CK109518 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (50T) (NOT AVAILABLE)

41201-KA9-000

Unavailable

2

DAMPER, RR. WHEEL

41241-028-940

$8.78

2

DAMPER, RR. WHEEL This part replaces 41241-459-670.

41241-028-940

$8.78

3

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42304-KA8-000

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK) This part replaces 42601-153-600ZA.

42601-153-600ZB

Unavailable

5

HUB, RR. WHEEL *NH105* (MAT BLACK)

42601-153-600ZB

Unavailable

6

COLLAR, RR. AXLE DISTANCE

42620-051-000

Unavailable

7

RIM, RR. WHEEL This part replaces 42701-KA9-003.

42701-KA9-405

Unavailable

8

TIRE, RR. (3.00-16) (4PR/43P M22) (BS)

42711-KA9-671

$101.92

9

TUBE, WHEEL (2.75/3.00-16) (IRC) This part replaces 42712-167-003.

42712-167-005

Unavailable

9

TUBE, WHEEL (2.75/3.00-16) (IRC)

42712-167-005

Unavailable

10

FLAP, TIRE (1.60-14) (BS)

42713-GC4-003

$6.69

10

FLAP, TIRE (1.60-14) (BS) This part replaces 42713-118-003.

42713-GC4-003

$6.69

11

STOPPER, BEAD (1.60) (NOT AVAILABLE)

44715-444-000

Unavailable

12

NUT, AXLE (12MM)

90305-169-000

$6.28

14

OIL SEAL (26X37X6)

90753-051-003

$7.66

14

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

NUT, HEX. (8MM)

94001-08020-0S

$1.49

17

WASHER, PLAIN (6MM)

94103-06000

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

22

ADJUSTER S, R. CHAIN

95014-10010

$4.53

23

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

24

SPOKE B (10X146.0)

97284-42132-K0

$3.01

25

SPOKE B (10X145.5)

97714-42131-K0

$3.01
