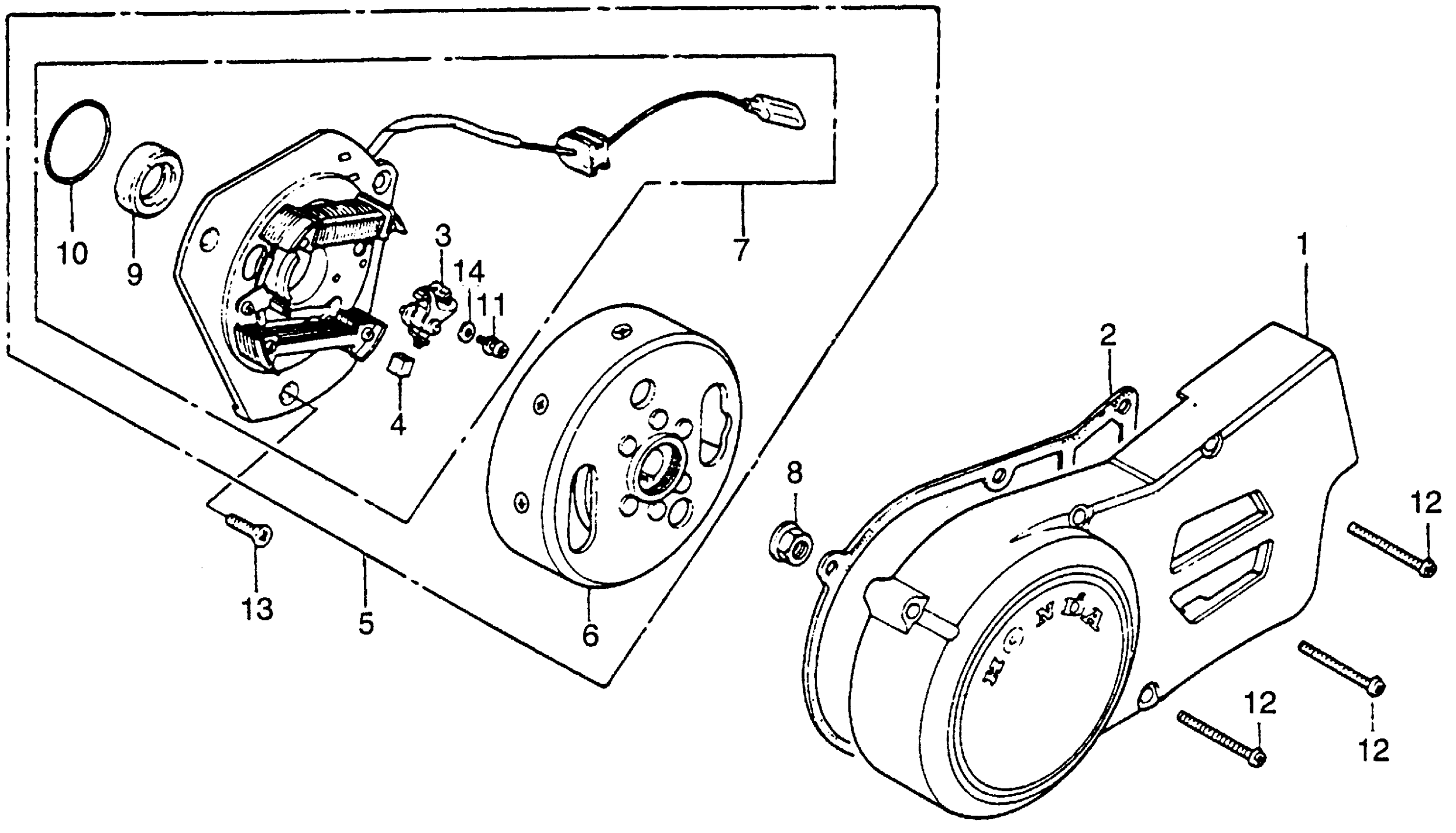

Honda XR100A (82) MOTORCYCLE, JPN, VIN# JH2HE030-CK100004 TO JH2HE030-CK109518 LEFT CRANKCASE COVER + ALTERNATOR Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-KA8-000

Unavailable

GASKET, L. This part replaces 11394-KN4-750.

11394-KN4-752

$11.61

GASKET, L. This part replaces 11394-436-000.

11394-KN4-752

$11.61

POINTS (HITACHI)

30202-041-015

$29.26

FELT, OIL (HITACHI)

30205-041-005

$3.83

ALTERNATOR ASSY., FLYWHEEL TYPE (HITACHI) (NOT AVAILABLE)

31100-KA9-005

Unavailable

FLYWHEEL (HITACHI)

31110-KA9-005

Unavailable

STATOR (HITACHI)

31120-KA9-005

Unavailable

NUT, FLANGE (12MM)

90309-375-003

$8.61

OIL SEAL (21X36X7) This part replaces 91202-436-003.

91202-436-004

$7.70

OIL SEAL (21X36X7)

91202-436-004

$7.70

O-RING (43X2.5)

91303-436-003

$7.05

SCREW, PAN (4X8)

93500-04008-0A

$1.49

SCREW, PAN (4X8) This part replaces 93500-04009-0A.

93500-04008-0A

$1.49

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49
