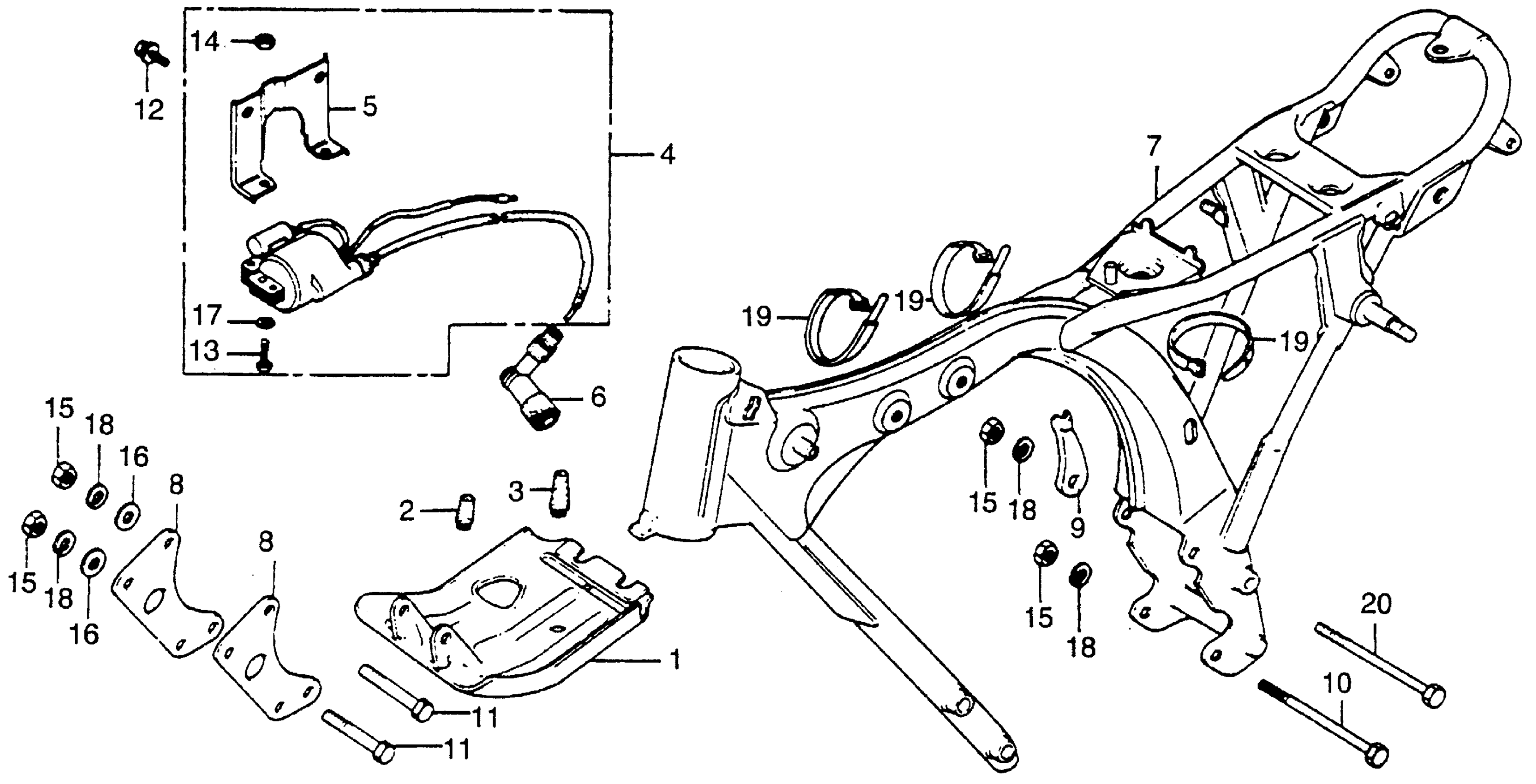

Honda XR100A (82) MOTORCYCLE, JPN, VIN# JH2HE030-CK100004 TO JH2HE030-CK109518 FRAME + IGNITION COIL Diagram

#

Description
Price

1

PROTECTOR, CRANKCASE (NOT AVAILABLE)

11911-195-000

Unavailable

2

RUBBER A, CRANKCASE PROTECTOR (NOT AVAILABLE)

11912-195-000

Unavailable

3

RUBBER B, CRANKCASE PROTECTOR (NOT AVAILABLE)

11913-195-000

Unavailable

4

COIL ASSY., IGNITION (W/CONDENSER)

30500-176-771

Unavailable

5

STAY, IGNITION COIL SETTING (NOT AVAILABLE)

30501-176-771

Unavailable

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

7

FRAME *R23* (TAHITIAN RED)

50100-KA9-000ZA

Unavailable

8

PLATE, FR. ENGINE HANGER *R23* (TAHITIAN RED) (NOT AVAILABLE)

50351-177-620ZB

Unavailable

9

RECEIVER, CLUTCH CABLE (NOT AVAILABLE)

50356-149-000

Unavailable

10

BOLT, HEX. (8X95) (NOT AVAILABLE)

90102-149-000

Unavailable

11

BOLT, FLANGE (8X65)

90156-MA0-770

$7.31

11

BOLT, HEX. (8X65)

90157-KA9-000

$8.03

12

BOLT-WASHER (6X16)

93402-06016-00

$1.73

12

BOLT-WASHER (6X16) This part replaces 93482-06016-00.

93402-06016-00

$1.73

13

SCREW, PAN (6X20)

93500-06020-0H

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06080.

94001-06080-0S

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06080-08.

94001-06080-0S

$1.49

14

NUT, HEX. (6MM)

94001-06080-0S

$1.49

15

NUT, HEX. (8MM)

94030-08000

$1.49

16

WASHER, PLAIN (8MM)

94101-08000

$1.49

17

WASHER, SPRING (6MM)

94111-06800

$1.49

18

WASHER, SPRING (8MM)

94111-08000

$1.49

19

BAND A3, CABLE

95014-61300

$1.97

20

BOLT, HEX. (8X100)

95300-08100-00

Unavailable
