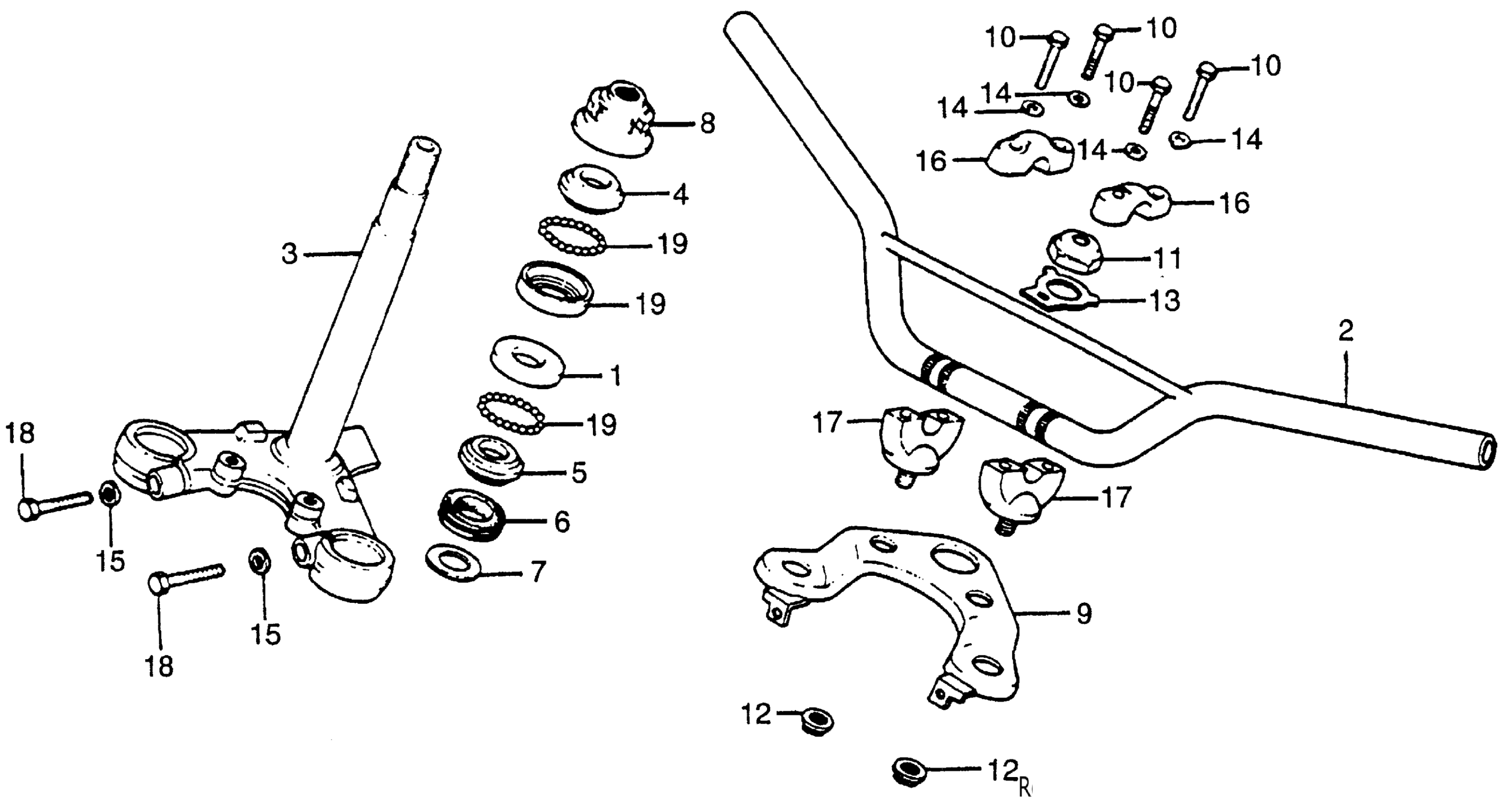

Honda XR100A (81) MOTORCYCLE, JPN, VIN# JH2HE030-BK000016 TO JH2HE030-BK006122 HANDLEBAR + TOP BRIDGE + STEERING STEM 81 Diagram

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

RACE, STEERING TOP BALL

50301-041-010

$12.39

HANDLEBAR This part replaces 53100-KA9-000.

53100-KA9-010

Unavailable

HANDLEBAR

53100-KA9-010

Unavailable

STEM, STEERING (NOT AVAILABLE)

53200-176-000

Unavailable

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$3.08

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

BRIDGE, FORK TOP (NOT AVAILABLE)

53231-KA9-000

Unavailable

BOLT, HEX. (6X28)

90117-065-000

$2.62

NUT, STEERING STEM

90304-355-010

Unavailable

NUT, STEERING STEM This part replaces 90305-427-770.

90304-355-010

Unavailable

NUT, HEX. (10MM)

90354-115-000

$3.69

WASHER, STEERING STEM (NOT AVAILABLE)

90503-KA8-000

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

HOLDER A2, HANDLEBAR (UPPER)

95014-21201

Unavailable

HOLDER B2, HANDLEBAR (LOWER)

95014-32200

Unavailable

BOLT, HEX. (8X35) (NOT AVAILABLE)

95300-08035-00

Unavailable

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
