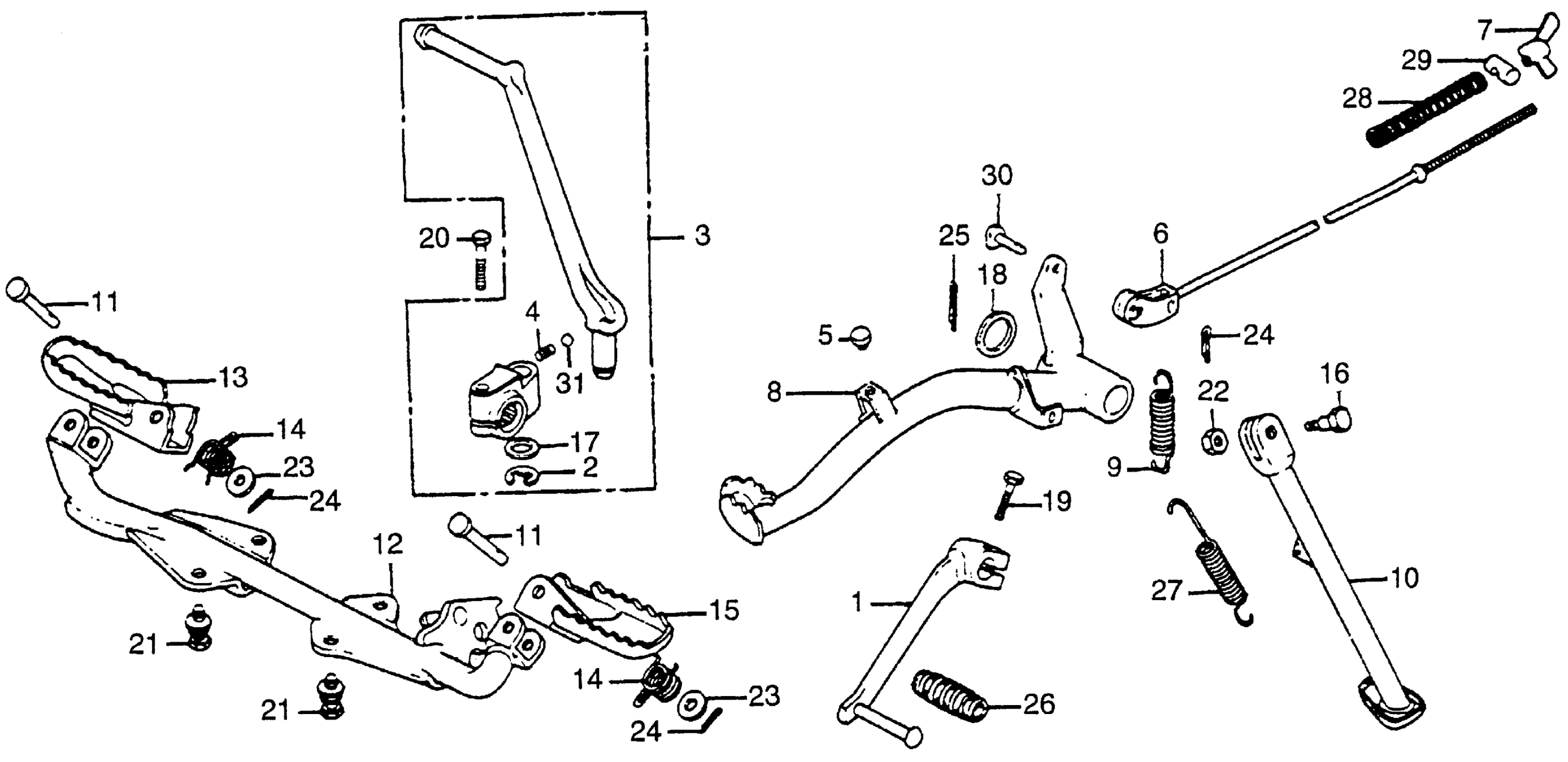

Honda XR100A (81) MOTORCYCLE, JPN, VIN# JH2HE030-BK000016 TO JH2HE030-BK006122 GEARSHIFT PEDAL + SIDE STAND + FOOTPEGS Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-KA9-000

Unavailable

2

CLIP, KICK STARTER ARM

28293-333-000

$2.67

3

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-195-000

Unavailable

4

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

5

PLUG, CHAIN GUARD

40514-333-000

$2.57

6

ROD, RR. BRAKE (NOT AVAILABLE)

43451-KA8-000

Unavailable

7

NUT, BRAKE ADJUST

43459-434-000

$15.27

8

PEDAL, BRAKE (NOT AVAILABLE)

46500-KA8-000

Unavailable

9

SPRING, BRAKE PEDAL

46514-052-000

Unavailable

10

BAR, SIDE STAND (NOT AVAILABLE)

50530-KA9-000

Unavailable

11

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

11

PIN, STEP BAR JOINT

50603-033-010

$3.30

12

BAR, FOOTPEG *NH1* (BLACK) (NOT AVAILABLE)

50610-KA9-000ZA

Unavailable

13

FOOTPEG, R.

50612-167-000

Unavailable

14

SPRING, FOOTPEG RETURN

50617-167-000

$5.34

15

STEP, L.

50642-167-000

Unavailable

16

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

17

WASHER (13X20)

90505-116-670

$2.92

18

WASHER (17X22)

90521-028-000

$1.89

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

20

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

21

BOLT-WASHER (8X20) This part replaces 93413-08020-00.

93403-08020-00

Unavailable

21

BOLT-WASHER (8X20) This part replaces 93483-08020-00.

93403-08020-00

Unavailable

22

NUT, HEX. (10MM)

94002-10000-0S

$4.06

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

24

PIN, COTTER (1.6X25)

94201-16250

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49

26

RUBBER, SHIFT PEDAL

95011-40000

$1.49

27

SPRING A, SIDE STAND

95014-72102

$2.84

28

SPRING A, BRAKE ROD

95014-73100

$1.49

29

JOINT, BRAKE ARM

95015-32001

$1.49

30

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

31

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
