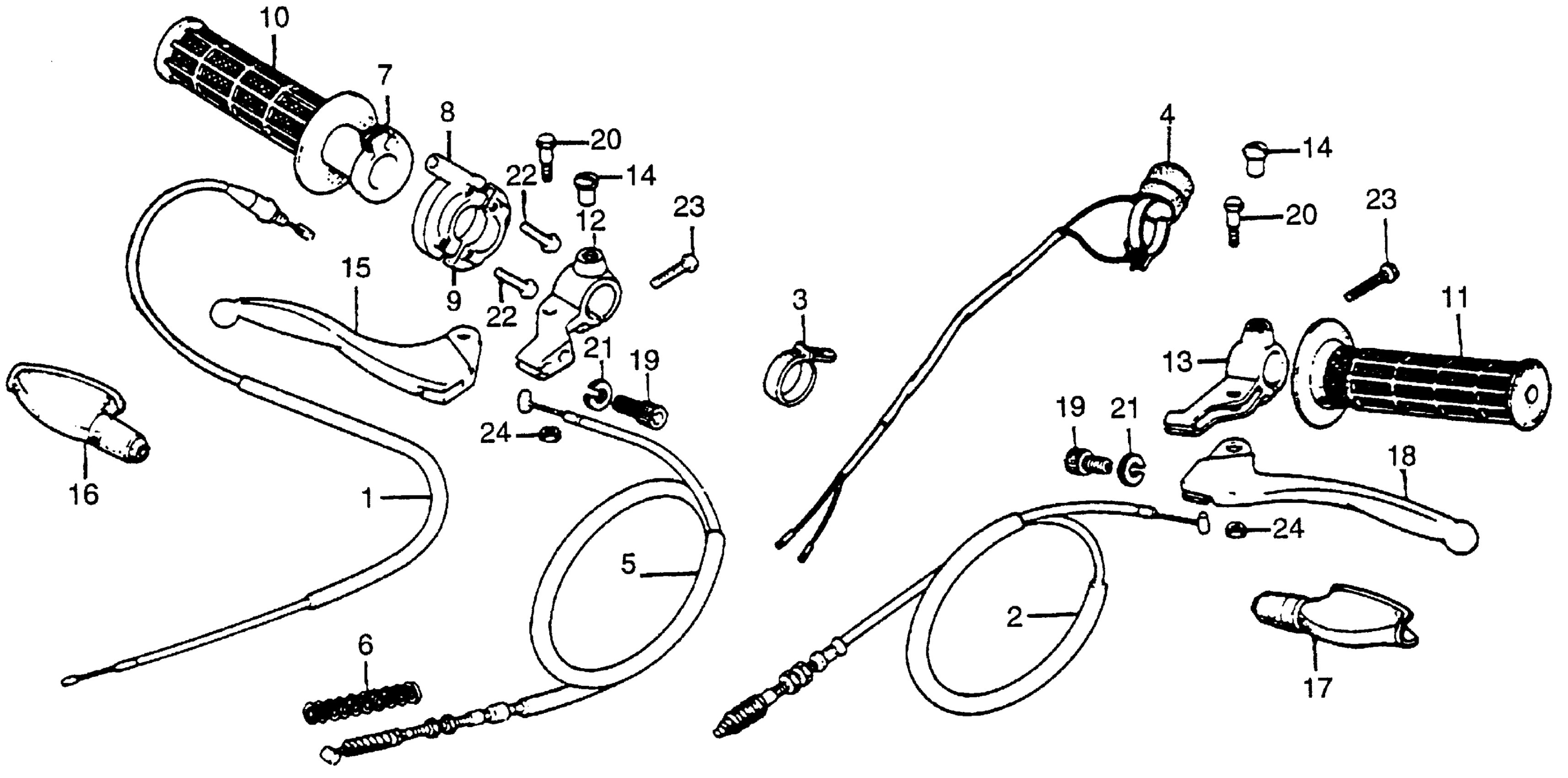

Honda XR100A (81) MOTORCYCLE, JPN, VIN# JH2HE030-BK000016 TO JH2HE030-BK006122 CONTROL LEVERS + SWITCHES + CABLES 81 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-KA9-000

Unavailable

2

CABLE, CLUTCH This part replaces 22870-KA9-000.

22870-KK7-000

Unavailable

2

CABLE, CLUTCH

22870-KK7-000

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., STOP This part replaces 35130-GN1-000.

35130-GN1-010

Unavailable

4

SWITCH ASSY., STOP

35130-GN1-010

Unavailable

4

SWITCH ASSY., STOP This part replaces 35130-176-770.

35130-GN1-010

Unavailable

5

CABLE, FR. BRAKE

45450-GC4-000

Unavailable

5

CABLE, FR. BRAKE This part replaces 45450-KA9-000.

45450-GC4-000

Unavailable

6

SPRING, FR. BRAKE CABLE

45454-360-010

$5.14

7

PIPE, THROTTLE GRIP

53141-153-000

Unavailable

8

CASE (UPPER)

53143-355-000

Unavailable

9

CASE (LOWER)

53144-355-000

Unavailable

10

GRIP, R. HANDLE | Use up to Frame SN 2000000 This part replaces 53165-430-000.

53165-GFW-305

$12.63

11

GRIP, L. HANDLEBAR This part replaces 53166-430-000.

53166-459-910

$9.44

12

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

13

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

14

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

15

LEVER, R. HANDLEBAR This part replaces 53175-149-000.

53175-116-690

$16.94

16

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

17

COVER, L. HANDLEBAR

53177-430-000

$11.00

18

CONTROL LEVER, L. HANDLEBAR

53178-149-000

Unavailable

19

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

20

BOLT, HANDLE LEVER PIVOT

90114-428-870

$4.06

21

NUT, FIXING

90321-315-670

$7.31

21

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

22

SCREW, PAN (5X20)

93500-05020-0A

$1.49

23

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

23

SCREW, PAN (6X25)

93500-06025-0A

$1.49

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
