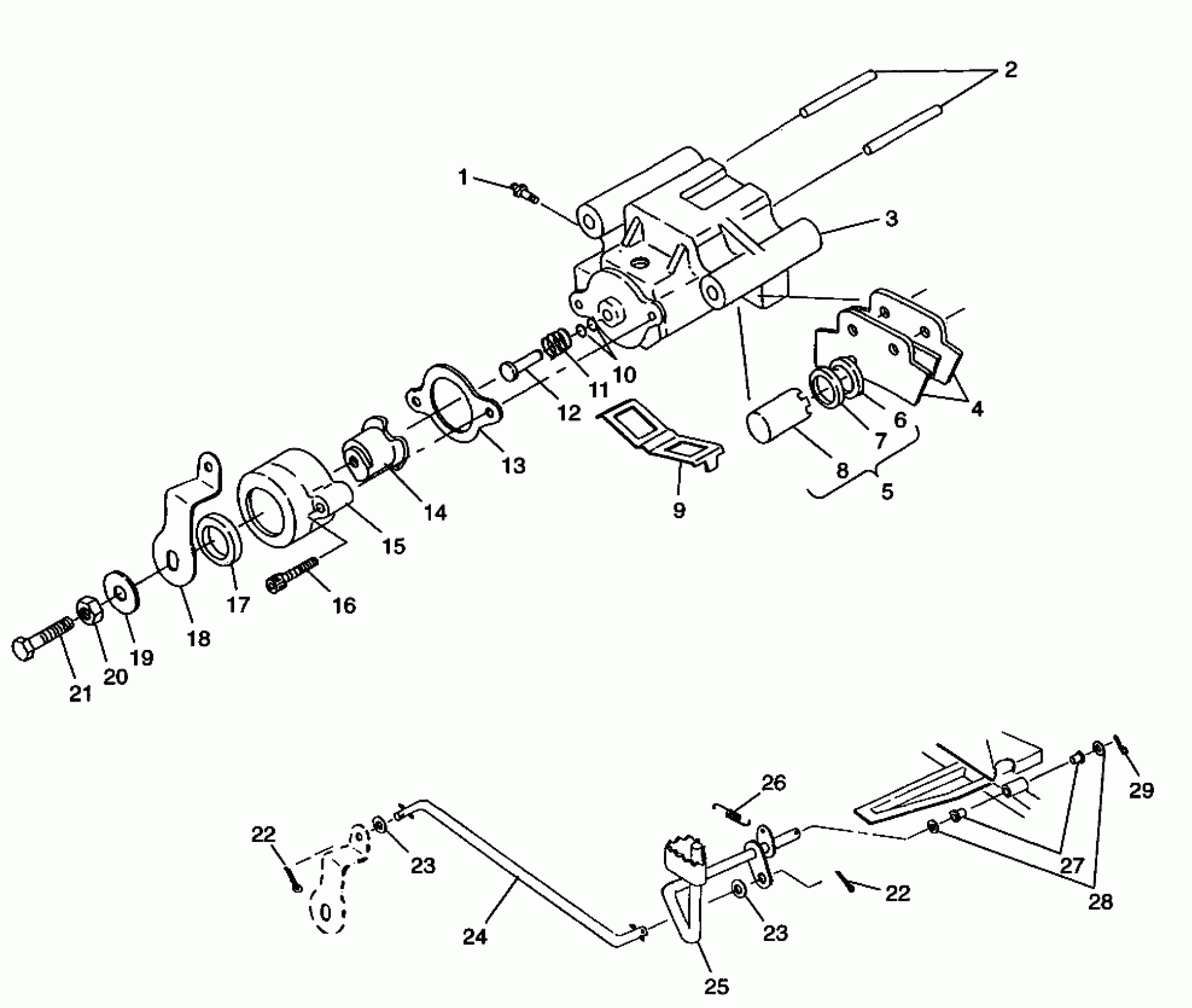

Polaris XPRESS 300 - W98CA28C REAR BRAKE XPRESS 300 W98CA28C (4945364536C003) Diagram

#

Description
Price

1

SCREW,BLEEDER

7080352

$3.17

2

PIN, DOWEL(10)

7661820

$13.99

3

CALIPER,R.BRAKE,MACH

5131272

Unavailable

4

KIT,BRAKEPAD,REAR (Complete set of 2 pads)

2200464

$66.65

4

KIT,R.BRAKEPAD,HVY.DUTY (Complete set of 2 pads)

2200899

Unavailable

4

KIT,REAR BRAKEPADS,ATV

2201150

Unavailable

5

KIT-PISTON & SEAL (Incl. 6-8)

2200463

$97.76

6

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

7

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

8

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

9

SPRING,ANTI-RATTLE

5240993

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

RAMP,MOVE.BRAKE(D/C)

5630651

Unavailable

15

RAMP,STAT.BRAKE(D/C)

5630652

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

Unavailable

18

ARM, BRAKE CALIPER

5211692

Unavailable

19

WASHER, SPRING(10)

7555828

Unavailable

20

NUT(10)

7542129

$4.76

21

BOLT

7515145

Unavailable

22

PIN-COTTER(10)

7661205

$0.79

22

PIN-COTTER(10)

7661205

$0.79

23

WASHER(10)

7555827

$3.97

23

WASHER(10)

7555827

$3.97

24

ROD, BRAKE

5241621

$51.59

25

BRAKE,FOOT,BLK

1040514-067

$159.99

26

SPRING-EXHAUST(10)

7042029

$5.65

27

BUSHING-PEDAL PIVOT

5431107

$8.73

28

WASHER(10)

7555919

$4.99

29

COTTER PIN(10)

7661401

$0.79
