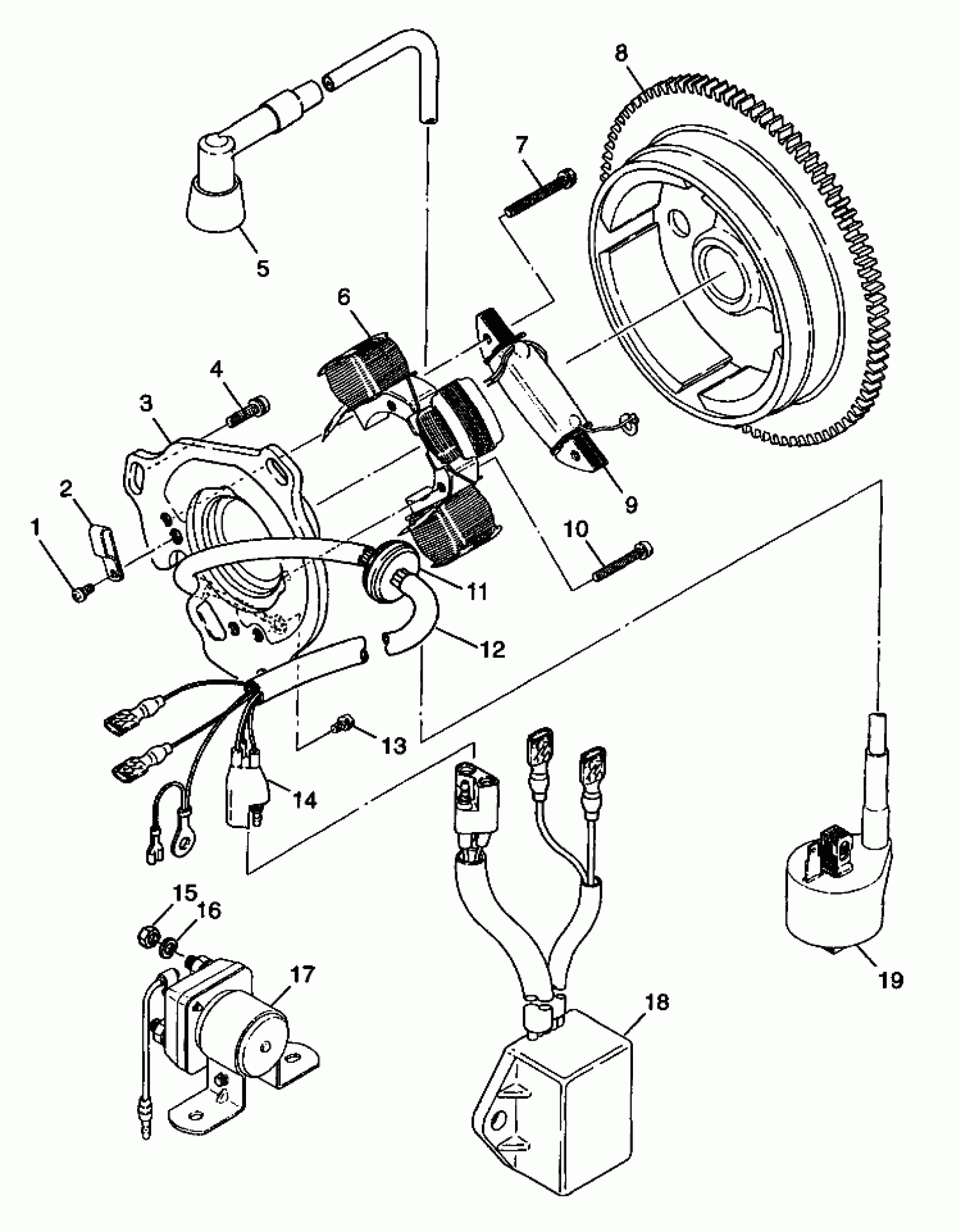

Polaris XPRESS 300 - W98CA28C MAGNETO XPRESS 300 W98CA28C (4945364536C012) Diagram

#

Description
Price

1

SCREW

3081467

Unavailable

2

Clamp

3081296

Unavailable

3

PLATE ASM. (Incl. 1-3, 6, 7, 9-14)

3084814

$368.99

3

PLATE,COIL

3084815

Unavailable

4

SCREW AND WASHER ASSY.(10)

3082226

$1.49

5

CAP SPARK PLUG,(10)

4020129

$9.70

6

STATOR #1

3084817

Unavailable

7

SCREW W/WASHER

3081253

Unavailable

8

FLYWHEEL,W/RING GEAR

3084813

Unavailable

9

Coil, Exciting

3083422

Unavailable

10

SCREW&WASHER ASM.

3084818

$1.75

11

GROMMET

3084819

Unavailable

12

HARNESS,WIRE (Incl. 11, 14)

3084816

Unavailable

13

SCREW&WASHER,(10)

3081260

$3.19

14

COUPLER

3083909

$23.99

15

Nut

3083073

$2.39

15

Nut

3083073

$2.39

17

SWITCH,MAGNETIC *

3085521

$60.70

18

CDI SYSTEM

3084820

Unavailable

19

COIL, IGNITION *

3083923

Unavailable
