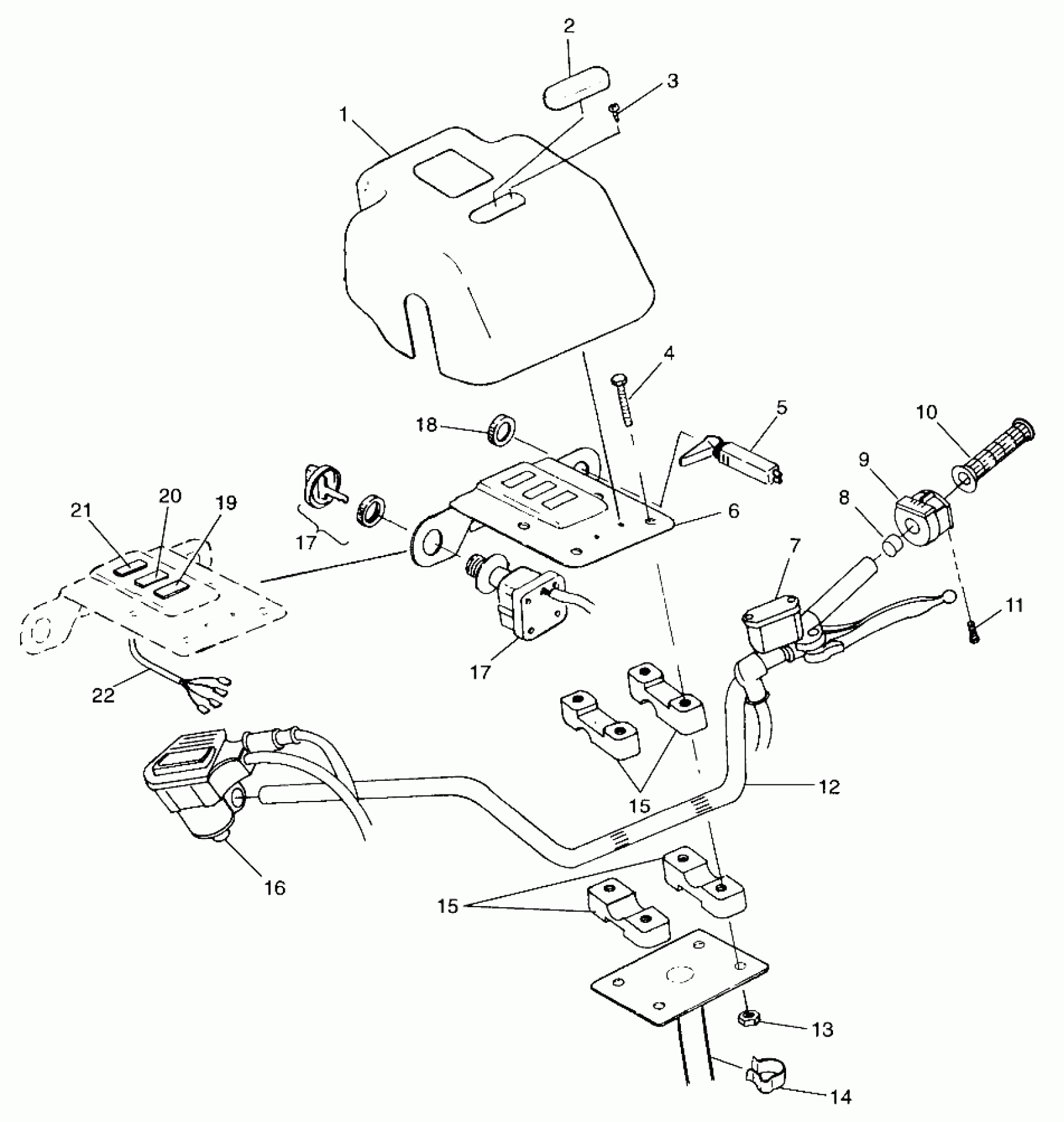

Polaris XPRESS 300 - W98CA28C HANDLEBAR XPRESS 300 W98CA28C (4945364536B005) Diagram

#

Description
Price

1

PANEL,INST.,BLK

5432246-070

Unavailable

2

COVER-LOGO, BLK

5432247-070

Unavailable

3

SCREW,(10)

7512024

$4.79

4

Screw

7517216

Unavailable

5

CABLE,CHOKE CONTROL

7080579

$97.13

5

KIT-CHOKE CONTROL

2200188

$24.27

6

BRKT,INST.PANEL,BLK

5241397-067

$24.79

7

Asm., Master Cylinder (See Pg. NO TAG for Details)

-------

Unavailable

8

SPACER-PLASTIC (.88)

5433198

Unavailable

9

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

10

GRIP, HANDLEBAR

5431030

$24.27

11

SCREW

2010055

Unavailable

12

Tube, Handlebar [AA][AB]

5224715-067

Unavailable

13

NUT-1/4-20-(NYLOK)-Y

7542122

$1.49

14

CLIP,CABLE RETAIN,(10)

7080631

$6.29

15

BLOCK,H'BAR,(300)

5630629

$11.59

16

THROTTLE CONTROL ASM

2010159

Unavailable

16

THROTTLE CONTROL ASM

2010159

Unavailable

17

COVER, KEY Substituted by 5433534 NOTE: Ignition Key may be ordered by using the four digit number on the key

5431964

Unavailable

17

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

17

COVER, KEY Substituted by 5433534 NOTE: Ignition Key may be ordered by using the four digit number on the key

5431964

Unavailable

17

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

18

Nut, Choke, Slide

7080229

$19.99

19

Plug, Indicator Hole[AA][AB]

5430967

$5.65

20

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

21

Indicator, Neutral/Reverse

4040054

$31.99
