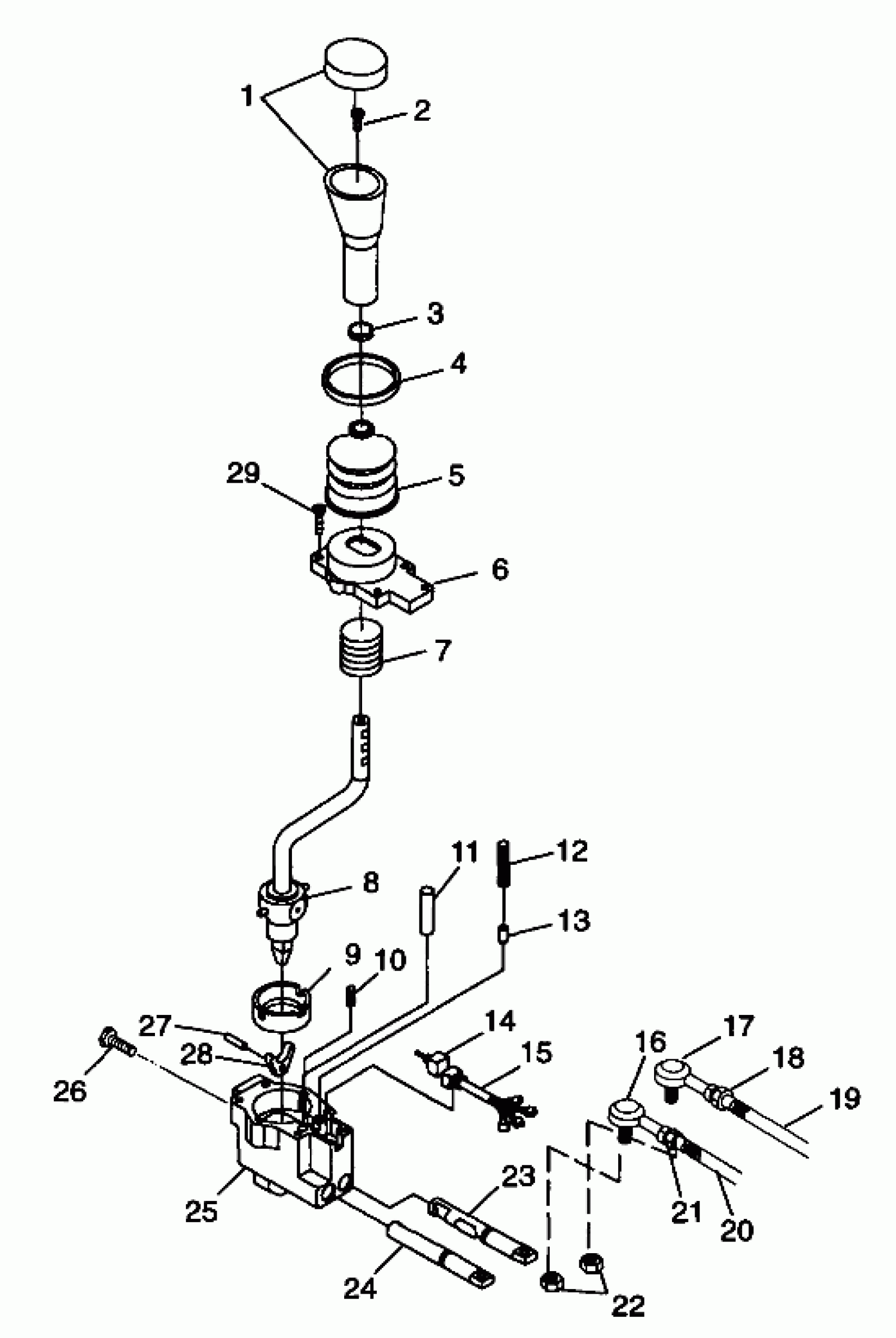

Polaris XPRESS 300 - W98CA28C GEAR SELECTOR XPRESS 300 W98CA28C (4945364536C006) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,300 (Incl. 1-15, 23-25, 27-29)

1341264

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

Unavailable

2

SCREW,(10)

7512024

$4.76

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$80.74

6

COVER,GEAR SELECTOR

3233213

Unavailable

7

SPRING,HOLDING

3233158

Unavailable

8

HANDLE,SUBASM,GS GEN IV

3233456

Unavailable

9

CUP,BEARING

3233063

$15.87

10

SPRING,CENTERING

3233083

Unavailable

11

PIN, STOP

3233062

Unavailable

12

SPRING,DETENT

3233069

Unavailable

13

BULLET,DETENT

3233060

$69.99

14

SWITCH,GEAR SELECTOR

3233215

Unavailable

15

STRAP, WIRE

3233090

$1.97

16

ROD END,RH,6MM.

7061014

$75.99

17

ROD END,LH,6MM.

7061013

$75.99

18

NUT(10)

7546702

$1.19

19

ROD,SHIFTLINK,LOW

5020936

Unavailable

20

ROD,SHIFTLINK,HI RANGE Substituted by 5020729

5020690

Unavailable

21

NUT(10)

7546701

$3.97

22

NUT(10) Substituted by 7546703

7546707

$1.19

23

SLIDE ASM,HIGH/REV

3233217

Unavailable

24

SLIDE ASM,LOW

3233218

Unavailable

25

BODY,GEARSELECT

3233457

Unavailable

26

SCREW(10)

7515181

$2.38

27

PIN,INTERLOCK

3233070

Unavailable

28

INTERLOCK,BUTTERFLY

3233084

Unavailable

29

SCREW Substituted by 3233498

3233085

Unavailable
