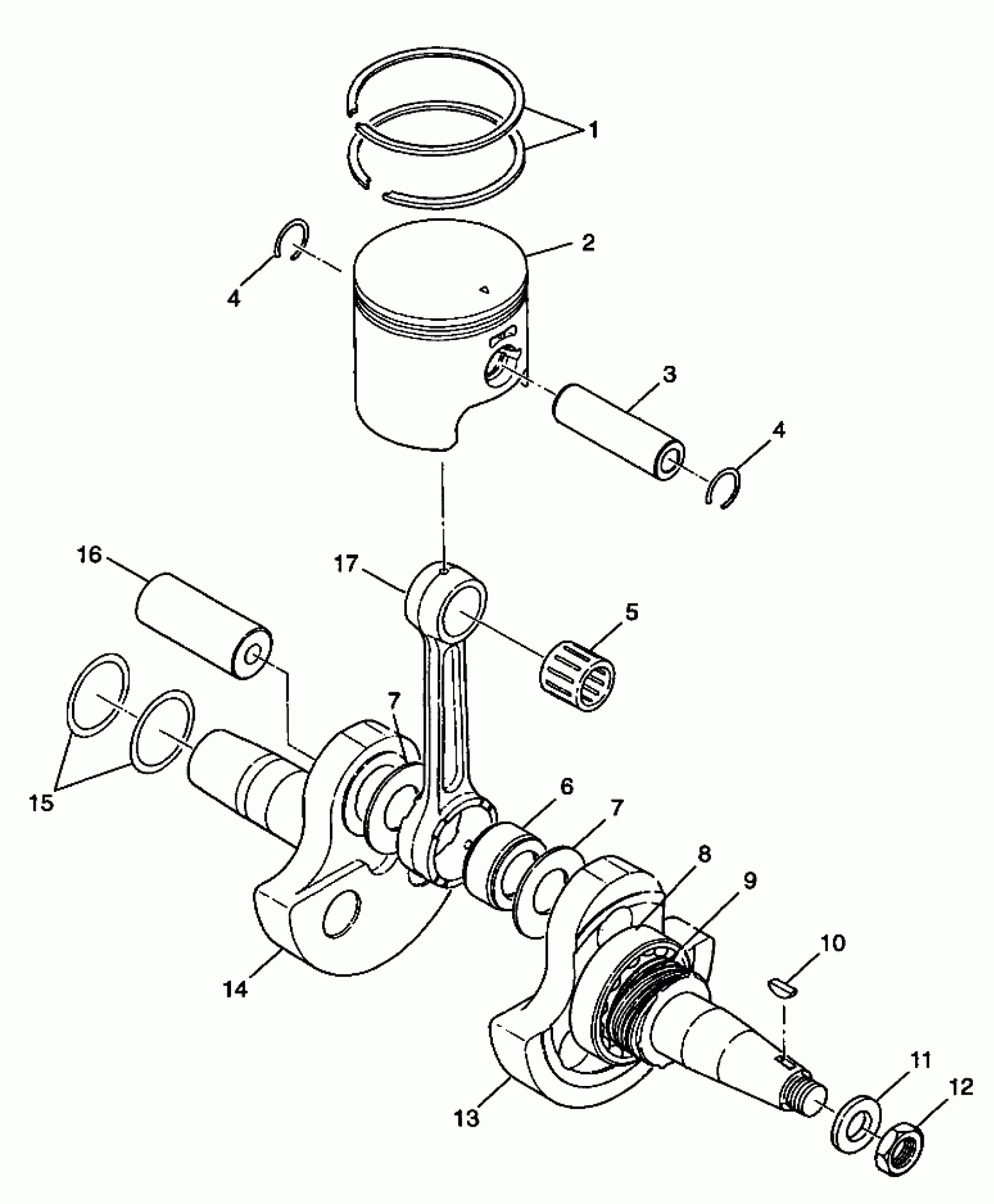

Polaris XPRESS 300 - W98CA28C CRANKSHAFT and PISTON XPRESS 300 W98CA28C (4945364536C011) Diagram

RING,PISTON,(.50MM O/S),(2) (.020"/0.50mm O/S)

3084811

Unavailable

RING,PISTON,(.25MM O/S),(2) (.010"/0.25mm O/S)

3084810

Unavailable

RING,PISTON,STD.(2) (Std)

3084809

Unavailable

PISTON,(.50MM O/S) Substituted by 3085896 (.020"/0.50mm O/S)

3085101

Unavailable

PISTON, STD. Substituted by 3085894 (Std)

3085099

Unavailable

PISTON,(.25MM O/S) Substituted by 3085895 (.010"/0.25mm O/S)

3085100

Unavailable

PIN, PISTON

3083858

$23.99

CLIP,(10)

3084167

$6.39

CLIP,(10)

3084167

$6.39

BEARING, SMALL END

3083626

Unavailable

BEARING,LGE.END

3083803

Unavailable

Spacer

3083804

$19.99

Spacer

3083804

$19.99

Bearing, Ball

3084580

$31.99

GEAR,CRANKSHAFT

3083745

Unavailable

KEY Substituted by 3081543

3080130

Unavailable

WASHER Substituted by 3086767

3083904

Unavailable

LOCKNUT

3083905

Unavailable

CRANKSHAFT ASM. (Incl. 6, 8, 9, 13, 14, 16, 17)

3084803

Unavailable

CRANKSHAFT #1

3084804

Unavailable

CRANKSHAFT #2

3084805

Unavailable

SPACER #2 Substituted by 3086766 (0.3mm)

3084779

Unavailable

SPACER #1 Substituted by 3086765 (0.2mm)

3084778

Unavailable

CRANK PIN PTO

3082796

$36.41

ROD CONNECTING

3082790

Unavailable
