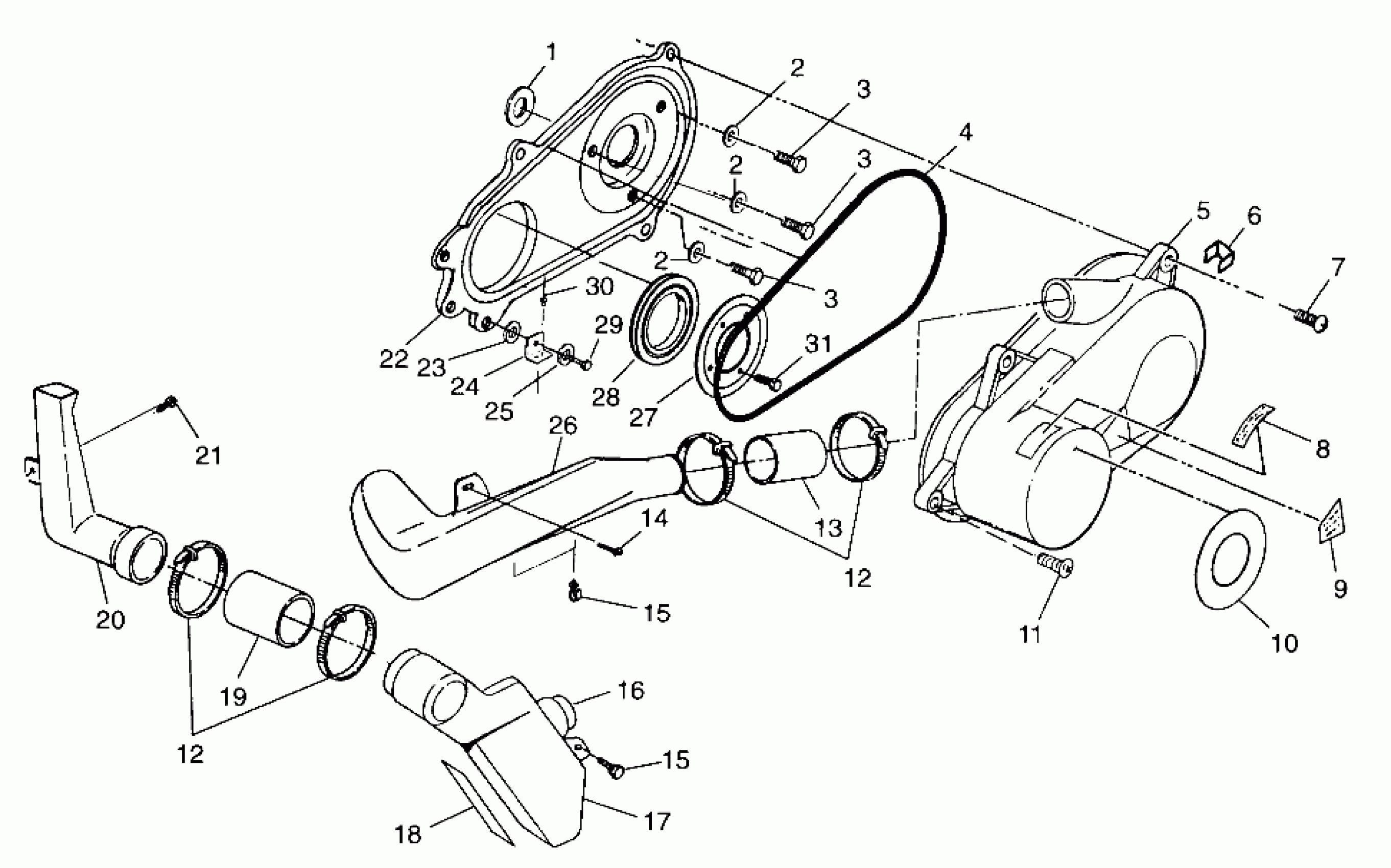

Polaris XPRESS 300 - W98CA28C CLUTCH COVER XPRESS 300 W98CA28C (4945364536C001) Diagram

#

Description
Price

1

SEAL,COVER CASE

5410489

$13.59

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

3

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

3

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

4

SEAL,CLUTCHCOVER

5521301

$30.88

5

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

6

CLIP,CLUTCH COVER(10)

7670051

$2.99

7

SCREW(10)

7512093

$1.49

8

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

9

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

10

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

11

SCREW(10)

7512094

$1.59

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

12

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

13

BOOT,CLUTCH INTAKE

5410421

$11.19

14

BOLT(10)

7512232

$1.49

15

CLIP,OIL LINE RET.(10)

5432302

Unavailable

15

CLIP,OIL LINE RET.(10)

5432302

Unavailable

16

CLAMP, NARROW BAND(10)

7080511

$4.79

17

DUCT,INLET DOWNTUBE,AIR

5432441

Unavailable

18

BOOT, INTAKE

5410509

$7.99

18

BOOT, INTAKE

5410509

$7.99

19

DUCT,INLET,TOP

5431794

Unavailable

20

SCREW(10)

7512084

$1.49

21

KIT,CVR,IN.CLUTCH (Incl. 6, 7, 28)

2200802

Unavailable

22

WASHER,NYLON

7555932

$2.39

23

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

24

WASHER(10)

7555935

$2.39

25

DUCT,AIR OUT,CLUTCH

5432649

Unavailable

26

BRKT,RETAINER SEAL

5222877-067

Unavailable

27

SEAL,COVER CASE

5410749

Unavailable

28

Screw

7512098

$1.59

29

RIVET,INTERLOCK,B(50)

7661638

$1.49

30

Asm., Screw and Washer (See Pg. A36, Ref. 27)

-------

Unavailable
