Description

Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

BOLT, WHEEL(10)

7512673

$3.17

3

BOLT, WHEEL(10)

7512673

$3.17

4

HUB, WHEEL Substituted by 2200341 (Incl. 11)

5130767

$93.08

4

HUB, WHEEL Substituted by 2200341 (Incl. 11)

5130767

$93.08

5

PUSHNUT, BOLT(10)

7670081

Unavailable

5

PUSHNUT, BOLT(10)

7670081

Unavailable

6

TIRE,R(24X11-10) (25X12X10)

5410479

Unavailable

7

CONNECTOR LINK

3225024

$24.27

8

WASHER(10)

7555745

Unavailable

8

WASHER(10)

7555745

Unavailable

9

VALVE-RIM

1525017

$6.46

9

VALVE-RIM

1525017

$6.46

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.94

11

WASHER, CONE(10)

7555796

$7.94

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.76

13

PIN, COTTER(10)

7661404

$4.76

14

DUSTCOVER, HUB

5411164

$28.32

14

DUSTCOVER, HUB

5411164

$28.32

15

CHAIN,DRIVE,86P Substituted by 3224056-086 (300) (Incl. 7)

3224046

$145.70

15

CHAIN, DRIVE, 84P Substituted by 3224056-084 (400) (Incl. 7)

3224047

$145.70

16

GUARD,38T SPKT,BLK.ALUM. (300)

5211585-067

Unavailable

16

GUARD,SPKT,34T (400)

5211617-067

Unavailable

17

NUT-LOCK(10)

7542439

$1.19

17

NUT-LOCK(10)

7542439

$1.19

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET, 38T (300)

3222065

$119.99

19

SPROCKET,34T,(ATV) (400)

3222068

$109.99

20

BOLT(10)

7515540

$4.76

21

SPROCKET HUB ASM. (Incl. 22)

1520170

Unavailable

22

STUD(10)

7515513

$1.19

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

25

Bearing, Ball

3515501

$27.78

25

Bearing, Ball

3515501

$27.78

26

TUBE,BEARING SPACER

5010204

Unavailable

27

HOUSING, AXLE

5130663

Unavailable

28

SPACER,BEARING

5010206

Unavailable

29

RING, SNAP(10)

7710405

$4.76

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

31

AXLE, REAR

5020789

Unavailable

32

RIM-REAR, 8.5/10,SILVER

1520183-117

Unavailable

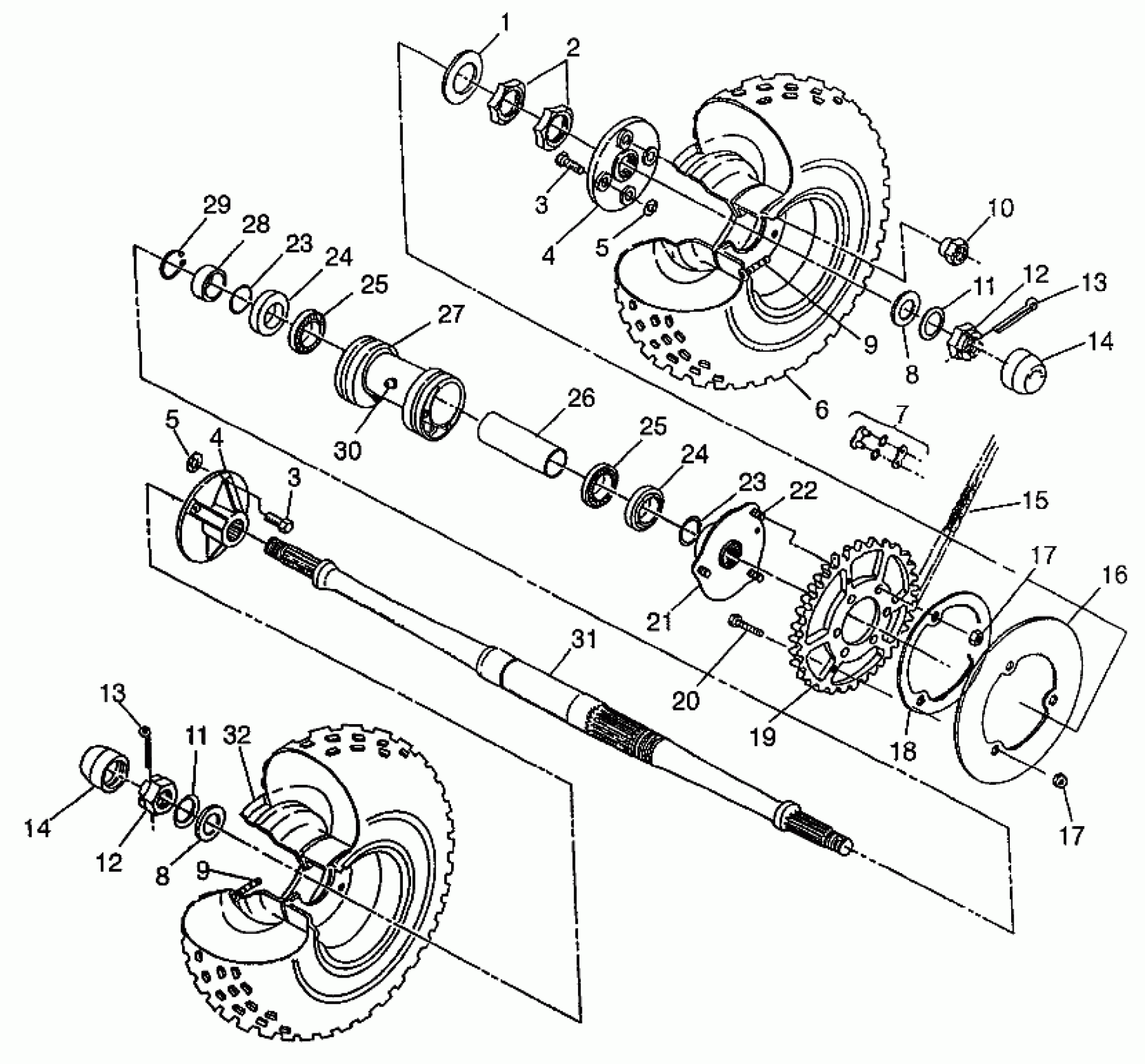

Polaris XPRESS 300 - W97CA28C REAR WHEEL DRIVE XPRESS 300 W97CA28C and XPRESS 400L W97CA38C (4939603960C011) Diagram

WASHER(10)

Nut, Jam

BOLT, WHEEL(10)

BOLT, WHEEL(10)

HUB, WHEEL Substituted by 2200341 (Incl. 11)

HUB, WHEEL Substituted by 2200341 (Incl. 11)

PUSHNUT, BOLT(10)

PUSHNUT, BOLT(10)

TIRE,R(24X11-10) (25X12X10)

CONNECTOR LINK

WASHER(10)

WASHER(10)

VALVE-RIM

VALVE-RIM

NUT, WHEEL(10)

WASHER, CONE(10)

WASHER, CONE(10)

NUT, CASTLE(10)

NUT, CASTLE(10)

PIN, COTTER(10)

PIN, COTTER(10)

DUSTCOVER, HUB

DUSTCOVER, HUB

CHAIN,DRIVE,86P Substituted by 3224056-086 (300) (Incl. 7)

CHAIN, DRIVE, 84P Substituted by 3224056-084 (400) (Incl. 7)

GUARD,38T SPKT,BLK.ALUM. (300)

GUARD,SPKT,34T (400)

NUT-LOCK(10)

NUT-LOCK(10)

SPACER-SPROCKET GUARD

SPROCKET, 38T (300)

SPROCKET,34T,(ATV) (400)

BOLT(10)

SPROCKET HUB ASM. (Incl. 22)

STUD(10)

O RING, 1 5/16(10)

O RING, 1 5/16(10)

SEAL, REAR AXLE

SEAL, REAR AXLE

Bearing, Ball

Bearing, Ball

TUBE,BEARING SPACER

HOUSING, AXLE

SPACER,BEARING

RING, SNAP(10)

FITTING,LUBE.W/BALL CK.(10)

AXLE, REAR

RIM-REAR, 8.5/10,SILVER
