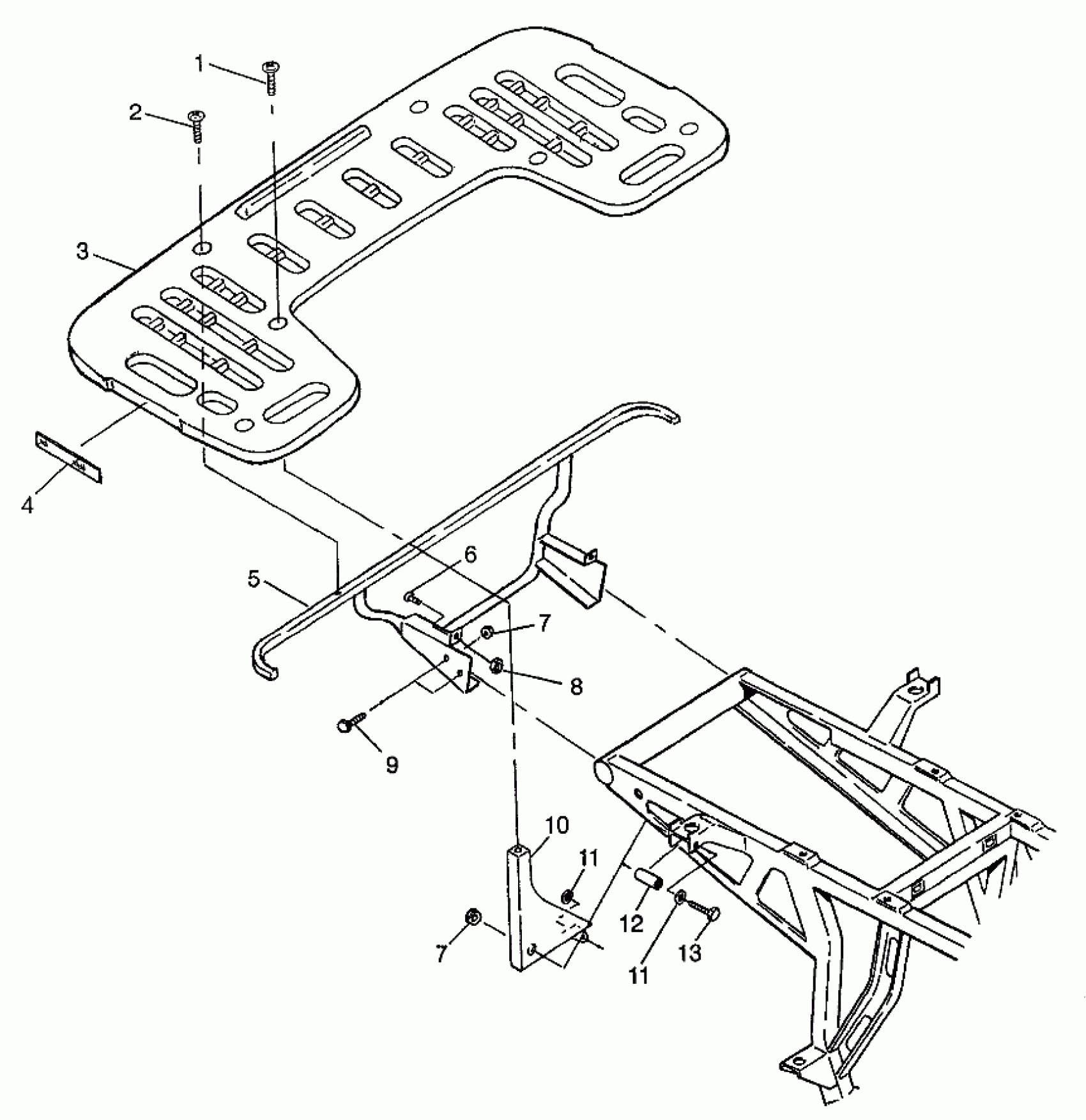

Polaris XPRESS 300 - W97CA28C REAR RACK MOUNTING XPRESS 300 W97CA28C and XPRESS 400L W97CA38C (4939603960A006) Diagram

#

Description
Price

1

SCREW(10)

7515193

Unavailable

2

SCREW(10) Substituted by 7517685

7515194

Unavailable

3

RACK ASM,REAR Substituted by 2670174-070 (Incl. 4 & Warning Decal)

2670174

Unavailable

4

REFLECTOR RED

2670070

$9.91

5

SUPPORT,R.RACK

1040380-067

Unavailable

6

Screw

7517264

$3.99

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

8

NUT-LOCK(10)

7542122

$1.49

9

SCREW(10)

7515398

$2.39

10

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

10

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

11

WASHER(10) Substituted by 7558402

7555770

Unavailable

11

WASHER(10) Substituted by 7558402

7555770

Unavailable

12

Spacer

5333332-067

$6.63

13

SCREW(10)

7515385

$5.59
