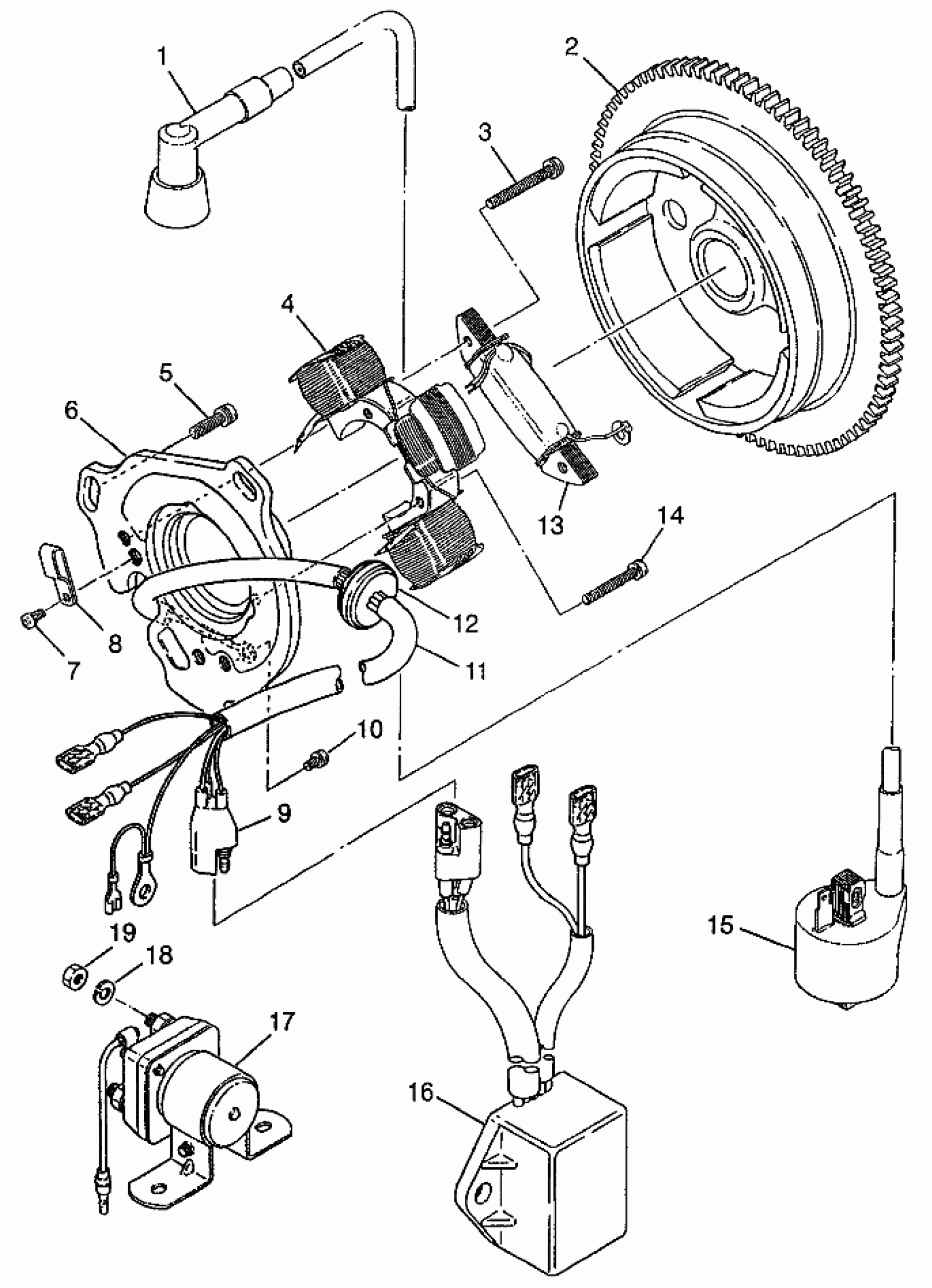

Polaris XPRESS 300 - W97CA28C MAGNETO (300) XPRESS 300 W97CA28C (4939603960D009) Diagram

#

Description
Price

1

CAP SPARK PLUG,(10)

4020129

$9.70

2

FLYWHEEL,W/RING GEAR

3084813

Unavailable

3

SCREW W/WASHER

3081253

Unavailable

4

STATOR #1

3084817

Unavailable

5

SCREW AND WASHER ASSY.(10)

3082226

$1.49

6

PLATE ASM. (Incl. 3, 4, 6-14)

3084814

$368.99

6

PLATE,COIL

3084815

Unavailable

7

SCREW

3081467

Unavailable

8

Clamp

3081296

Unavailable

9

COUPLER

3083909

$23.99

10

SCREW&WASHER,(10)

3081260

$3.19

11

HARNESS,WIRE (Incl. 9, 12)

3084816

Unavailable

12

GROMMET

3084819

Unavailable

13

Coil, Exciting

3083422

Unavailable

14

SCREW&WASHER ASM.

3084818

$1.75

15

COIL, IGNITION *

3083923

Unavailable

16

CDI SYSTEM

3084820

Unavailable

17

SWITCH,MAGNETIC *

3085521

$60.70

18

WASHER SPRING(10)

3080077

$2.39

19

Nut

3083073

$2.39
