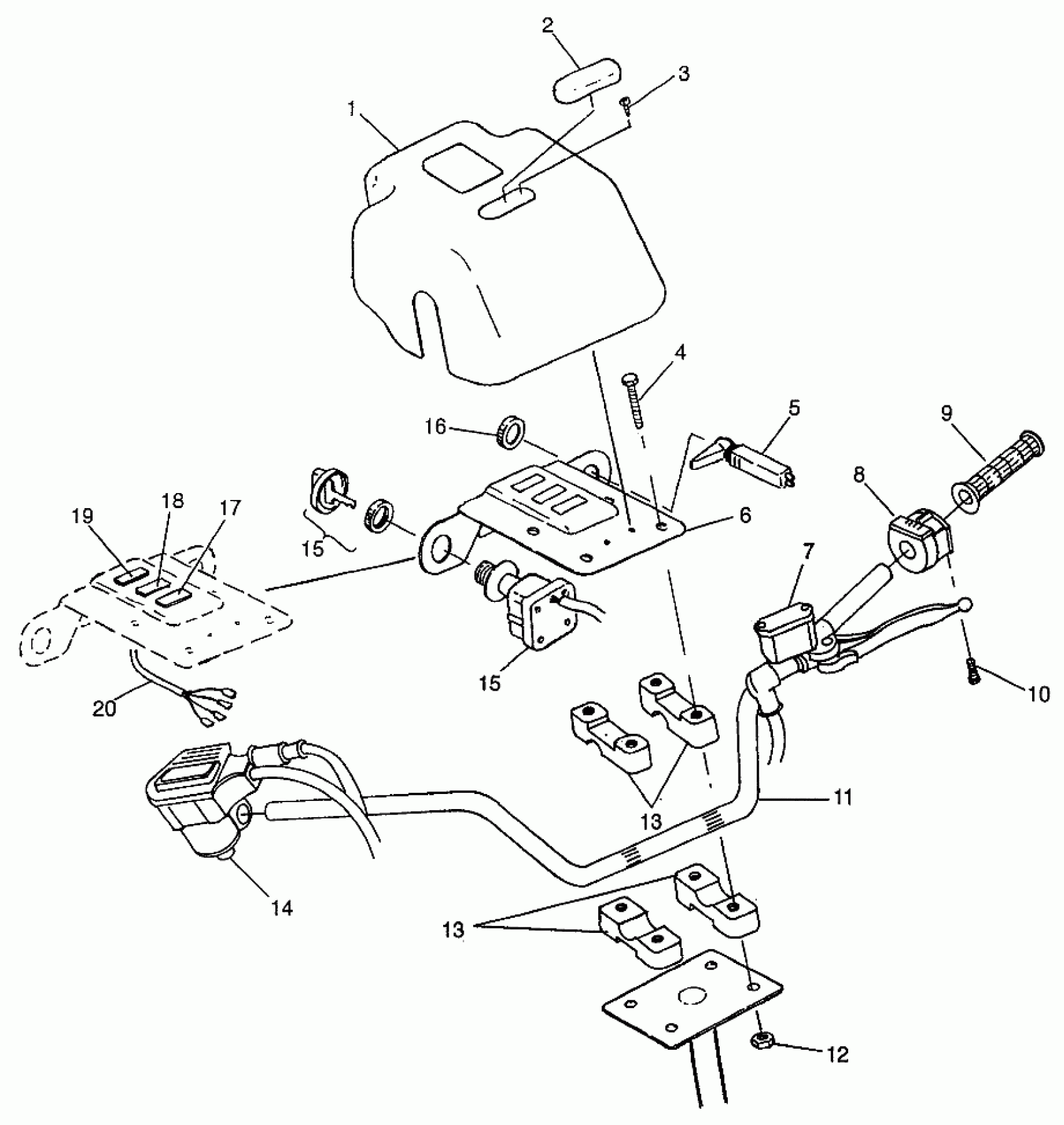

Polaris XPRESS 300 - W97CA28C HANDLEBAR (300) XPRESS 300 W97CA28C (4939603960B009) Diagram

#

Description
Price

1

PANEL,INST.,BLK

5432246-070

Unavailable

2

COVER-LOGO, BLK

5432247-070

Unavailable

3

SCREW,(10)

7512024

$4.79

4

Screw

7517216

Unavailable

5

KIT-CHOKE CONTROL

2200188

$24.27

5

CABLE,CHOKE CONTROL

7080579

$97.13

6

BRKT,INST.PANEL,BLK

5241397-067

$24.79

7

Asm., Master Cylinder (See Pg. A26 for Details)

-------

Unavailable

8

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

9

GRIP, HANDLEBAR

5431030

$24.27

10

SCREW

2010055

Unavailable

11

HANDLEBAR,TUBE,BLK

5224715-067

Unavailable

12

NUT-LOCK(10)

7542122

$1.49

13

BLOCK,H'BAR,(300)

5630629

$11.59

13

BLOCK,H'BAR,(300)

5630629

$11.59

14

THROTTLE CONTROL ASM

2010159

Unavailable

15

COVER, KEY Substituted by 5433534 NOTE: Ignition Key may be ordered by using the four digit number on the key

5431964

Unavailable

15

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

15

COVER, KEY Substituted by 5433534 NOTE: Ignition Key may be ordered by using the four digit number on the key

5431964

Unavailable

15

SWITCH, IGNITION (Incl. Key)

4110194

Unavailable

16

Nut

7080229

$19.99

17

PLUG,INDIC.HOLE

5430967

$5.65

18

INDIC"LOW OIL&HI-BEAM."

4040052

$31.99

19

INDIC"NEUT./REV."

4040054

$31.99

20

HARNESS,CONTROL PANEL

2460553

Unavailable
